ST Simplex Fiber Optic Adapter Plastic Housing Zirconia Ceramic Sleeve Low Loss

China ST Simplex Fiber Optic Adapter Plastic Housing Zirconia Ceramic Sleeve Low Loss supplier

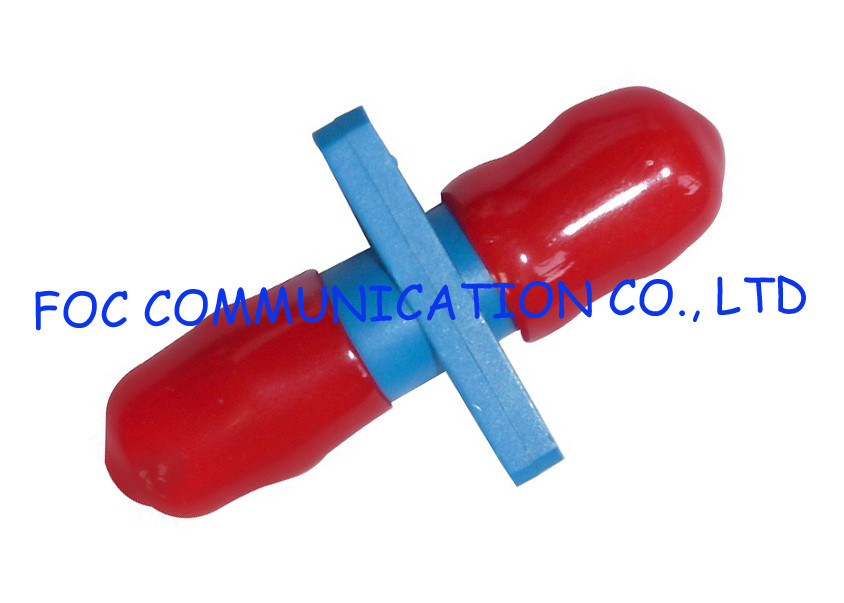

Large Image :  ST Simplex Fiber Optic Adapter Plastic Housing Zirconia Ceramic Sleeve Low Loss

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: ST Fiber Optic Adapter Simplex

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 50PCS/Blister Box
Supply Ability: 90000PCS/Month
Contact Now
Detailed Product Description
Sleeve Material: Zirconia Ceramic Sleeve Adapter: ST
Cores: Duplex Material: Plastic
Cap Color: Red Mode: Singlemode, Multimode

ST Simplex Fiber Optic Adapter Plastic Housing Zirconia Ceramic Sleeve Low Loss

FOC Communication Co., Ltd provides all types of fiber optic adapters, such as FC, SC, ST, LC, MTRJ, MU, MPO, E2000 fiber optic adapters and so on.



Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).



Fiber optic adapter provides the connection between the fiber optic patch cord or pigtails. Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).



Fiber Optic Adapter Specifications

Retention Force: 200 - 600 grams

Durability (500 Matings): 0.15dB max

Insertion loss (Typical/Max): 0.2dB/0.3dB

Operating temperature: -40 ~ +80℃

Storage temperature: -40 ~ +80℃



Fiber Optic Adapter Features

Ceramic Sleeve

PC and APC fiber stub port

Single mode and Multimode

Various Styles and Colors support

Good compatibility
High precision of dimensions

Good reliability & stability



Fiber Optic Adapter Applications

FTTH and FTTx
Active Device Termination
Testing Instruments

CATV Networks
Telecommunication Networks
Local Area Networks(LANS) and Wide Area Networks(WANS)



Ordering Information

Interface

Adapter Type

Color

Fiber Type

Cores

Sleeve

P-PC

FC-FC

B-Blue

SM

Simplex

Zirconia

A-APC

SC-SC

B-Beige

MM 50/125um

Duplex

Bronze



LC-LC

G-Green

MM 62.5/125um

4cores





ST-ST

X-Customized

MM OM3







MU-MU











MTRJ-MTRJ











E2000-E2000











Hyrbid











ST Simplex Fiber Optic Adapter Plastic Housing Zirconia Ceramic Sleeve Low Loss



Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
