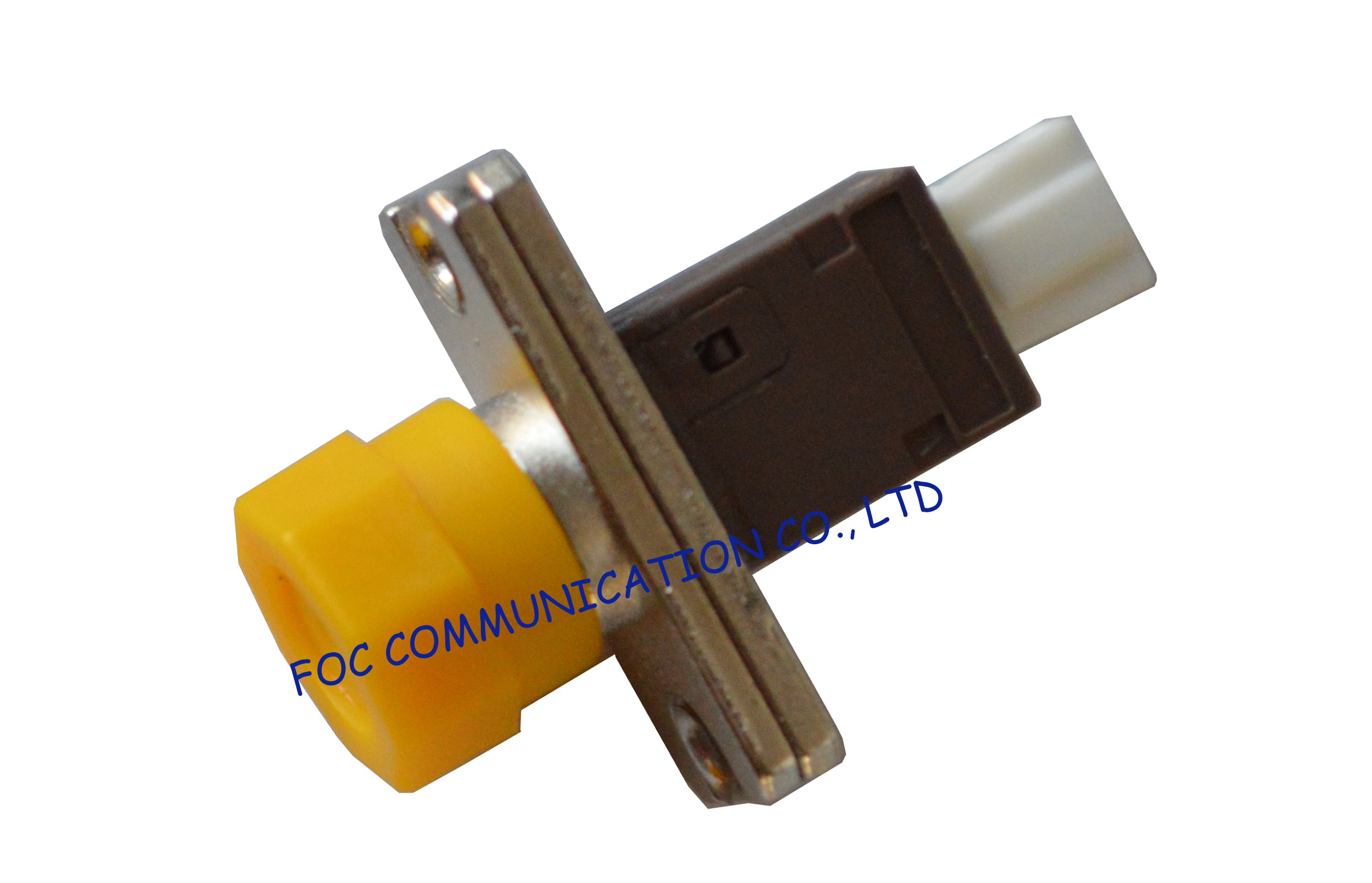

MU - FC and MU - SC Hybrid Fiber Optic Adapter for multimode or singlemode cables

MU - FC and MU - SC Hybrid Fiber Optic Adapter for multimode or singlemode cables

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: MU-FC and MU-SC Fiber Optic Adapter

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 50PCS/Blister Box
Supply Ability: 90000PCS/Month
Get Best Price Contact Now

Detail Information

Sleeve Material: Bronze Sleeve, Zirconia Ceramic Sleeve Adapter: FC, SC, ST, LC, MTRJ, MPO, E2000
Cores: Simplex, Duplex, Quad Material: Metal, Plastic
Cap Color: White, Red Mode: Singlemode, Multimode
High Light:

fiber optic cable adapter

,

fiber optic connector adapters

Product Description

Fiber Optic Adaptor MU-FC and MU-SC Hybrid for multimode or singlemode cables

MU Fiber optic adapter provides the connection between the fiber optic patch cord or pigtails. Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).

Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).



Fiber Optic Adapter Specifications

Insertion loss (Typical/Max): 0.2dB/0.3dB

Retention Force: 200 - 600 grams

Durability (500 Matings): 0.15dB max

Operating temperature: -40 ~ +80℃

Storage temperature: -40 ~ +80℃



Fiber Optic Adapter Features
Good compatibility
High precision of dimensions

Good reliability & stability

Zicornia Ceramic Sleeve

PC and APC fiber stub port

Single mode and Multimode

Various Styles and Colors support


Fiber Optic Adapter Applications

CATV Networks
Telecommunication Networks
Local Area Networks(LANS) and Wide Area Networks(WANS)
FTTH and FTTx
Active Device Termination
Testing Instruments



Ordering Information

Interface

Adapter Type

Color

Fiber Type

Cores

Sleeve

P-PC

FC-FC

B-Blue

SM

Simplex

Zirconia

A-APC

SC-SC

B-Beige

MM 50/125um

Duplex

Bronze



LC-LC

G-Green

MM 62.5/125um

4cores





ST-ST

X-Customized

MM OM3







MU-MU











MTRJ-MTRJ











E2000-E2000











Hyrbid











MU - FC and MU - SC Hybrid Fiber Optic Adapter for multimode or singlemode cables 0

Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
