FC Bare Fiber Optic Adaptor Enable Quick and Easy Temporary Connections
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | RoHS Compliant, ISO Certificate |
Model Number: | Bare Fiber Optic Adapter FC |
Payment & Shipping Terms:
Minimum Order Quantity: | 100PCS |
---|---|
Packaging Details: | 50PCS/Blister Box |
Supply Ability: | 90000PCS/Month |
Detail Information |
|||
Sleeve Material: | Zirconia Ceramic Sleeve | Adapter: | FC, SC, ST, LC |
---|---|---|---|
Material: | Metal, Plastic | Mode: | Singlemode, Multimode |
High Light: | fiber optic adaptor,fiber optic connector adapters |
Product Description

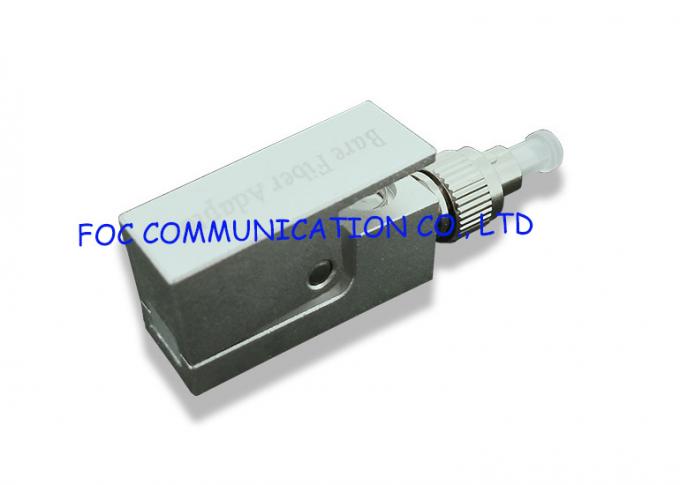

FC Bare Fiber Optic Adapter Enable Quick and Easy Temporary Connections
Bare fiber adaptors provide a simple and effective way to use unterminated fibers with commercial receptacles. Simply strip, clean and cleave your fiber and insert into the bare fiber adaptor. They are recommended for power meter connections, temporary system repairs or wherever a quick fiber connection is required.
Bare Fiber Adapters are used as a medium to connect bare fiber to your fiber optics equipment. These adapters were designed with speed in mind, and are traditionally used for power meter hookups, temporary repairs, or quick fiber connections. These come with a low insertion loss and high quality polish.
Features
- Easy to use
- Low cost
- Reusable and easy to clean
- Variety of connector types (FC, SMA, LC, ST, SC, E2000)
- Variety of fiber sizes available
- 900 micron tight buffer versions available
Applications
- Briefly connect to Light Sources, Power Meters, OTDRs, Extinction Ratio Meters, and a variety of other equipment for testing and measurement
- Test unterminated fiber and fiber spools
- Installation and repair work
Operating Instruction
- If you are using the bare fiber adaptor with unjacketed fiber, proceed to step. If you are using cabled fibers, strip at least 3 inches of the cable’s outer jacket and cut away the exposed strength members (usually Kevlar fibers near the stripped edge).
- Strip a sufficient amount of the buffer to allow for fiber insertion. The length of buffer stripped should be approximately 15 mm to 20 mm.
- Clean the exposed cladding with acetone and/or isopropyl alcohol (reagent grade).
- a. Magnetic clamp: Flip open the magnetic clamp. Push the stripped fiber through until the buffer stops the fiber. At this point flip shut the magnetic clamp to hold the fiber in place.
- b. Spring clamp: Depress the spring-loaded buffer clamping mechanism and insert the stripped fiber into the acceptance hole. Push the stripped fiber through until the buffer stops the fiber. At this point release the buffer clamping mechanism, to hold the fiber in place.
- Use a cleaving pen to gently score the fiber as close to the ferrule end as possible. (See Figure 2) Note: If the fiber breaks during the scoring process, it means that the score was too deep, which will result in a poor fiber end face and high losses.
- Pull the scored fiber directly up. The scored fiber should separate cleanly at the score point. Note: Always pull the fiber directly up. Failure to do so will result in a poor fiber end face and high losses.
- Inspect the end face with an eye loupe and if necessary, adjust the fiber until it is flush.
- The fiber is now ready for use. Insert the adaptor into the optical test equipment’s receptacle.
