LC / APC Duplex Fiber Optic Adapter Low Insertion Loss For Fiber Optic Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | LC/APC Simplex and Duplex Fiber Optic Adapter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 50PCS/Blister Box |
| Supply Ability: | 90000PCS/Month |
|
Detail Information |
|||
| Sleeve Material: | Bronze Sleeve, Zirconia Ceramic Sleeve | Adapter: | FC, SC, ST, LC, MTRJ, MPO, E2000 |
|---|---|---|---|
| Cores: | Simplex, Duplex, Quad | Material: | Metal, Plastic |
| Cap Color: | White, Red | Mode: | Singlemode, Multimode |
| High Light: | fiber optic cable adapter,fiber optic connector adapters |
||
Product Description

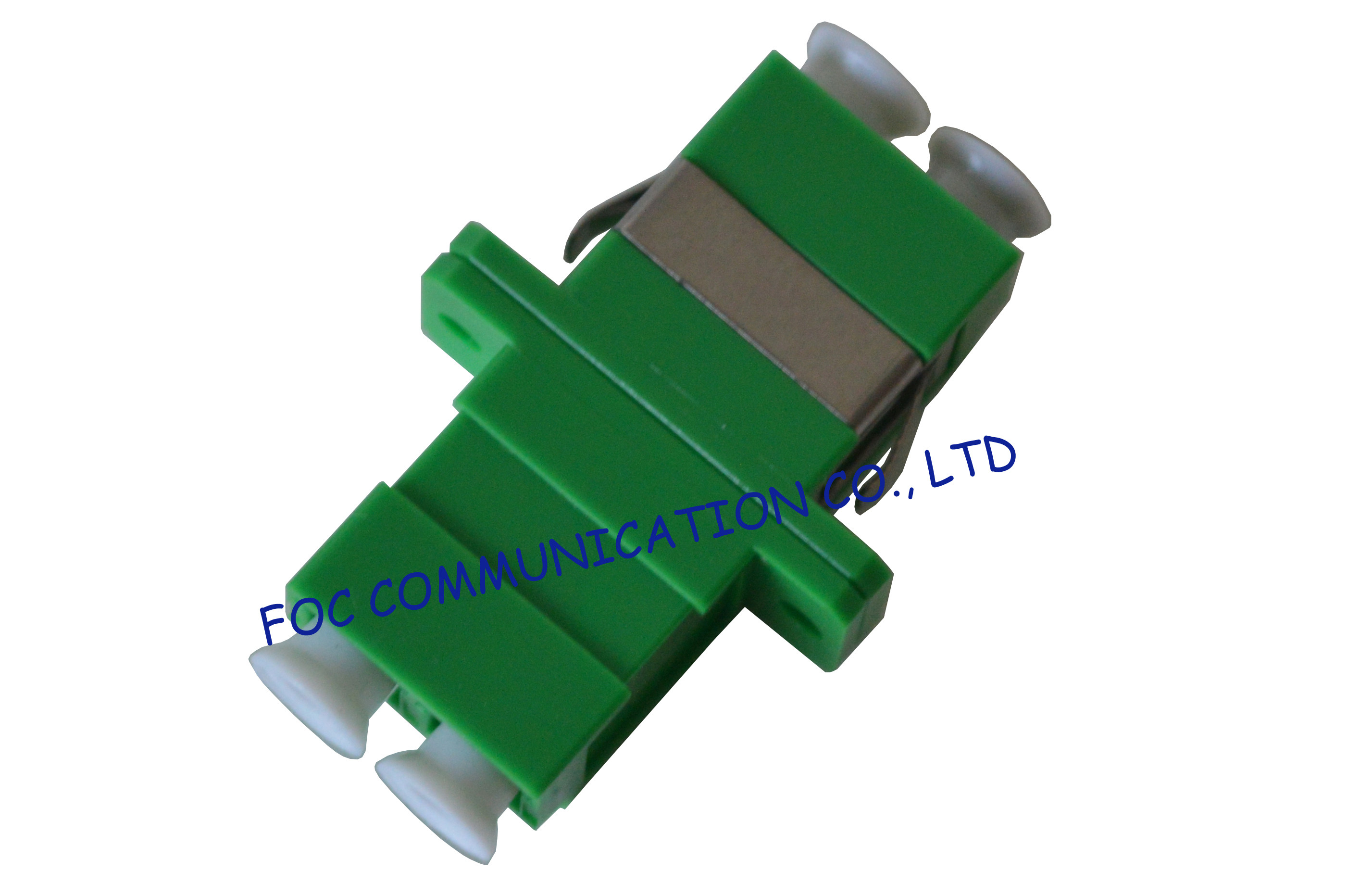

LC / APC Fiber Optic Adapter Low Insertion Loss For Fiber Optic Devices
LC adapters come with simplex, duplex, and quad ports, even when the SC adapter is cut out. Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type optical fiber connectors. The devices are designed and manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.
Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. They come in various types, most adapters are female on both ends to connect two patch cables, while some adapters are male to female which allow the port to accept a different connector than for which it was originally designed, and we also assemble hybrid adapters which accept different types of connects.
Features
Meet IEC, Telcordia-GR-326 performance requirement
High precision alignment sleeve
Materials compliant to RoHS
100% inspected prior to shipment
Available in various colors
Available in flanged and flangeless options
Applications
FTTH and FTTx
Active Device Termination
Testing Instruments
CATV Networks
Telecommunication Networks
Local Area Networks(LANS) and Wide Area Networks(WANS)
Ordering Information
|
Interface |
Adapter Type |
Color |
Fiber Type |
Cores |
Sleeve |
|
P-PC |
FC-FC |
B-Blue |
SM |
Simplex |
Zirconia |
|
A-APC |
SC-SC |
B-Beige |
MM 50/125um |
Duplex |
Bronze |
|
|
LC-LC |
G-Green |
MM 62.5/125um |
4cores |
|
|
|
ST-ST |
X-Customized |
MM OM3 |
|
|
|
|
MU-MU |
|
|
|
|
|
|
MTRJ-MTRJ |
|
|
|
|
|
|
E2000-E2000 |
|
|
|
|
|
|
Hyrbid |
|
|
|
|
