FC Male to LC Female Hybrid Fiber Optic Adapter , optical fiber coupler Telecom Use
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | FC-LC Male to Female Fiber Optic Adapter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 50PCS/Blister Box |
| Supply Ability: | 90000PCS/Month |
|
Detail Information |
|||
| Sleeve Material: | Zirconia Ceramic Sleeve | Adapter: | FC-LC |
|---|---|---|---|
| Cores: | Simplex | Material: | Plastic |
| Cap Color: | White | Mode: | Singlemode |
| High Light: | fiber optic adaptor,fiber optic connector adapters |
||
Product Description

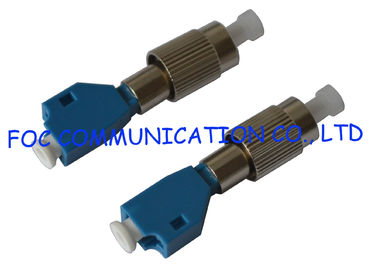

Fiber Optic Coupler FC Male to LC Female Hybrid Adapter Telecom Use
FC-LC fiber optic coupler male to female is also used to connect fiber-optic cables together. It offers a solution for hybrid applications where the two different kinds of fiber optic connectors or cable assemblies need to be connected with each other. The main function of hybrid fiber optic adapter is for connection between various different fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.
Male to female fiber optic adapter provides reliable solution for fiber connections and meet the market requirement. SC-FC, SC-LC, FC-ST, E2000-SC, and other types are all available.
Features
Used for connecting and coupling of the fiber optical connector
Low insertion loss and high return loss
High precision mechanical dimensions
High performance and reliability
Applications
Optical Distribution Frame
Fiber Optic Instruments
Fiber Optic Communication System Interface
Fiber Instrument
Fiber LAN, Wide Area Networks
Specifications
|
Adapter Type |
SC-LC, FC-LC, ST-LC, FC-ST, SC-ST, FC-SC |
|
|
UPC |
APC |
|
|
Insertion Loss |
≤0.2dB |
|
|
Cores |
Simplex, Duplex, Quad |
|
|
Durability |
≤0.2dB(1000 matings) |
|
|
Interchangeability |
≤0.2dB |
|
|
Operating Temperature |
-40℃～+80℃ |
|
Ordering Information
|
Cores Count |
SX= Simplex, DX=Duplex, Quad |
|
Type |
UPC, APC |
|
Material |
Plastic, Metal |
|
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, X=Others |
Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
