Hybrid Fiber Optic Adapter LC - ST Multimode Male to Female adapter
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | LC-ST Male to Female Fiber Optic Adapter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 50PCS/Blister Box |
| Supply Ability: | 90000PCS/Month |
|
Detail Information |
|||
| Sleeve Material: | Bronze Sleeve, Zirconia Ceramic Sleeve | Adapter: | FC, SC, ST, LC, MTRJ, MPO, E2000 |
|---|---|---|---|
| Cores: | Simplex, Duplex, Quad | Material: | Metal, Plastic |
| Cap Color: | White, Red | Mode: | Singlemode, Multimode |
| High Light: | fiber optic cable adapter,fiber optic adaptor |
||
Product Description

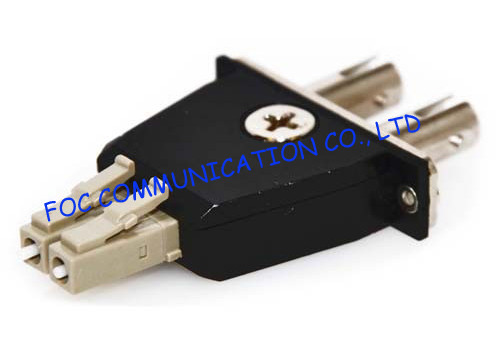

Hybrid Fiber Optic Adapter LC - ST Multimode Male to Female adapter
Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).
Fiber optic adapter LC - ST hybrid male to female provides the connection between the fiber optic patch cord or pigtails. Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).
Fiber Optic Adapter Specifications
Insertion loss (Typical/Max): 0.2dB/0.3dB
Durability (500 Matings): 0.15dB max
Retention Force: 200 - 600 grams
Operating temperature: -40 ~ +80℃
Storage temperature: -40 ~ +80℃
Fiber Optic Adapter Features
Zicornia Ceramic Sleeve
PC and APC fiber stub port
Single mode and Multimode
Various Styles and Colors support
Good compatibility
High precision of dimensions
Good reliability & stability
Fiber Optic Adapter Applications
CATV Networks
Telecommunication Networks
Local Area Networks(LANS) and Wide Area Networks(WANS)
FTTH and FTTx
Active Device Termination
Testing Instruments
Ordering Information
|
Interface |
Adapter Type |
Color |
Fiber Type |
Cores |
Sleeve |
|
P-PC |
FC-FC |
B-Blue |
SM |
Simplex |
Zirconia |
|
A-APC |
SC-SC |
B-Beige |
MM 50/125um |
Duplex |
Bronze |
|
|
LC-LC |
G-Green |
MM 62.5/125um |
4cores |
|
|
|
ST-ST |
X-Customized |
MM OM3 |
|
|
|
|
MU-MU |
|
|
|
|
|
|
MTRJ-MTRJ |
|
|
|
|
|
|
E2000-E2000 |
|
|
|
|
|
|
Hyrbid |
|
|
|
|
Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
