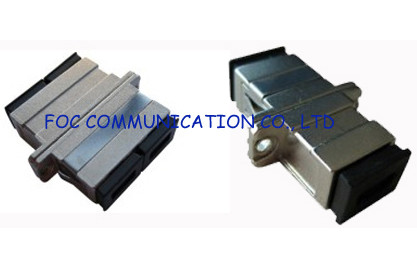

Simplex Metal Sc Fiber Adapter To Fiber Optic Devices , Good Compatibility
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | RoHS Compliant, ISO Certificate |
Model Number: | SC Metal Fiber Optic Adapter |
Payment & Shipping Terms:
Minimum Order Quantity: | 100PCS |
---|---|
Packaging Details: | 50PCS/Blister Box |
Supply Ability: | 90000PCS/Month |
Detail Information |
|||
Sleeve Material: | Bronze Sleeve, Zirconia Ceramic Sleeve | Adapter: | FC, SC, ST, LC, MTRJ, MPO, E2000 |
---|---|---|---|
Cores: | Simplex, Duplex, Quad | Material: | Metal, Plastic |
Cap Color: | White, Red | Mode: | Singlemode, Multimode |
High Light: | fiber optic cable adapter,fiber optic connector adapters |
Product Description
Simplex Metal Sc Fiber Adapter To Fiber Optic Devices , Good Compatibility
Fiber optic adapter provides the connection between the fiber optic patch cord or pigtails. Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).
Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).
Fiber Optic Adapter Specifications
Insertion loss (Typical/Max): 0.2dB/0.3dB
Retention Force: 200 - 600 grams
Durability (500 Matings): 0.15dB max
Operating temperature: -40 ~ +80℃
Storage temperature: -40 ~ +80℃
Fiber Optic Adapter Features
Good compatibility
High precision of dimensions
Good reliability & stability
Zicornia Ceramic Sleeve
PC and APC fiber stub port
Single mode and Multimode
Various Styles and Colors support
Fiber Optic Adapter Applications
CATV Networks
Telecommunication Networks
Local Area Networks(LANS) and Wide Area Networks(WANS)
FTTH and FTTx
Active Device Termination
Testing Instruments
Ordering Information
Interface |
Adapter Type |
Color |
Fiber Type |
Cores |
Sleeve |
P-PC |
FC-FC |
B-Blue |
SM |
Simplex |
Zirconia |
A-APC |
SC-SC |
B-Beige |
MM 50/125um |
Duplex |
Bronze |
|
LC-LC |
G-Green |
MM 62.5/125um |
4cores |
|
|
ST-ST |
X-Customized |
MM OM3 |
|
|
|
MU-MU |
|
|
|
|
|
MTRJ-MTRJ |
|
|
|
|
|
E2000-E2000 |
|
|
|
|
|
Hyrbid |
|
|
|
|
