FC / APC Fiber Optic Adapter
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | RoHS Compliant, ISO Certificate |
Model Number: | FC/APC Fiber Optic Adapter |
Payment & Shipping Terms:
Minimum Order Quantity: | 100PCS |
---|---|
Packaging Details: | 50PCS/Blister Box |
Supply Ability: | 90000PCS/Month |
Detail Information |
|||
Sleeve Material: | Bronze Sleeve, Zirconia Ceramic Sleeve | Adapter: | FC, SC, ST, LC, MTRJ, MPO, E2000 |
---|---|---|---|
Cores: | Simplex, Duplex, Quad | Material: | Metal, Plastic |
Cap Color: | White, Red | Mode: | Singlemode, Multimode |
High Light: | fiber optic cable adapter,fiber optic connector adapters |
Product Description

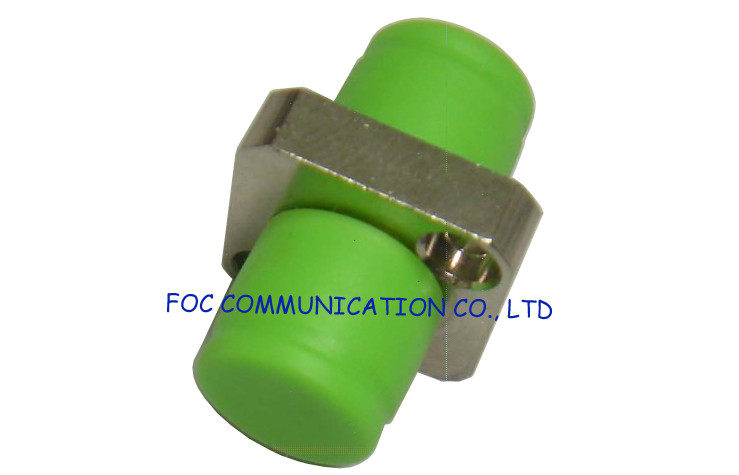

FC / APC Fiber Optic Adapter Low Insertion Loss RoHS Compliant For Telecom
Fiber optic adapter is a small device used to connect fiber-optic cables together. It is one of the most commonly used and very necessary product used in the fiber optic network, main function of fiber optic adaptor is for connection between various fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.
Fiber optic adapter provides reliable solution for fiber connections and meet the market requirement.SC, FC, LC, ST, SMA, E2000, MPO, MTRJ or hybrid adapter types are all available.
FC adapters are with metal housing, single-mode FC adapters are with zirconia sleeves, multi-mode FC adapters can be with bronze sleeves. FC square type, long square type, big D type or small D type adapter can be provided as per the customer request.
Features
High precision of dimensions
Good reliability & stability
Ceramic Sleeve
PC and APC fiber stub port
Single mode and Multimode
Various Styles and Colors support
Applications
CATV Networks
Telecommunication Networks
Local Area Networks (LANS) and Wide Area Networks(WANS)
FTTH and FTTx
Active Device Termination
Testing Instruments
Specifications
Adapter Type |
SC, FC, LC, ST, SMA, E2000, MPO, MTRJ |
Insertion loss |
< 0.2dB |
Repeatability |
< 0.2dB |
Exchangeability |
< 0.2dB |
Durability Time |
>1000 times |
Operating temperature |
-40 ~ +80℃ |
Storage temperature |
-40 ~ +80℃ |
Ordering Information
Cores Count |
SX= Simplex, DX=Duplex, Quad |
Type |
UPC, APC |
Material |
Plastic, Metal |
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, X=Others |
Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
