Metal Housing RoHS st fiber connector For Fiber Optical Communication System
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certificate, RoHS Compliant |
| Model Number: | ST Fiber Optic Connector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100PCS/Bag |
| Supply Ability: | 900000PCS/Month |
|
Detail Information |
|||
| Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm | Connector: | FC, SC, ST, LC, SMA, E2000, MPO, MTRJ |
|---|---|---|---|
| Polishing Type: | UPC, APC | Cores: | Simplex, Duplex |
| Fiber: | SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4 | Material: | Plastic Housing, Metal Housing |
| High Light: | fiber optic cable connectors,duplex fiber optic connector |
||
Product Description

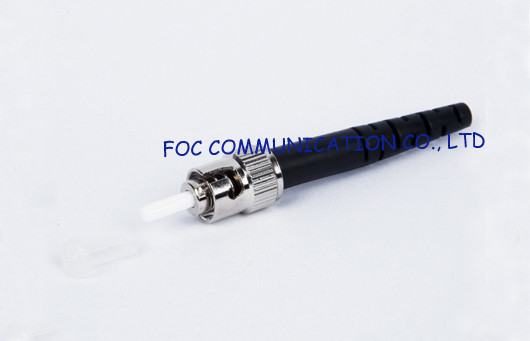

Metal Housing RoHS st fiber connector For Fiber Optical Communication System
Fiber Optic Connector is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.
There are single mode and multimode connectors. According to the shape of fiber optic connectors, there are FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN and so on.
Material
Cores: simplex, multi core pigtails(6pack, 8pack, 12pack, 24pack, 48pack)
Cable Jacket: PVC, LSZH, OFNR, OFNP
Cable outer diameter: 0.9mm, 2.0mm, 3.0mm
Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4
Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN
Endface type: UPC, APC
Features
Using High precision ferrule
Low insertion loss
High return loss
Excellent repeatability
Compact and anti-pull design
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors
Applications
Local area networks, wide area networks
Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection
Premise Installations
Telecommunication Networks
Fiber to the home
SPECIFICATIONS
|
Type |
Single Mode (typical) |
Single Mode (maximum) |
Multimode(maximum) |
|
Insertion Loss |
≤0.2dB |
≤0.3dB |
≤0.3dB |
|
Return Loss |
≥55dB |
≥50dB |
≥25dB |
|
Operating Temperature |
-40℃ to +80℃ |
-40℃ to +80℃ |
-40℃ to +80℃ |
Ordering Information
|
Cores Count |
01=simplex, 02=duplex |
|
Fiber Type |
1=G652D, 2=G657A, 3=OM3,50/125um 4=OM4 5=OM1, 62.5/125um, 6=OM2, 62.5/125um |
|
Cable Outer Diameter |
L=900µm Loose or tight tube, S=2.0mm, R=3.0mm, X=others |
|
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
