Precision Field Assembly Connector LC Fiber Optic Connector for FTTx
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certificate, RoHS Compliant |
| Model Number: | SC/APC Field Installable Fast Connector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100PCS/Bag |
| Supply Ability: | 900000PCS/Month |
|
Detail Information |
|||
| Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm Or Drop Cable 3.0*2.0mm | Connector: | FC, SC, LC |
|---|---|---|---|
| Polishing Type: | UPC, APC | Cores: | Simplex |
| Fiber: | SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4 | Material: | Plastic Housing, Metal Housing |
| High Light: | fiber optic cable connectors,duplex fiber optic connector |
||
Product Description

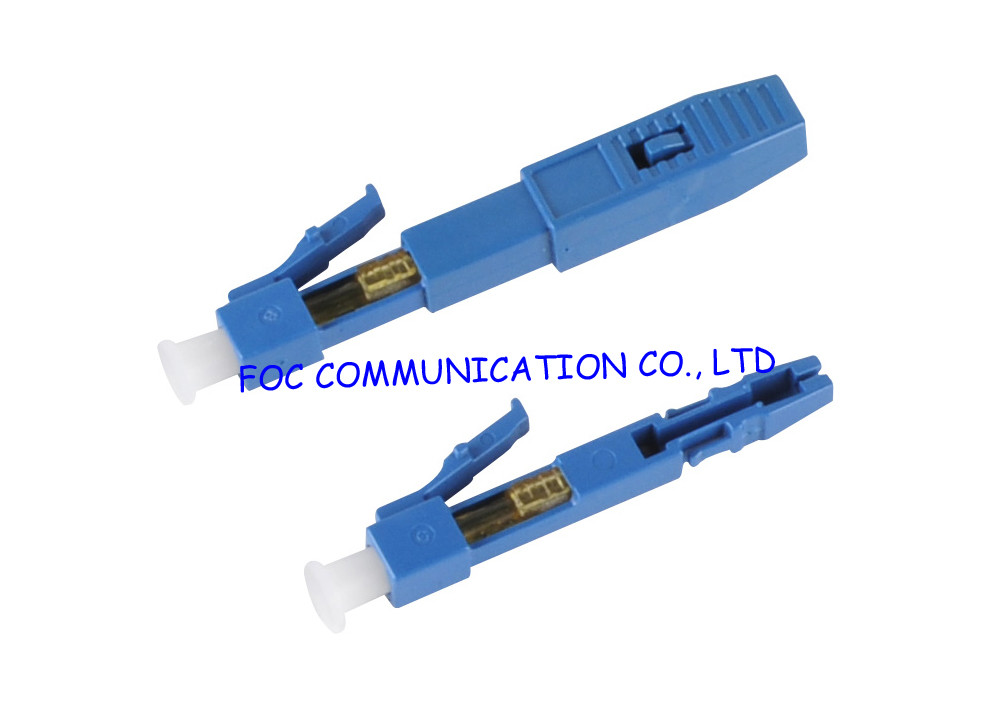

Field Assembly Connector LC Fiber Optic Connector for FTTx
Field assembly connectors LC are factory pre-polished, field-installable connectors for fast, reliable termination of multimode and singlemode fiber optic cable. The precision design and pre-cleaved fiber stub with index-matching gel ensure optimum fiber alignment and a reliable low-loss connection. Quick LC Connectors are available as multimode and singlemode versions.
The LC fast field installable connectors make a fiber optic deployment easier and decrease significantly the operational costs. They reduce the time for implementation thanks to a no epoxy and no polishing technology.
Field Assembly Connector is a perfect solution for field working in FTTH connection, as it enables quick assembling in field with stable performance. It facilitates field engineers to install, maintain and repair the FTTH networks and indoor terminal in a highly efficient and convenient manner.
Features
- Polished connector incorporating a mechanical splice
-
Precision mechanical dimension
-
Fast, easy to installation
-
No polish required
-
No Epoxy required
-
Reusable
-
Low insertion loss
-
Ultra low back reflection
-
For 3.0mm, 2.4mm, 2.0mm optical cable and ftth drop cable.
Applications
- Fibre to the Subscriber (FTTx) applications
- Optical cable interconnection
- Maintenance or emergency restoration of fiber networks
- Repair/replacement requirements
- Fiber optic equipment
- Telecommunication networks
- Fiber optic communication system
- Fiber optic data transmission
- CATV
- Optical access network
Specifications
| Fiber Diameter | 125um |
| Fiber Cable Type | 2.0mm, 3.0mm drop cable & 0.9mm tight buffer |
| Coupling type | Snap, Push Pull Type |
| Tight Buffer Diameter | 250um |
| Fiber Mode | Single Mode |
| Insertion Loss | 0.3dB Typical |
| Return Loss | APC >65dB |
| Temperature | -40℃ to +85℃ |
| Color | Blue |
