SC APC Fiber Optic Connector Quick Connector For FTTx Field Installable
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certificate, RoHS Compliant |
| Model Number: | SC/APC Field Installable Fast Connector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100PCS/Bag |
| Supply Ability: | 900000PCS/Month |
|
Detail Information |
|||
| Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm Or Drop Cable 3.0*2.0mm | Connector: | FC, SC, LC |
|---|---|---|---|
| Polishing Type: | UPC, APC | Cores: | Simplex |
| Fiber: | SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4 | Material: | Plastic Housing, Metal Housing |
| High Light: | fiber optic cable connectors,duplex fiber optic connector |
||
Product Description

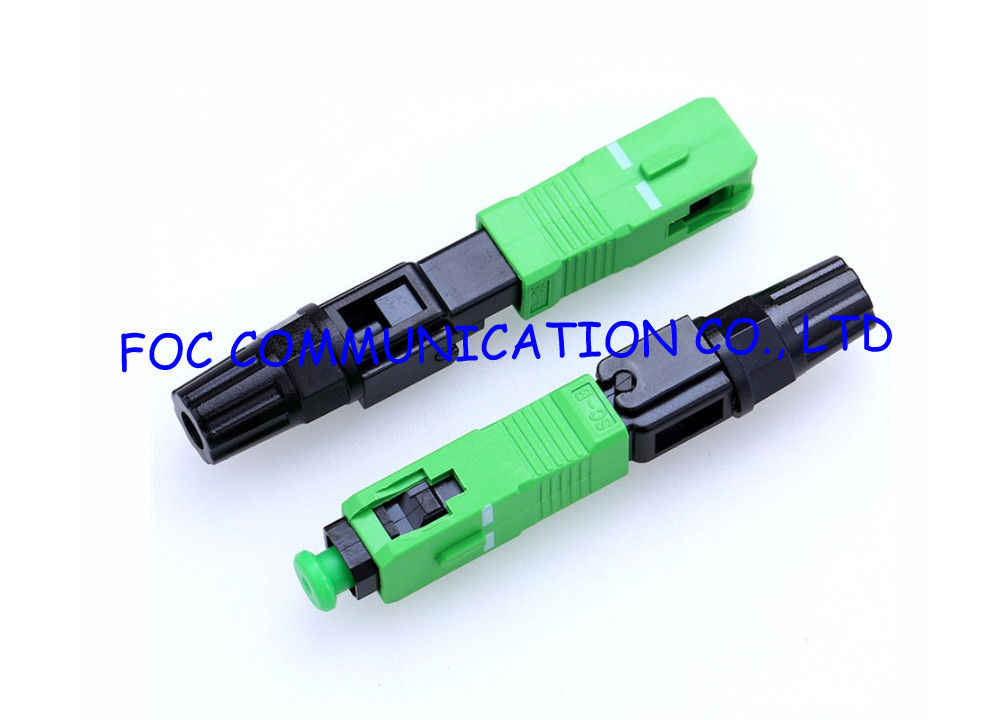

SC APC Fiber Optic Fast Connector Quick Connector For FTTx Field Installable
SC/APC fiber optic fast onnectors are pre-polished, field installable connectors that eliminate the need for hand polishing in the field. Optical fiber fast connectors provide an immediate termination to either singlemode or multimode fibers and are color-coded for ease of fiber identification. Connectors for Laser Optimized 50um (10G) fibers are also available.
SC/APC fiber optic fat connectors feature a pre-stubbed factory-polished ferrule that couples to the fiber being terminated. Precision mechanical alignment insures low loss with a proprietary gel. No special assembly tools required!
Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed.
Features
- Packaging comes with a cable/buffer stripping template
- Complies with IEC, EIA/TIA or Telecordia standards
- Fibre preparation kit available
- Polished connector incorporating a mechanical splice
- Available in singlemode and multimode (50/125 and 62.5/125)
- Durable, reliable and superior optical performance
- Compatible with standard SC adaptors
- Available for 250μm, 900μm, 2mm, 3mm and 2x3mm cables
- Termination can be repeated 2-3 times
Applications
- Rapid repair of optical networks
- FTTH end user termination
- Hazardous environment termination where fusion splicing is prohibited
-
Using proper cleave process
- Optical cable interconnection
- Maintenance or emergency restoration of fiber networks
- Repair/replacement requirements
- Fiber optic equipment
- Telecommunication networks
- Fiber optic communication system
- Fiber optic data transmission
- CATV
- Optical access network
Specifications
| Fiber Diameter | 125um |
| Fiber Cable Type | 2.0mm, 3.0mm drop cable & 0.9mm tight buffer |
| Coupling type | Snap, Push Pull Type |
| Tight Buffer Diameter | 250um |
| Fiber Mode | Single Mode |
| Insertion Loss | 0.3dB Typical |
| Return Loss | APC >65dB |
| Temperature | -40℃ to +85℃ |
| Color | Green |
