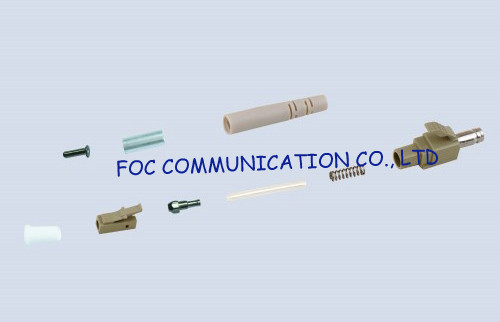

0.9mm LC Fiber Optic Connector Multimode And Singlemode Simplex For CATV and WAN
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certificate, RoHS Compliant |
| Model Number: | LC/UPC Multimode Fiber Optic Connector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100PCS/Bag |
| Supply Ability: | 900000PCS/Month |
|
Detail Information |
|||
| Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm | Connector: | FC, SC, ST, LC, SMA, E2000, MPO, MTRJ |
|---|---|---|---|
| Polishing Type: | UPC, APC | Cores: | Simplex, Duplex |
| Fiber: | SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4 | Material: | Plastic Housing, Metal Housing |
| High Light: | duplex fiber optic connector,simplex fiber optic connector |
||
Product Description
0.9mm LC Fiber Optic Connector Multimode And Singlemode Simplex For CATV and WAN
The LC family of single mode and multimode connectors, adapters and associated components are known as lucent technologies. The LC is a small form factor(SFF)connector and is ideal for high density applications. The LC connector has a zirconia ceramic ferrule measuring 1.25mm with either a PC or APC end face, and provides optimum insertion and return loss. The LC connector is used on small diameter mini-cordage(1.6mm/2.0mm)as well as 3.0mm cable.
Features
RJ-45 style housing with push-pull coupling mechanism which allows easy disengagement in dense spaces.
Small Form Factor-Half the size of duplex SC and ST connectors
Simplex and duplex assemblies available in standard and custom configurations
Single mode and Multimode
PC finish
Compliant with Telcordia GR-1435-CORE specification
Specifications
| Type | Single Mode (angled) | Single Mode (PC) | Multimode (PC) |
| Insertion Loss | ≤0.30dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥65dB | ≥55dB | ≥25dB |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
Applications
Telecommunication
CATV Systems
LAN and WAN
Network
Broadband
FTTX
Test Equipments
Our Advantages
Experienced Staff
Green Product
Guarantee/Warranty
Perfect Product Performance
Prompt Delivery
Small Orders Accepted
