Singlemode LC/APC Fibre Optic Connectors, Fiber Optical Network Cable Connectors
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certificate, RoHS Compliant |
| Model Number: | LC/APC Fiber Optic Connector 3.0mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100PCS/Bag |
| Supply Ability: | 900000PCS/Month |
|
Detail Information |
|||
| Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm | Connector: | FC, SC, ST, LC, SMA, E2000, MPO, MTRJ |
|---|---|---|---|
| Polishing Type: | UPC, APC | Cores: | Simplex, Duplex |
| Fiber: | SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4 | Material: | Plastic Housing, Metal Housing |
| High Light: | fiber optic cable connectors,simplex fiber optic connector |
||
Product Description
Singlemode LC/APC Fibre Optic Connectors , Fiber Optical Network Cable Connectors

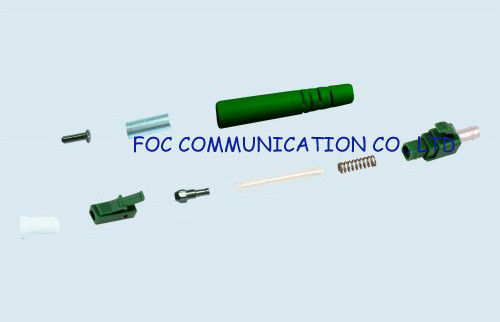

LC Fiber Optic Connector manufactured by FOC COMMUNICATION Co., Limited is fully compliant with International Industry Standard and compatible with LC Fiber Connection family including Single Mode/Multimode Fiber LC Connector available and accommodating 0.9mm, 2.0mm or 3.0mm boot type optional. All the LC Fiber Optic Connectors can be offered in pre-assembled or unassembled (kit) formats.
Specification
LC Fibre Connector Type: SM LC/PC, SM LC/APC, MM LC/PC OM3 connector available
LC Connector Boot Type: 0.9mm, 2.0mm, 3.0mm optional
LC Connector Color: Blue, Green, Beige, etc.
Simplex, Duplex, Uniboot, with Griphook LC Optical Connector optional
One-piece or Multi-piece LC Fiber Connector available
Features
Single mode and Multimode
Zirconia ceramic ferrule
NTT standard compatible
Available without flanges or with flange for duplex, saving panel space
High density for patch panel mount applications
Meet bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS
Good concentricity of LC ceramic ferrule
Increase panel density with small size
RoHS compliant for all LC connector material
Usage
Telecommunication
Data Network
LAN, FTTX
CATV
