Stable FC Fiber Optic Connectors , SM Simplex Network Cable Connectors
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certificate, RoHS Compliant |
| Model Number: | FC/UPC Fiber Optic Connector 3.0mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 100PCS/Bag |
| Supply Ability: | 900000PCS/Month |
|
Detail Information |
|||
| Connector Outer Diameter: | 3.0mm, 2.0mm, 0.9mm | Connector: | FC, SC, ST, LC, SMA, E2000, MPO, MTRJ |
|---|---|---|---|
| Polishing Type: | UPC, APC | Cores: | Simplex, Duplex |
| Fiber: | SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4 | Material: | Plastic Housing, Metal Housing |
| High Light: | fiber optic cable connectors,duplex fiber optic connector |
||
Product Description

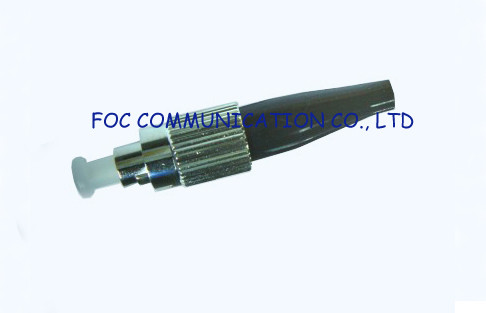

Stable FC Fiber Optic Connectors , SM Simplex Network Cable Connectors
There are single mode and multimode connectors. According to the shape of fiber optic connectors, there are FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN and so on.
FOC COMMUNICATION CO., LTD provide a full range of fiber optic connectors, such as FC connectors, SC connectors, LC connectors, ST connectors, E2000 connectors, MU connectors, MTRJ connectors, MPO connectors and so on.
A fiber optic connector terminates the end of a fiber optic cable, and enables quicker connection and disconnection than splicing. It has to be aligned properly to the microscopic glass fibers completely in order to allocate for communication. In all, there are nearly 100 fiber optic connectors in the market, but only a few represents the majority of the market — LC connector, SC connector, ST connector, FC connector etc.
FC is short for Ferrule Connector. It is a round, threaded fiber optic connector that was designed by Nippon Telephone and Telegraph in Japan. The FC connector is applied for single-mode optic fiber and polarization-maintaining optic fiber. The FC is a screw type connector with a 2.5mm ferrule, which was the first fiber optic connector to use a ceramic ferrule. However, FC is becoming less common and mostly replaced by SC and LC because of its vibration loosening and insertion loss.
Features
FC/PC Connectors for Single Mode or Polarization-Maintaining Fiber
Screw-In Connector for High Stability
Pre-Radiused, Spring-Loaded, Ø2.5 mm, Ceramic Ferrule
Strain Relief Boot for Ø3.0 mm, Ø2.0 mm or Ø900 µm Tubing and Connector Cap Included
FC type connector with low insertion loss
High resistance of corrosive
Strong interchanging capability
High return loss
UL standard accessories comply with UL94V-O and RoHS standard
Colors identify
Applications
Telecommunication
Ethernet
Optic communication equipment
Laser
Specifications
| FC connectors | Single mode | Multimode |
| Insertion Loss | ≤0.20dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) | |
| ≥55 dB (UPC) | ||
| ≥65 dB (APC) | ||
| Durability | <0.20 dB typical change | 1000 mating |
|
Operating Temperature |
-40 to + 80°C | |
| 125.0+1/-0μm, Concentricity: ≤1.0μ m | 125μm, Concentricity: 1≤3μm | |
| Ferrule Hole Sizes | 125.5+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: 1≤3μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: 1≤3μm |
