Wideband ST SM fiber optic variable attenuator 1310 / 1550nm Wide Attenuation Value
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | ST Inline Variable Fiber Optic Attenuator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
|
Detail Information |
|||
| Attenuation: | 0dB To 60dB | Connector: | ST |
|---|---|---|---|
| Type: | Inline Variable Attenuator | Mode: | Singlemode |
| High Light: | variable optical attenuator,single mode fiber attenuator |
||
Product Description

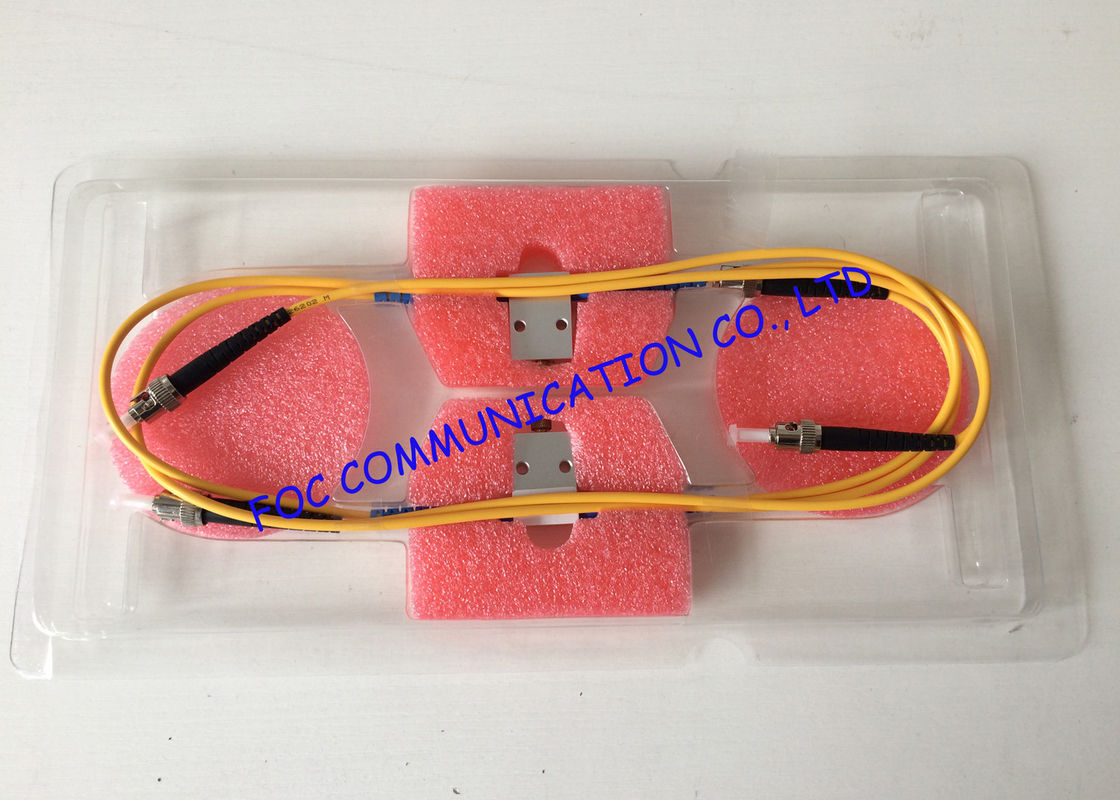

Fiber Optic Attenuator Inline Variable ST SM 1310 / 1550nm Wide Attenuation Value
Inline variable fiber optic attenuator provide a compact and simple means for manually adjusting optical signals in fiber optic systems and test sets. When mated to a standard connector, the variable attenuator connector causes the optical signal to become attenuated by creating a variable air gap between the connector ferrules. Attenuation is adjusted by means of a self-locking screw mechanism. Available in both singlemode and multimode fiber.
Variable optical attenuator is an all fiber device. It features low insertion loss, large attenuation range, small package and it is easy to operate. By turning the high precision screw, attenuation can be set to from 0dB to 60dB, and is continually adjustable. Its compact design is excellent for mounting on panel. Specific type of connector can be built on each end.
This Singlemode In-line variable Optical Attenuator is integrated into a standard connectorized fiber optic jumper cable. Cable is terminated with ST, FC, SC, LC, SC/APC, FC/APC, or LC/APC optical connector and available in the lengths up to 50 meters.
Applications
Digital, Hybrid and AM-Video Systems
Local Area Networks
CATV Systems
EDFA Transmission Systems
Optical communication system test
Fiber component test
Optics lab use
Features
High adjustable attenuation
All Fiber Construction
In-line Configuration
Excellent Environmental & Mechanical Stability
Wideband
Loss original loss
Compact configuration
Large attenuation range
Specifications
| Parameter | Type | |
| 1310nm | 1550nm | |
| Operating Wavelength(nm) | 1310 | 1550 |
| Operating Bandwidth(nm) | ±40 | ±40 |
| Attenuation Range(dB) | 0～60 | 0～60 |
| Original Loss(dB) | 0.6 | 0.2 |
| Adjustment Resolution(dB) | ＜0.2 | |
| Return Loss(dB) | ≥50 | |
| Operating Temperature(℃) | -40～+70 | |
| Storage Temperature(℃) | -40～+85 | |
*The above specification is without connector
Ordering Information
| Side 1 | Side 2 | Fiber | Cable Size | Wavelength | Jacket | Length | Adjustment |
| SC | SC | SM 9/125um | 0.9mm | 1. 1310nm | 1. PVC | Customized |
|
| ST | ST | MM 50/125um | 2.0mm | 2. 1550nm | 2. LSZH | ||
| FC | FC | MM 62.5/125 | 3.0mm | 3. 1310/1550nm | |||
| LC | LC | ||||||
| DIN | DIN | ||||||
| D4 | D4 | ||||||
| MU | MU | ||||||
| SC/APC | SC/APC | ||||||
| FC/APC | FC/APC | ||||||
| LC/APC | LC/APC | ||||||
| DIN/APC | DIN/APC | ||||||
