Singlemode Male To Female FC Attenuator 10db 3db 5db 7db Rohs / ISO Certificate
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | FC/APC Fiber Optic Attenuator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
|
Detail Information |
|||
| Attenuation: | 3dB, 5dB, 7dB, 10dB | Connector: | FC/APC |
|---|---|---|---|
| Type: | Male To Female | Mode: | Singlemode |
| High Light: | variable optical attenuator,multimode attenuator |
||
Product Description

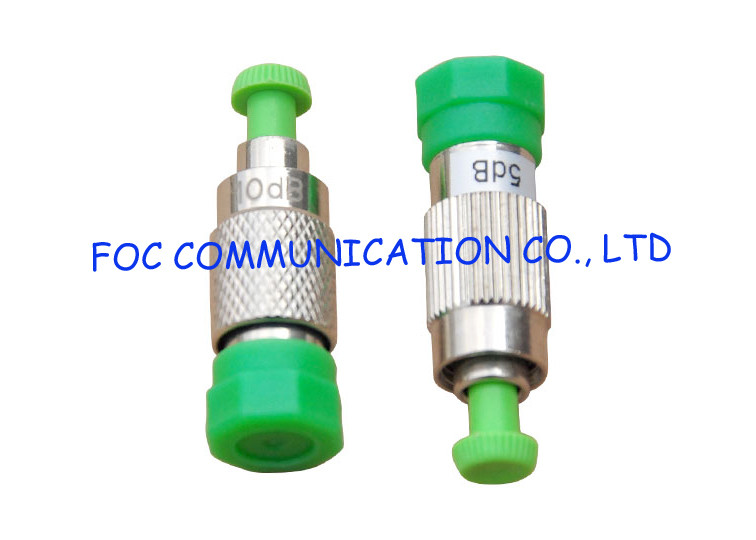

Singlemode Male To Female FC Attenuator 10db 3db 5db 7db Rohs / ISO Certificate
FC Fiber Optic Attenuators are used in the fiber optic communications to reduce the optical fiber power. Male to female attenuator FC/UPC, SC/UPC, LC/UPC, ST/UPC, MU/UPC, FC/APC, SC/APC, LC/APC are all available. The most commonly type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level.
Fiber optic attenuator have adapter type and plug type. Including FC, SC, ST, LC, MU, E2000 etc. Meet the EUROPE ROHS request. Good loss value can adjust optical power to desired levels.
Features
Professional Manufacturer
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
Plastic or metal housing material
FC, SC, ST, LC … optional
Application
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment
Specifications
| Operating Wavelength |
SM: 1200-1600nm or 1310nm, 1550nm MM: 850nm, 1300nm |
| Return Loss |
≥55dB (UPC) ≥65dB (APC) |
| Attenuation Accuracy |
±0.5dB(1-10dB) ±1.0dB(11-30dB) |
| Polarization Dependent Loss | Less than 0.2dB |
| Maximum Optical Input Power | 200mW |
| Operating Temperature Range | -40～80℃ |
