Male to Female Fiber Optic Attenuator LC to Reduce Signal Power For Fiber Networks
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | LC Fiber Optic Attenuator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5 Working Days |
|
Detail Information |
|||
| Attenuation: | 0dB To 25dB | Connector: | LC |
|---|---|---|---|
| Type: | Male To Female | Mode: | Singlemode, Multimode |
| High Light: | multimode attenuator,single mode fiber attenuator |
||
Product Description

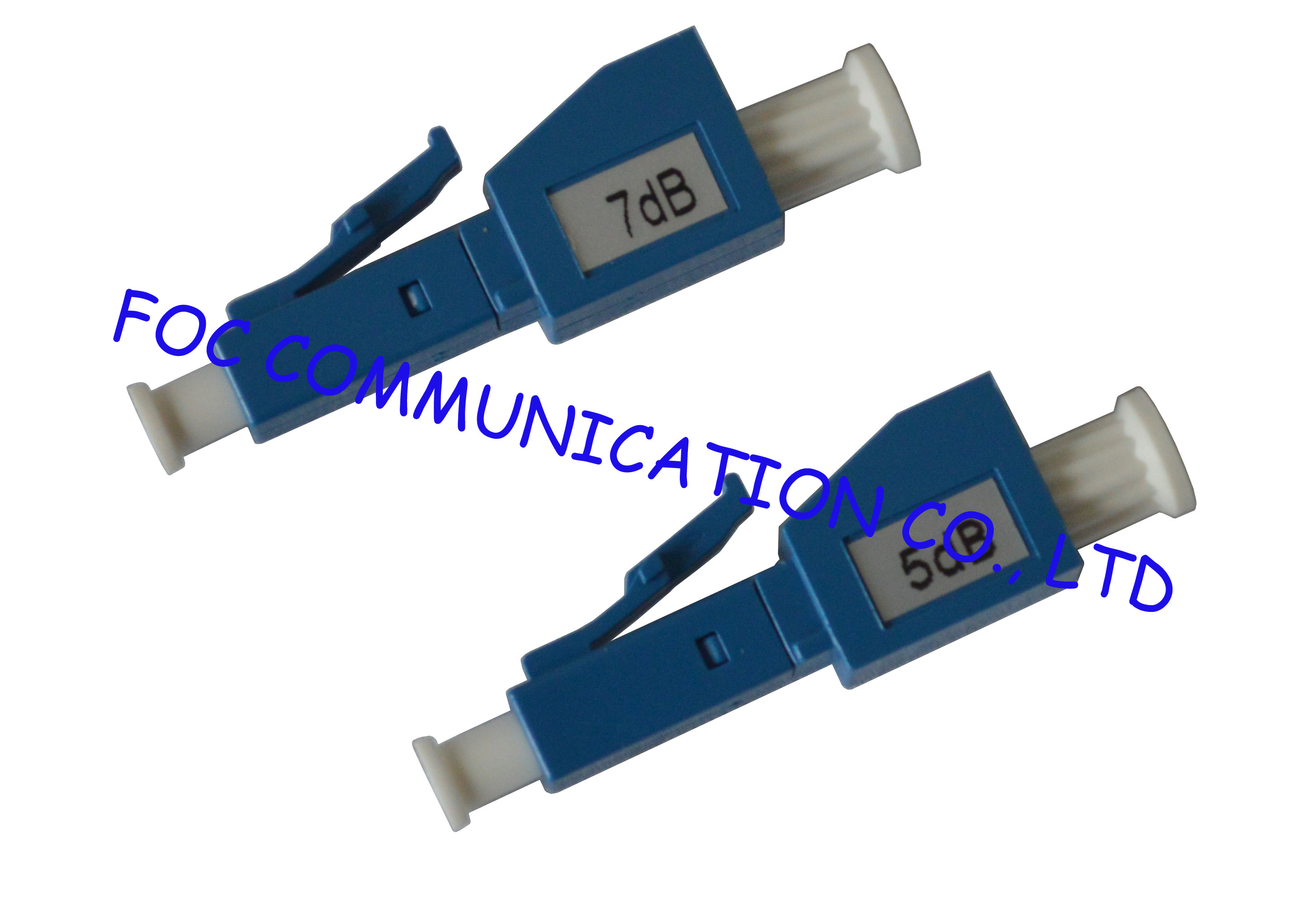

Male to Female Fiber Optic Attenuator LC to Reduce Signal Power For Fiber Networks
LC Fiber optic attenuators are used to decrease signal power of the outputs of light sources and electrical-to-optical converters. They also can be used to confirm the dynamic range of photo sensors and photo detectors. Attenuators can be used by single-mode and multi-mode optical cables.
FOC COMMUNICATION CO., LTD provides FC attenuators, LC fiber attenuators, SC fiber optic attenuators, LC optical fiber attenuators and so on.
Applications
Telecommunication Networks
Data Networks
Video & CATV
Features
Bellcore Compliant
Wavelength Independent(DWDM)
Durability (well over 100mW)
Simple and Reliable Structure
Specifications
| Item | Specifications |
| Bandwidth | 1250nm~1625nm |
| Center Wavelength | 1310 nm and 1550 nm |
| Attenuation Tolerance (dB) | ±1.0dB(1-10dB) , typical standard |
| ±10% (11-25dB), typical standard | |
| ±0.5dB(1-10dB), typical premium | |
| ±5% (11-25dB) , typical premium | |
| Return Loss | RL>=50dB (UPC) RL >= 60dB (APC) |
| PDL | <0.1dB |
| Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+75℃ |
Ordering Information
|
Attenuation |
01:1dB, 02: 2dB, 03:3dB, 30:30dB |
|
Type |
Male to Female, Female to Female |
|
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, X=Others |
Fiber Optic Attenuator, Optical Fiber Attenuator, Fiber Attenuators
