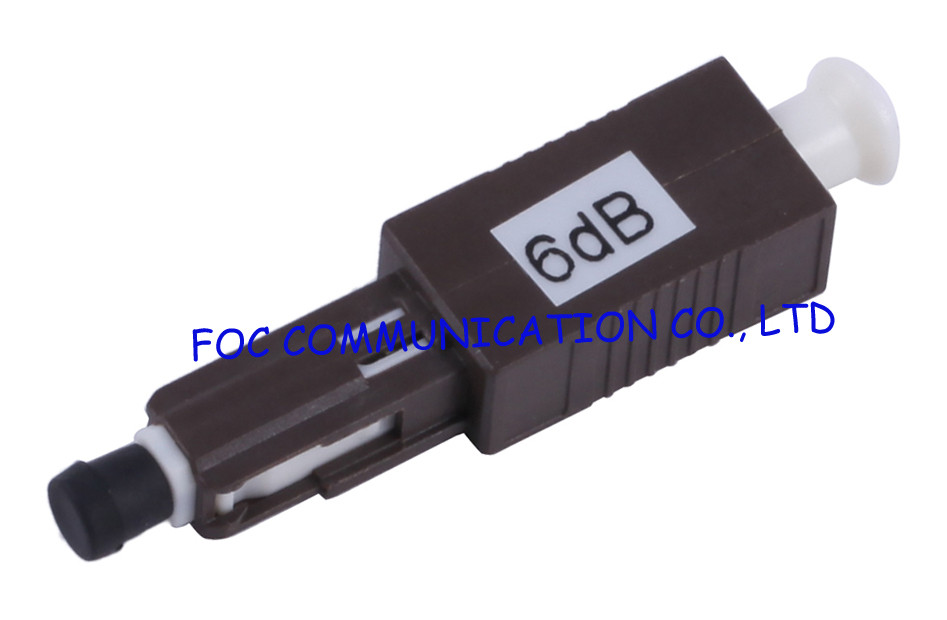

Male to Female MU multimode attenuator 0dB to 25dB metal housing For FTTX
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | MU Fiber Optic Attenuator |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
|
Detail Information |
|||
| Attenuation: | 0dB To 25dB | Connector: | FC, SC, ST, LC, MU |
|---|---|---|---|
| Type: | Male To Female, Female To Female | Mode: | Singlemode, Multimode |
| High Light: | variable optical attenuator,single mode fiber attenuator |
||
Product Description
Male to Female MU multimode attenuator 0dB to 25dB metal housing For FTTX
MU Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. And it is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Our fiber attenuator series include: SC ,FC,LC,ST ,MU,SC/APC ,FC/APC, single mode fiber optic attenuator and multimode fiber optic attenuator available. Our fiber optic attenuators are manufactured according to international standard and are compatible with the fiber optic products currently available in the international market.
Features
Metal ion doped fiber
Attenuation levels ranging from 1 dB to 30 dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
Easy to connect/disconnect (RJ latch)
High mechanical resistance
Application
Passive optical networks
Overpowered fiber optic systems
Optical power receivers protection
Multiwavelength systems balancing
EDFA loop tests and measurements
Specifications
| Parameter | Unit | Value |
| Operating Wavelength | nm | 1310/1550 ± 10 |
| Tolerance for 1~5 dB Attenuation | dB | ± 0.5 |
| Tolerance for 6~30 dB Attenuation | % | ± 10 |
| Return Loss | dB | > 50 |
| Operating Temperature | C | -40 to +75 |
| Polarization Dependent Loss | dB | < 0.1 |
| Mating Durability | cycle | >1000 |
