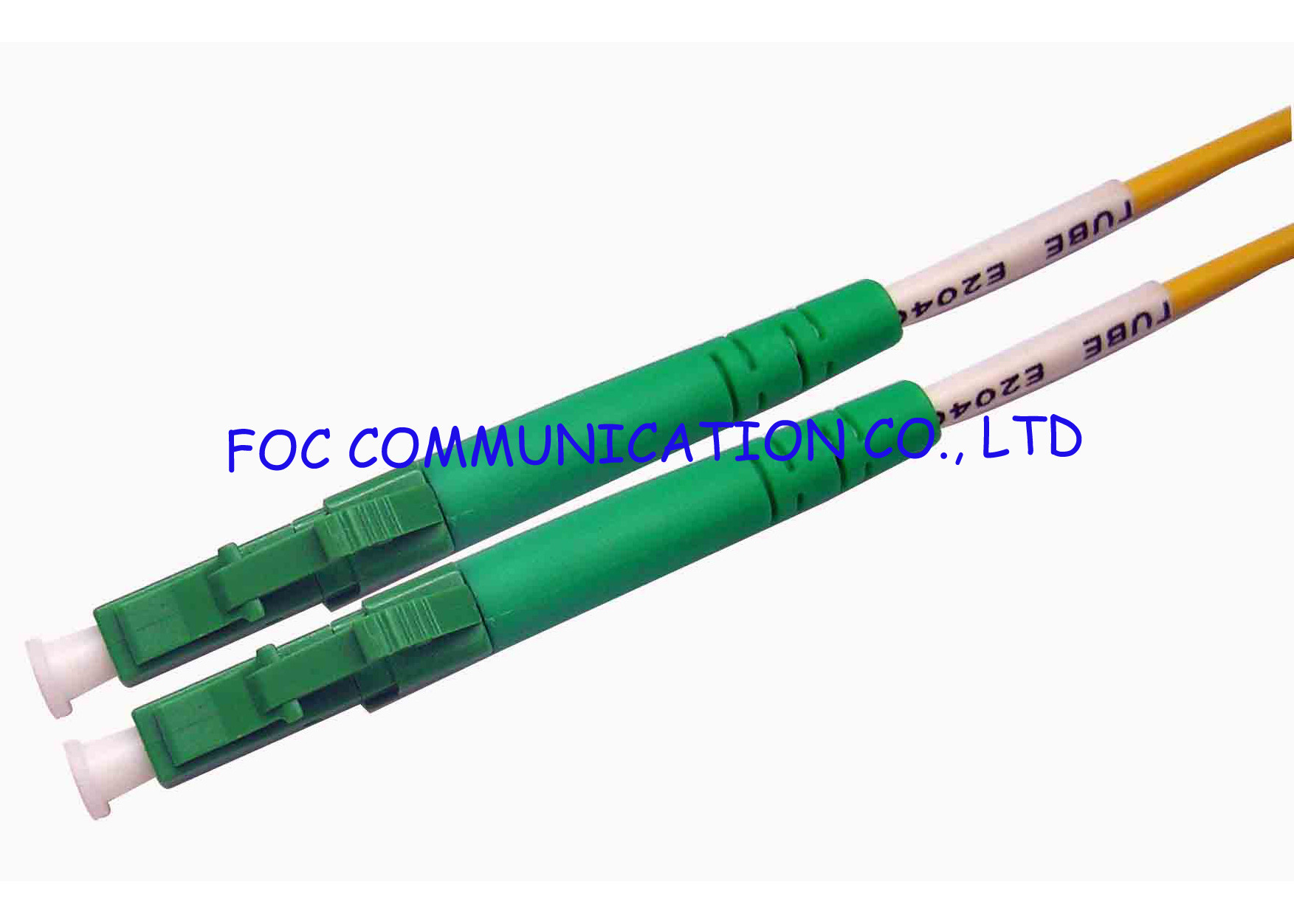

LC / APC SM G.657A fiber optic pigtail single mode High Stability For LAN
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO, RoHS Compliant |
| Model Number: | LC/APC SM Fiber Optic Pigtail |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | 1PCS/Blister Box |
|
Detail Information |
|||
| Cable: | PVC, LSZH, OFNP, OFNR, Hytrel | Cores: | Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core |
|---|---|---|---|
| Fiber: | OS1, OS2, OM1, OM2, OM3, OM4 | Outer Diameter: | 0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm |
| Connector: | FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | fiber optic pigtail cables,fiber optic pigtail connector |
||
Product Description
LC / APC SM G.657A fiber optic pigtail single mode High Stability For LAN
Fiber optic pigtail cables LC/APC 0.9mm 9/125 called fiber tails, only one end of the connector and the other end is a cable core breakage, connected by welding and other cable core, often appear in the fiber optic terminal box for connecting cable and fiber optic transceiver (also used couplers, between jumpers, etc.).
Single-mode fiber and multimode fiber are both used for fiber optic pigtails. The single-mode fiber optic pigtail has a 9/125 micron core size. SC, LC, ST, FC and E2000 connectors are all fit for this kind of fiber. As for multimode fiber optic pigtails, there are two different core sizes. One is 62.5/125 micron of OM1, and the other is 50/125 micron of OM2, OM3, OM4. SC, LC, ST, FC connectors are adaptable to multimode fiber optic pigtails.
LC fiber optic pigtail uses the LC connector developed by Lucent Company. LC connector is now one of the most popular connectors in the world. A 1.25mm ceramic ferrule makes LC fiber optic pigtail a better choice for low cost but high precision signal transmission.
Characteristics
Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT
Low insertion loss & back reflection
One-piece construction & pull-proof design
Free-floating ceramic ferrule
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing and boots in a variety of colors
Telcordia style boots
Adapters with choice of metal or plastic housing, mount styles & flange options
Applications
CATV, metro test equipment;
Telecommunication networks;
Local area networks (LAN);
Wide area networks (WAN);
Premise installations;
Data processing networks;
Video and military active device termination
SPECIFICATIONS
Technical specifications
| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability(1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| Diameter | 0.9mm 2.0mm, 3.0mm,etc | |||
| Cable material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores,etc | |||
| Length | 1m, 2m, 3m, 9m,ect | |||
