    Multimode Fiber Optic Pigtail

    Product Details:

    Place of Origin: China
    Brand Name: FOCABLE
    Certification: ISO, RoHS Compliant
    Model Number: SC SM Fiber Optic Pigtail

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Packaging Details: 1PCS/Blister Box
    Get Best Price Contact Now

    Detail Information

    Cable: PVC, LSZH, OFNP, OFNR, Hytrel Cores: Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
    Fiber: OS1, OS2, OM1, OM2, OM3, OM4 Outer Diameter: 0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
    Connector: FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO Length: 1M, 2M, 3M, 5M Or As Per Customer Request
    High Light:

    fiber optic pigtail cables

    ,

    optical fiber pigtail

    Product Description

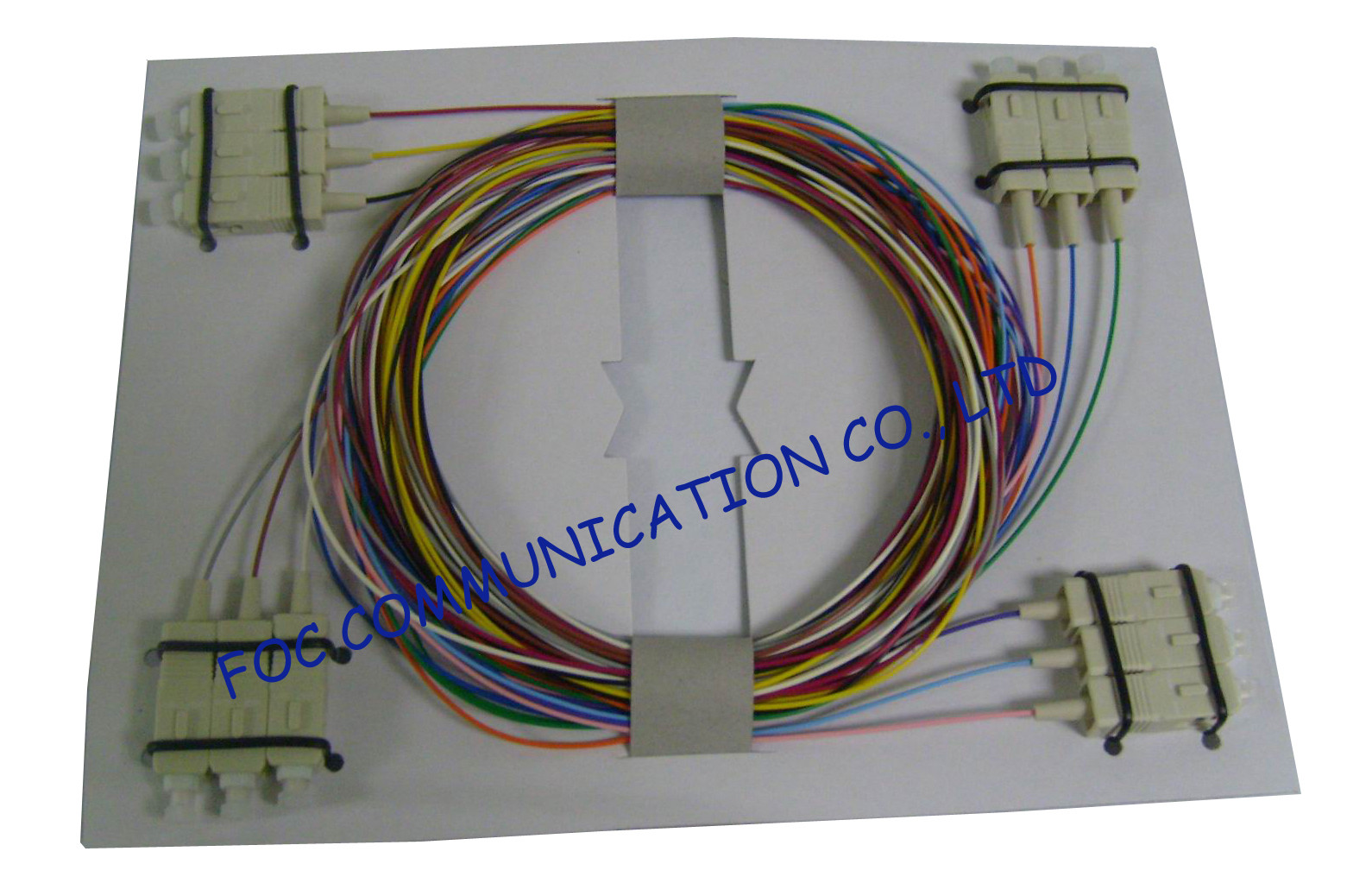

    0.9mm Fiber Optic Pigtail SC 12Colors Multimode Suitable for ODF​

    Fiber Optic Pigtail is a piece of cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment.  There are single mode and multimode pigtails, the wavelength of single mode pigtail is 1310/1550nm and the color is yellow in common. If multimode fiber optic pigtail,  the color is orange. We also provide non-jacketed fiber optic pigtail and jacketed pigtails.



    Breakout optical fiber pigtail, distribution pigtail and ribbon fan out pigtails are also available.

    Customer label and OEM design can be produced as per request.



    Material

    Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack, 48pack)

    Cable Jacket: PVC, LSZH, OFNR, OFNP

    Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

    Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

    Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

    End face type: UPC, APC



    Descriptions

    The SC fiber optic pigtails, these cables are with 9/125 single mode fiber, and connector types are PC, UPC or APC optional. The pigtails are fully compatible with industrial standards; they are good prices, fast delivery and good looking and packing.

    SC optical fiber cords are widely used in fiber optic systems; especially SC single mode products are very popular. SC standard fiber optic connectors are used for telecommunications, CATV, LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors. SC fiber optic connectors comply with IEC 61754-13 & CECC 86 115-801 standards. They are well known for general, average applications. We can supply single mode and multimode version SC, FC, LC, ST, MU, E2000, MPO fiber optic patch cords and related fiber optic components.



    Features

    Low insertion loss

    High return loss

    Excellent repeatability

    Compact and anti-pull design
    Precision fiber optic ferrule
    High precision exact alignment
    IEC Compliant
    Telcordia compliant
    UPC, PC or APC polished connectors



    Applications

    Local area networks, wide area networks

    Optical Switch interface connections
    Gigabit Ethernet
    CATV and WAN
    Testing Instrument, active device connection

    Premise Installations
    Telecommunication Networks

    Fiber to the home



    SPECIFICATIONS

    Type

    Single Mode (typical)

    Single Mode (maximum)

    Multimode(maximum)

    Insertion Loss

    ≤0.15dB

    ≤0.3dB

    ≤0.3dB

    Return Loss

    ≥55dB

    ≥50dB

    ≥25dB

    Operating Temperature

    -40℃ to +80℃

    -40℃ to +80℃

    -40℃ to +80℃



    Ordering Information

    Cores Count

    01=simplex, 02=duplex, ..., 06=6cores, ..., 12=12cores, 24=24cores

    Fiber Type

    1=G652D, 2=G657A, 3=OM3,50/125um 4=OM4 5=OM1, 62.5/125um,   6=OM2, 62.5/125um

    Cable Outer Diameter

    L=900µm Loose or tight tube, S=2.0mm, R=3.0mm, X=others

    Cable Length

    0.5-20M=0.5--20m, X=Others

    Connector Type

    FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others



    Multimode Fiber Optic Pigtail 0



    Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails
