Simplex Fiber Optic pigtail lc OEM G.657 Simplex For Local Area Networks

China Simplex Fiber Optic pigtail lc OEM G.657 Simplex For Local Area Networks supplier
Simplex Fiber Optic pigtail lc OEM G.657 Simplex For Local Area Networks supplier Simplex Fiber Optic pigtail lc OEM G.657 Simplex For Local Area Networks supplier

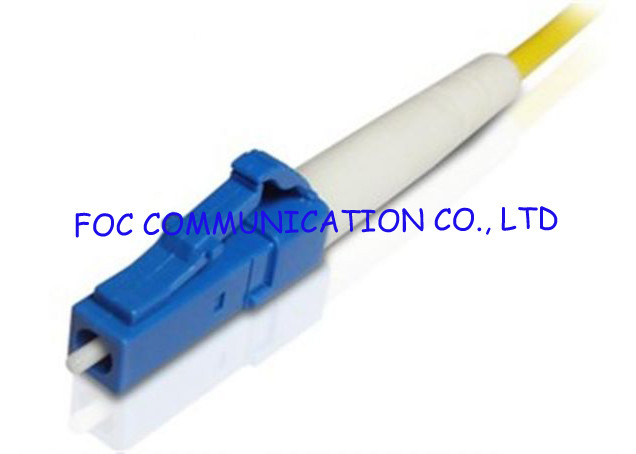

Large Image :  Simplex Fiber Optic pigtail lc OEM G.657 Simplex For Local Area Networks

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO, RoHS Compliant
Model Number: LC SM G.657 Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1PCS/Blister Box
Contact Now
Detailed Product Description
Cable: LSZH Cores: Simplex
Fiber: SM G.657 Outer Diameter: 0.9mm
Connector: LC Length: 1M, 2M

Simplex Fiber Optic pigtail lc OEM G.657 Simplex For Local Area Networks

Fiber optic pigtail is terminated standard fiber optic connector at one end and keep blank at the other end. According to connector type, fiber optic pigtails can be SC fiber optic pigtail, LC fiber optic pigtail, FC, ST, MU, E2000, SMA, MTRJ, MPO etc such fiber optic pigtails. According to the cable type, fiber optic pigtails can be 0.9mm buffered pigtail with 12 colors,12F fan-out fiber optic pigtail, ribbon fiber optic pigtail, water-proof pigtail, etc.

A fan out kit is a set of empty jackets designed to protect the fragile tight buffered strands of fiber cables that require individual termination without splicing any fiber pigtail or needing to mount any protective enclosure.

This is normally an option with fiber distribution cable, or sometimes loose buffer or ribbon cable, because these types of cable contain multiple strands that are designed for a permanent termination.



Applications

Fast Ethernet, Data Communication LAN and WAN

High speed Enterprise servers

Multiplexers, switches and routers

Optical Access and ATM Networks Equipment

Optical Transport and Telecommunications, FTTH,FTTD,FTTX

Switching Equipment



Material

Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

End face type: UPC, APC



Features

Simplex, and multi-fiber assemblies are available

PC or APC finish
Compliant with Telcordia GR-326-CORE specification
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, LSZH,

Fiber Type: SM, MM OM1, OM2 or OM3 optional
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm



SPECIFICATIONS

parameter unit Multi-fiber connector
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return Loss dB ≥40 ≥50 ≥60 ≥25
Wavelength nm 1310, 1550 850,1310
Exchangeability dB ≤0.2
Vibration dB ≤0.2
Operating Temperature °C -40~80
Storage Temperature °C -40~80
Cord diameter mm Φ3.0, Φ2.0, Φ0.9
Fiber Count F 4, 6, 8, 12,24fiber…
Connector Available   FC, SC, ST, LC, MU,MTRJ, MPO



Simplex Fiber Optic pigtail lc OEM G.657 Simplex For Local Area Networks

Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails
