LSZH Jacket Fiber Optic Patch Cord , 5 Meters sc fc patch cord RoHS Compliant
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | SC-FC Fiber Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM | Cable Material: | LSZH |
|---|---|---|---|
| Cable Diameter: | 3.0mm | Connector: | SC/UPC, FC/UPC |
| Cores: | Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | multimode fiber optic cable,fiber optic jumper |
||
Product Description

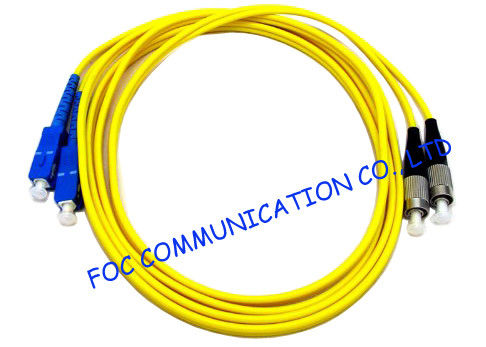

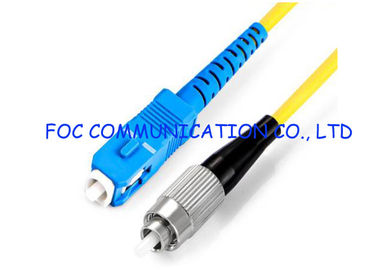

Yellow LSZH Jacket Fiber Optic Patch Cord SC-FC SM 5 Meters RoHS Compliant
FOC COMMUNICATION CO., LTD offers a range of superior-quality, duplex, LSZH fiber optic patch cords. Fiber optic patch cords are non-conductive and immune to electrical noises. They provide convenient connections between fiber optic converters and fiber optic patch panels, and are regularly used with fiber optic equipment.
Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. and so it is the perfect connections between value and performance. Available in a large range of colors and lengths, we have the cable that can fit every situation. And well patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.
Packing and shipping
Packaging PE bags or blister box, then put into carton box
Shipping: International Express, Fedex, DHL, UPS, TNT and EMS. If you have another
preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Features
Low Insertion Loss
High Return Loss
Clean and Scratch-Free End Face
High Quality 100% Factory Tested
3D fiber interferometer is available
Application
FTTH application
Premise installations
Data processing networks
Wide Area Networks (WANs)
Telecommunication networks
Industrial ,mechanical and military
Specifications
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Salt Spray | ≤0.1dB | ||
| Repeatability | ≤0.1dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
| Apex Offset | 0μm ~ 50μm | ||
| Radius of Curvature | 7mm ~ 25mm | ||
Tag: Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
