0.9mm Distribution Fan Out Fiber Optic Patch Cord 12Core for Telecom and Datacom

China 0.9mm Distribution Fan Out Fiber Optic Patch Cord 12Core for Telecom and Datacom supplier

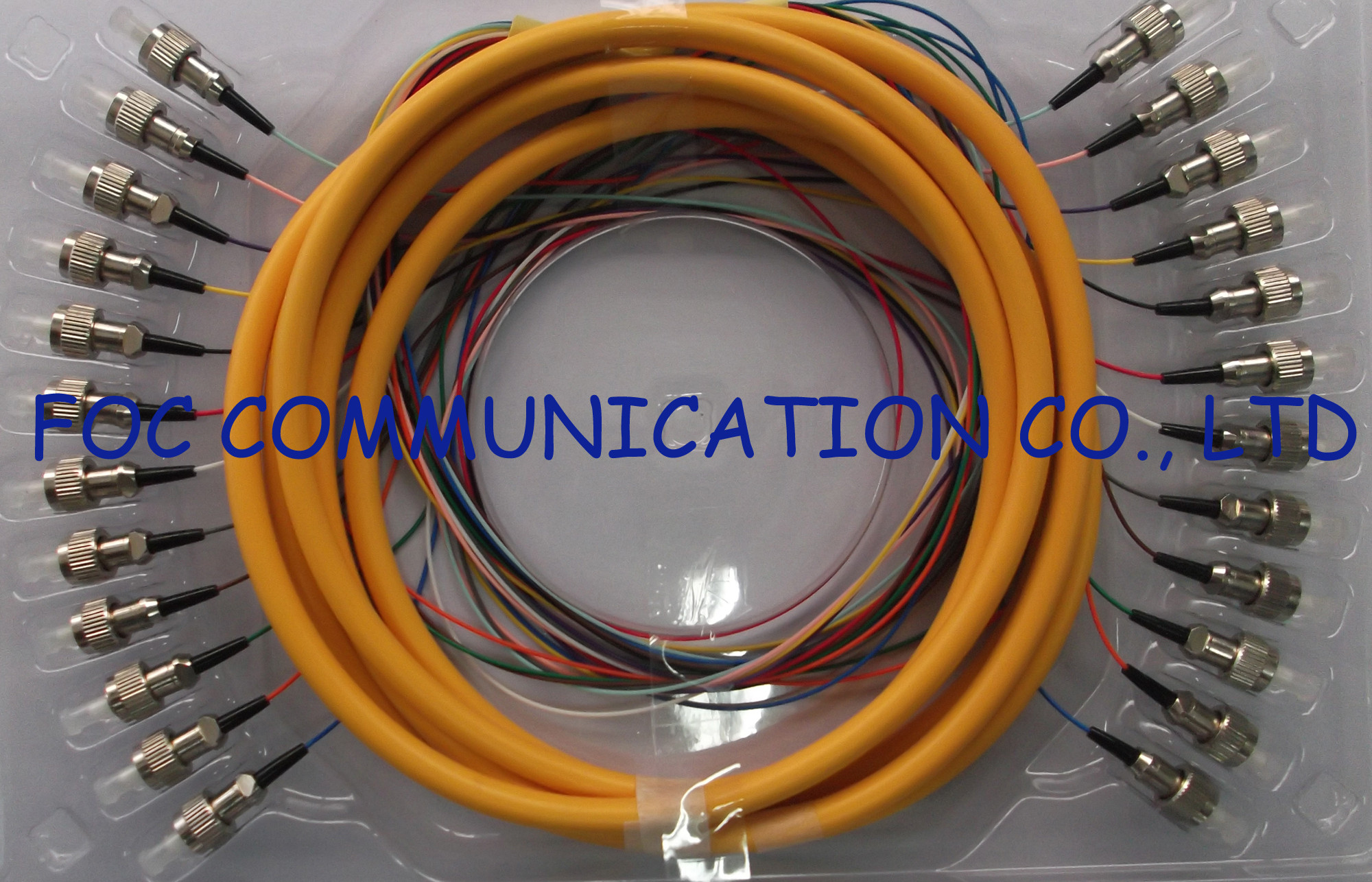

Large Image :  0.9mm Distribution Fan Out Fiber Optic Patch Cord 12Core for Telecom and Datacom

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: Bundle Fan Out Fiber Optical Patch Cord12Core FC

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Contact Now
Detailed Product Description
Fiber Type: SM, OM1, OM2, OM3, OM4 Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request

0.9mm Distribution Fan Out Fiber Optic Patch Cord 12Core for Telecom and Datacom​

Distribution fan out patch cable is protected and separated fiber (general 12 cores) with connector on the end to realize the separate fiber connection with the ODF. The quality and performance is reliable and stable. It is an efficient and economical solution rather than one site termination or splicing. Lay the cable and patch it soon, simply to do it.



Applications

Connection of optical transmission equipments

Telecom and Datacom applications

Computer networks

High speed and volume data transmission network

CATV, LAN



Specifications

Connector Type FC,SC,ST,LC,MTRJ
Endface Type(nm) PC UPC APC
Insertion Loss(dB) ≤0.30 ≤0.30 ≤0.30
Repeatability(dB) ≤0.10
Exchangeability(dB) ≤0.20
Return Loss(dB) ≥45 ≥50 ≥60
Fiber Type SM, MM
Operation Temperature(℃) -25℃~ +70℃
Storage Temperature(℃) -40℃~ +85℃
Durability(time) >1000 times
Industry Standard Telcordia GR-326-CORE



Ordering information

Interface Connector Length Color of jacket Type of jacket Fiber Type Cores
P-PC FC-FC 1M B-Black P-PVC SM Simplex
U-UPC SC-SC 3M Y-Yellow L-LSZH MM 50/125um Duplex
A-APC LC-LC 5M W-White PE MM 62.5/125um 4cores
  ST-ST 10M X-Customized X-Customized MM OM3 6cores
  MU-MU Customized       8cores
  MTRJ-MTRJ         12cores
  E2000-E2000         12cores
  DIN         Customized
  Customized
