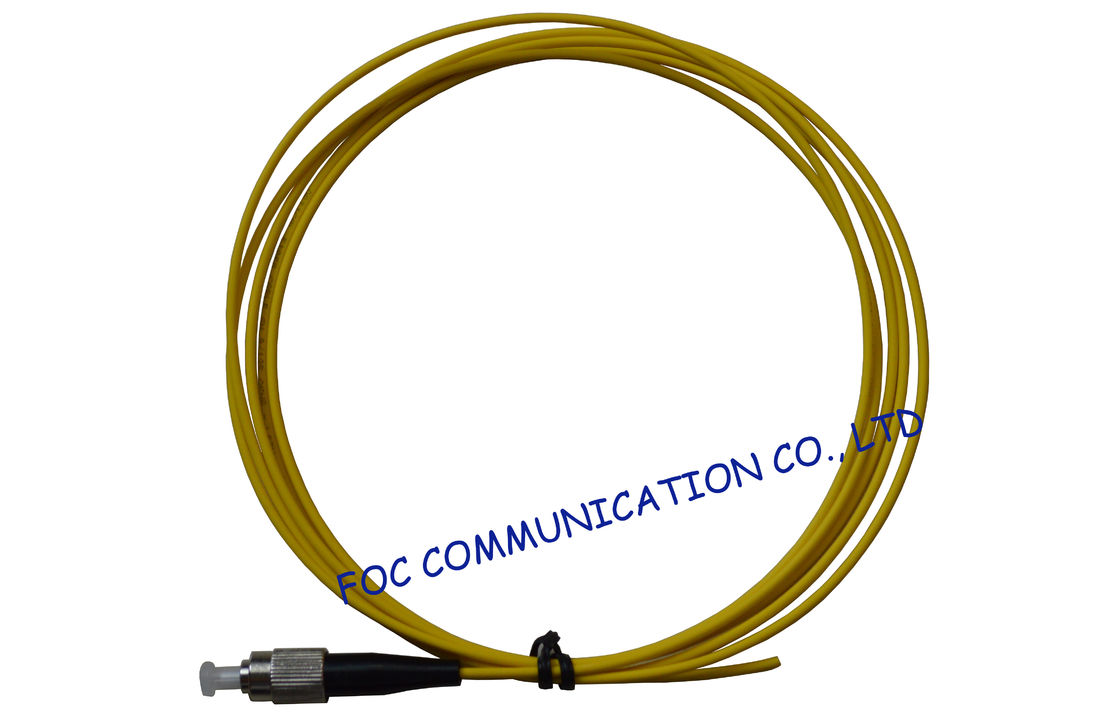

FC 2.0mm Fiber Optic Pigtail SM LSZH Low Insertion Loss for Optical Networks
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO, RoHS Compliant |
| Model Number: | FC SM Fiber Optic Pigtail |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | 1PCS/Blister Box |
|
Detail Information |
|||
| Cable: | PVC, LSZH, OFNP, OFNR, Hytrel | Cores: | Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core |
|---|---|---|---|
| Fiber: | OS1, OS2, OM1, OM2, OM3, OM4 | Outer Diameter: | 0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm |
| Connector: | FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | fiber optic pigtail connector,optical fiber pigtail |
||
Product Description
FC 2.0mm Fiber Fiber Optic Pigtail SM LSZH Low Insertion Loss for Optical Networks
Fiber optic pigtail can connect with different types of connectors such as ST, FC, SC, LC or MU. With the high-quality ceramic ferrule, it has good conformity and low Insertion Loss. And it is widely used in the Telecommunication Networks, Data Transmission, Test Equipment and the LAN of CATV etc.
FOC COMMUNICATION CO., LTD provides a full range of pigtails, such as SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MT-RJ, MU, E2000, E2000/APC, MPO, DIN etc for both Single mode and Multimode. All products are designed and controlled under IEC standard, meet the requirement of Telcordia GR-326 and TIA/EIA as well.
Features
Low insertion loss, high return loss
High credibility and stability
Fiber cores: 4, 6, 8, 12, 24, 48
Joint Specification: FC, SC, ST, LC
Cable material: PVC, OM1, OM2 or Om3 can be chosen
To Comply with customer's request, we could design and produce pigtails in all kinds of specifications and models
Applications
Telecommunication network
CATV system
Local Area Network
Active/Passive device
FTTH and FTTX
Specifications
| Electrical/Mechanical | Units | Specifications |
| Fiber type | SM8/125,8.3/125,8.7/125,9/125um MM 50/125,62.5/125um | |
| Connector | ST/SC/FC/LC/DIN/MTRJ/D4/MU/E2000/SMA optional | |
| Polishing | PC/UPC/APC | |
| Return loss | dB | 65 APC, 55UPC,45 PC |
| Fan out cable type | 2.0mm color-coded jacketed sub-units | |
| Entry fitting type | 5/8-24UNEF-2A | |
| Number of fiber | 4,6 or 8Fiber options |
