• OEM G.652D White Fiber Optic Pigtail Simplex For Telecommunication Network
OEM G.652D White Fiber Optic Pigtail Simplex For Telecommunication Network

OEM G.652D White Fiber Optic Pigtail Simplex For Telecommunication Network

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO, RoHS Compliant
Model Number: SC/APC SM G.657 Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1PCS/Blister Box
Get Best Price Contact Now

Detail Information

Cable: PVC, LSZH, OFNP, OFNR, Hytrel Cores: Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
Fiber: OS1, OS2, OM1, OM2, OM3, OM4 Outer Diameter: 0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Connector: FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO Length: 1M, 2M, 3M, 5M Or As Per Customer Request
High Light:

fiber optic pigtail cables

,

optical fiber pigtail

Product Description

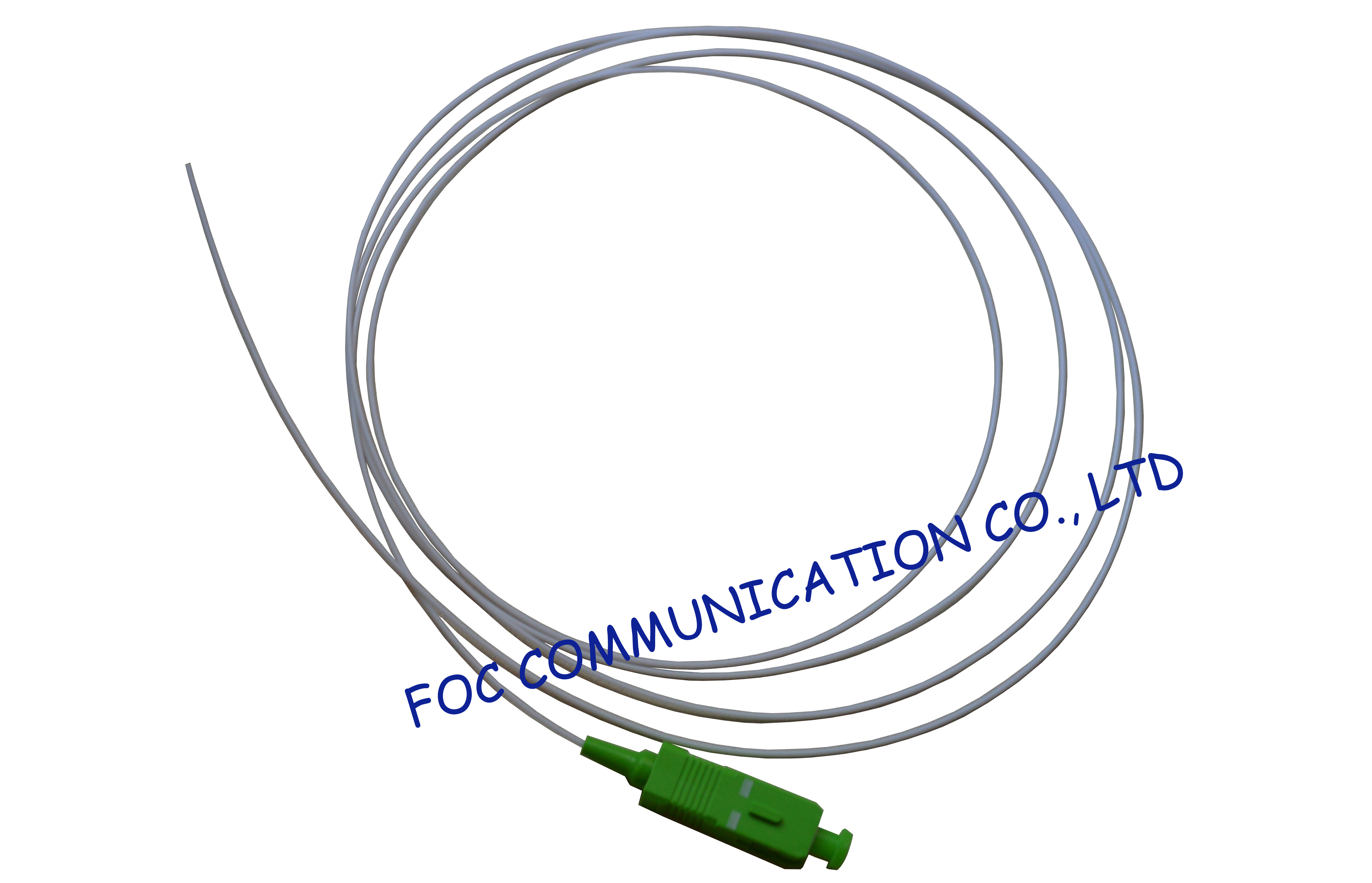

OEM G.652D White Fiber Optic Pigtail Simplex For Telecommunication Network​



Fiber Optic Pigtail is a piece of cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment.  There are single mode and multimode pigtails, the wavelength of single mode pigtail is 1310/1550nm and the color is yellow in common. If multimode fiber optic pigtail,  the color is orange. We also provide non-jacketed fiber optic pigtail and jacketed pigtails.



Breakout optical fiber pigtail, distribution pigtail and ribbon fan out pigtails are also available.

Customer label and OEM design can be produced as per request.



Material

Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

End face type: UPC, APC



Descriptions

The SC fiber optic pigtails, these cables are with 9/125 single mode fiber, and connector types are PC, UPC or APC optional. The pigtails are fully compatible with industrial standards; they are good prices, fast delivery and good looking and packing.

SC optical fiber cords are widely used in fiber optic systems; especially SC single mode products are very popular. SC standard fiber optic connectors are used for telecommunications, CATV, LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors. SC fiber optic connectors comply with IEC 61754-13 & CECC 86 115-801 standards. They are well known for general, average applications. We can supply single mode and multimode version SC, FC, LC, ST, MU, E2000, MPO fiber optic patch cords and related fiber optic components.



Features

Low insertion loss

High return loss

Excellent repeatability

Compact and anti-pull design
Precision fiber optic ferrule
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors



Applications

Local area networks, wide area networks

Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection

Premise Installations
Telecommunication Networks

Fiber to the home



SPECIFICATIONS

Type

Single Mode (typical)

Single Mode (maximum)

Multimode(maximum)

Insertion Loss

≤0.15dB

≤0.3dB

≤0.3dB

Return Loss

≥55dB

≥50dB

≥25dB

Operating Temperature

-40℃ to +80℃

-40℃ to +80℃

-40℃ to +80℃



Ordering Information

Cores Count

01=simplex, 02=duplex, ..., 06=6cores, ..., 12=12cores, 24=24cores

Fiber Type

1=G652D, 2=G657A, 3=OM3,50/125um 4=OM4 5=OM1, 62.5/125um,   6=OM2, 62.5/125um

Cable Outer Diameter

L=900µm Loose or tight tube, S=2.0mm, R=3.0mm, X=others

Cable Length

0.5-20M=0.5--20m, X=Others

Connector Type

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others
