Home SC Optical Fiber Pigtail YOFC Fiber with PVC LSZH Cable Jacket

China Home SC Optical Fiber Pigtail YOFC Fiber with PVC LSZH Cable Jacket supplier

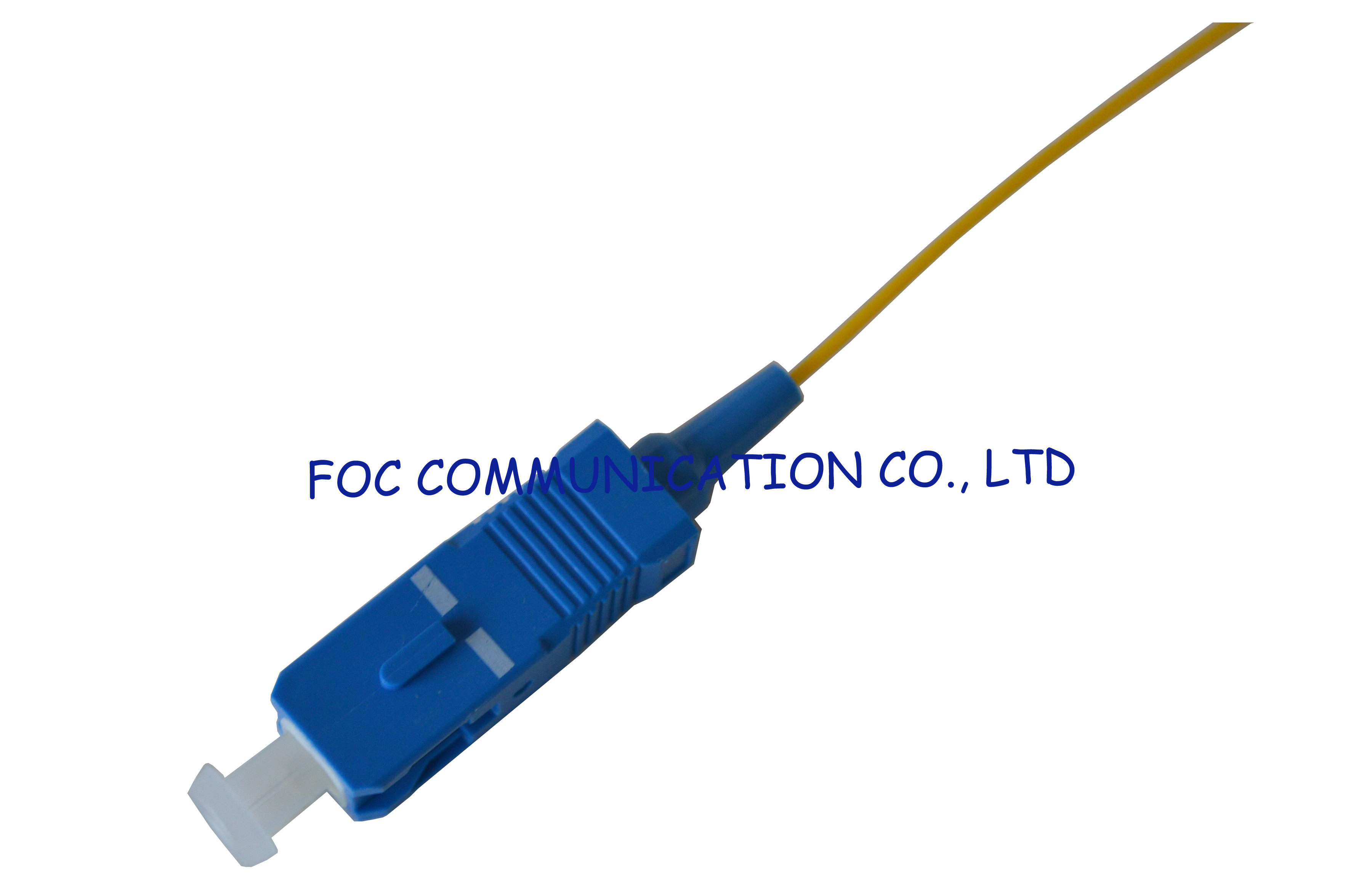

Large Image :  Home SC Optical Fiber Pigtail YOFC Fiber with PVC LSZH Cable Jacket

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO, RoHS Compliant
Model Number: SC SM Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1PCS/Blister Box
Contact Now
Detailed Product Description
Cable: PVC, LSZH, OFNP, OFNR, Hytrel Cores: Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
Fiber: OS1, OS2, OM1, OM2, OM3, OM4 Outer Diameter: 0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Connector: FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO Length: 1M, 2M, 3M, 5M Or As Per Customer Request

Home SC Optical Fiber Pigtail YOFC Fiber with PVC LSZH Cable Jacket​

We can supply single mode and multimode version SC, FC, LC, ST, MU, E2000, MPO fiber optic pigtail and related fiber optic components.



Take advantage of the economical SC connector and the performance optimizing power of an angle-polished endface with the SC/UPC Singlemode Fiber Optic Pigtail. With this particular fiber optic pigtail, the SC connector has been polished on good performance. On the other end of this pigtail, you will find an exposed fiber, ready for any application you need it to serve, including fusion splicing or LAN/WAN networking.



With the SC/UPC fiber optic pigtail in OS2 Singlemode, transfer data over a 9/125 micron glass fiber 1Gbps link a distance of up to 10,000 meters at a wavelength of 1310nm. For a 10Gbps link, you can transfer data a distance of up to 5,000 meters at 1310nm or up to 30,000 meters at 1550nm.



Feature

Low insertion loss and back reflection loss

Good exchangeability

Good Durability

High temperature stability.

Superior Quality Standard PC/UPC/APC Polishing

Standard: IEC Grade B



Applications

Fiber Optic communications system;

Fiber Optic access networks;

CATV

Fiber Optic data communication

Fiber Optic Test Equipments



Options

Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

End face type: UPC, APC



Technical specifications

Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.2 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
Diameter 0.9mm 2.0mm, 3.0mm,etc
Cable material PVC, LSZH
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores,etc
Length 1m, 2m, 3m, 9m,ect
