OM1 OM2 LC pigtail fiber optic 4 Core , OEM Breakout Pigtail Multi mode

China OM1 OM2 LC pigtail fiber optic 4 Core , OEM Breakout Pigtail Multi mode supplier

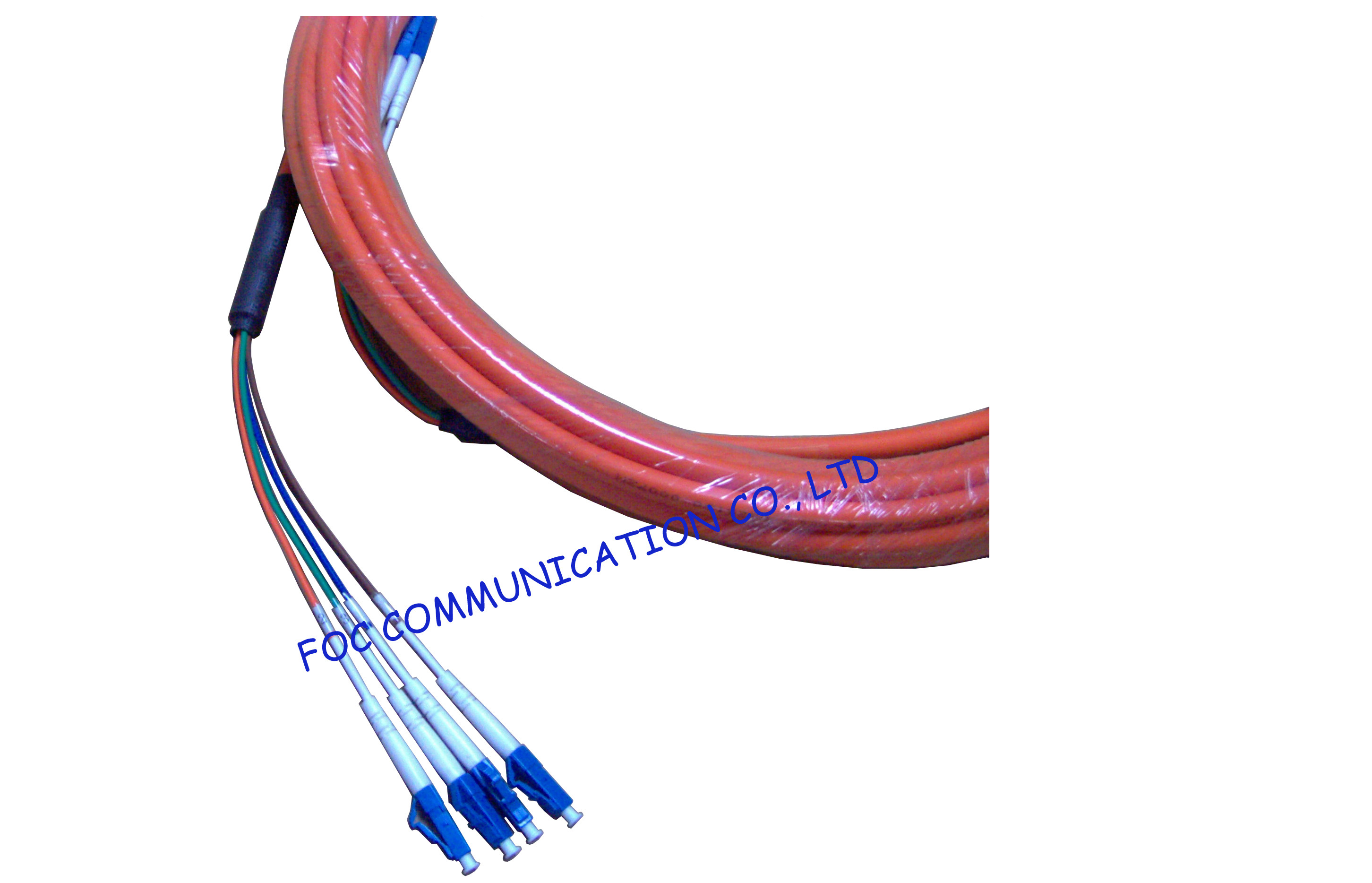

Large Image :  OM1 OM2 LC pigtail fiber optic 4 Core , OEM Breakout Pigtail Multi mode

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO, RoHS Compliant
Model Number: LC/PC MM Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1PCS/Blister Box
Contact Now
Detailed Product Description
Cable: PVC, LSZH, OFNP, OFNR, Hytrel Cores: Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
Fiber: OS1, OS2, OM1, OM2, OM3, OM4 Outer Diameter: 0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Connector: FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO Length: 1M, 2M, 3M, 5M Or As Per Customer Request

OM1 OM2 Fiber Optic Pigtail LC 4 Core Multi mode OEM Breakout Pigtail

FOC COMMUNICATION CO., LTD can provide Breakout optical fiber pigtail, distribution pigtail, ribbon fan out pigtails and so on. Customer label or OEM design are all available as per request.



Fiber Optic Pigtail is a piece of cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment.  There are single mode and multimode pigtails, the wavelength of single mode pigtail is 1310/1550nm and the color is yellow in common. If multimode fiber optic pigtail,  the color is orange. We also provide non-jacketed fiber optic pigtail and jacketed pigtails.



Options

Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack, 48pack)

Cable Jacket: PVC, LSZH, OFNR, OFNP

Cable outer diameter: 0.9mm, 2.0mm, 3.0mm

Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4

Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN

End face type: UPC, APC



Features

Low insertion loss

High return loss

Excellent repeatability

Compact and anti-pull design
Precision fiber optic ferrule
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors



Applications

Local area networks, wide area networks

Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection

Premise Installations
Telecommunication Networks

Fiber to the home



SPECIFICATIONS

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm



Ordering Information

Fiber mode Singlemode (9/125um G652D/G657/G655) or Multimode (62.5/125um OM1,OM2,OM3,OM4)
Fiber count Simplex,Duplex or 4, 6, 8, 12, 24, 48 cores are available
Cable diameter 0.9mm/1.2mm/1.6mm/1.8mm/2.0mm/3.0mm etc.
Cable jacket PVC,LSZH,OFNR,OFNP
Cable color SM-Yellow, OM1/OM2-Orange, OM3-Aqua green, OM4-Purple or OEM color
Cable length(M) Customized
Connector type LC, SC, FC, ST, MU, MTRJ, MPO, SMA, D4 and others
Ferrule Ceramic/Zirconia ferrule, made in China or Japan
Polish/Endface PC, UPC, APC
Housing/boot color Standard(Blue/Beige/Green) or OEM color
Packing Multi-piece or one piece type available,Normally polybag+carton box, can be customized



OM1 OM2 LC pigtail fiber optic 4 Core , OEM Breakout Pigtail Multi mode



Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails
