SC To LC G.652D SM Duplex Fiber Optic Patch Cables Indoor Type With LSZH Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | SM Duplex Fiber Patch Cord SC-LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM | Cable Material: | LSZH |
|---|---|---|---|
| Cable Diameter: | 2.0mm | Connector: | SC/UPC-LC/UPC |
| Cores: | Duplex | Length: | 5M |
| High Light: | simplex fiber patch cord,multimode fiber optic cable |
||
Product Description

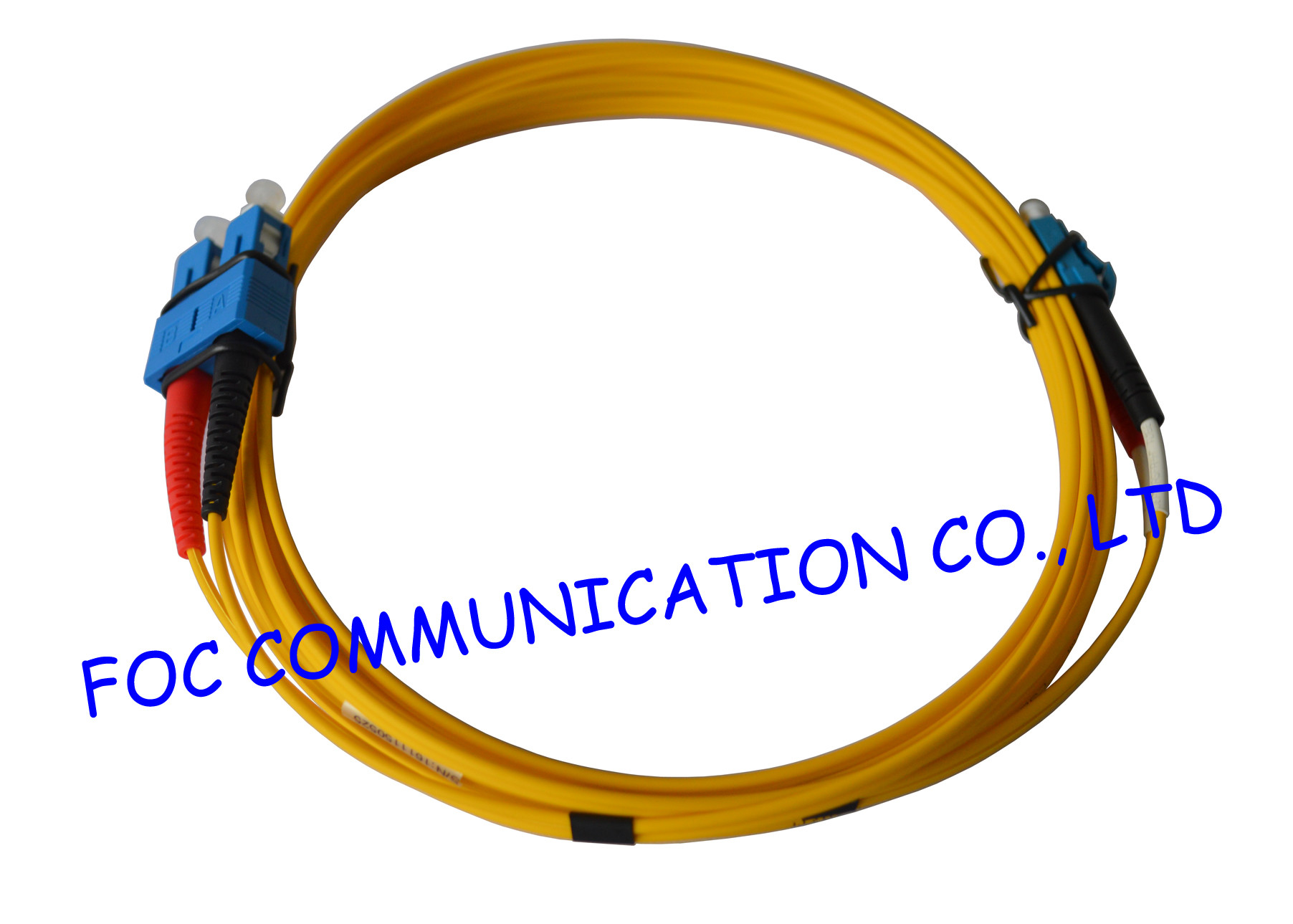

SC To LC G.652D SM Duplex Fiber Optic Patch Cables Indoor Type With LSZH Jacket
FOC COMMUNICATION CO., LTD offer a complete selection of SC-LC fiber optic cable assemblies, these SC-LC fiber optic patch cables including single-mode and multimode types in simplex and duplex versions. Cables jacket can be Riser rated or Plenum rated, with LSZH cable and PVC options, and are all RoHS compliant cables. We supply related standard and custom made fiber optic cables with competitive prices and fast delivery.
G.652D SM duplex indoor type SC/UPC-LC/UPC patch cable with LSZH jacket cable is used to connect the device to another for signal routing. It is composed of a fiber optic cable assembled with various connectors on both ends. We FOC COMMUNICATION CO., LTD provide all types of fiber optic patch cords including single mode, multimode, simplex, duplex, multi core patch cords, armored patch cords and waterproof patch cords. The main connectors are FC, SC, LC, ST, MU, MTRJ, E2000, MPO, MTP and so on.
Key Features
100% Optically Inspected and Tested for Insertion Loss
Pull Proof Jacket
ROHS Compliant
Single mode duplex fiber optic cable
High precision ceramic fiber optic ferrule
100% optically tested to ensure high performance
Cable color yellow
Ordering information
1.Connector one, LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO,
Connector two LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2.Ferrule interface type: UPC,APC
3.Fiber type; singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4.Fiber cable diameter(mm):Φ0.9, Φ2.0 ,Φ3.0
5.Cable length: Customized length
Technical Specifications
| Fiber Mode: | Single-mode 9/125 |
| Insertion Loss: | 0.2dB (Typical), 0.3dB (Max UPC) |
| Back Reflection: | -50dB (UPC), -65dB (APC) |
| Operating Temperature: | -20°C to +70°C |
| Cable Diameter: | 2mm |
