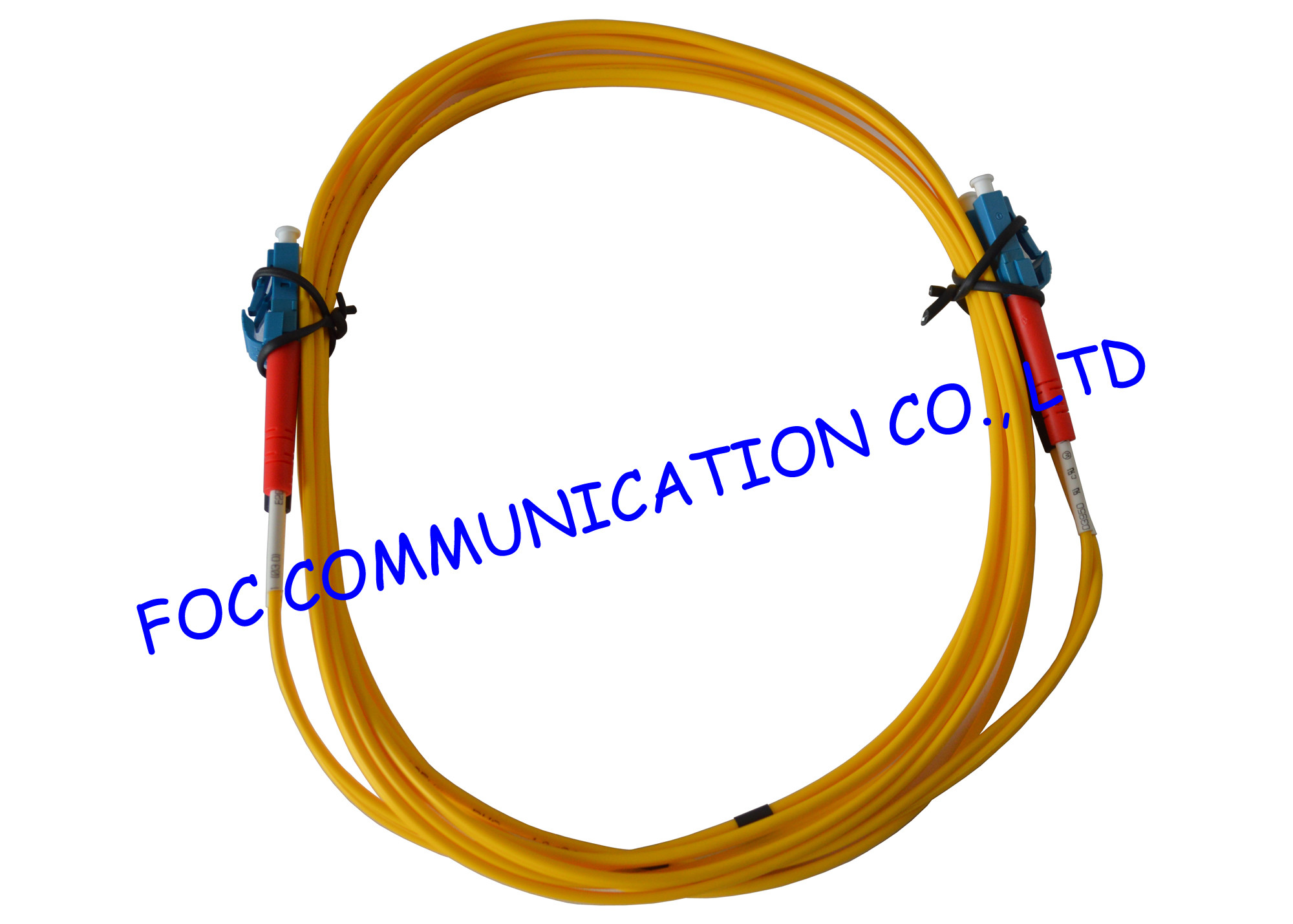

Duplex 2.0mm fiber optic patch cord lc lc For FTTH , Low Insertion Loss
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | SC/UPC-LC/UPC SM Duplex Fiber Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM, OM1, OM2, OM3, OM4 | Cable Material: | PVC, LSZH, OFNP, OFNR, Hytrel |
|---|---|---|---|
| Cable Diameter: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm | Connector: | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ |
| Cores: | Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | multimode fiber optic cable,fiber optic jumper |
||
Product Description
Duplex 2.0mm fiber optic patch cord lc lc For FTTH , Low Insertion Loss
FOC COMMUNICATION CO., LTD produces a large range of fiber optic patch cord and pigtails, such as SC, LC, FC, ST, MU, E2000, MPO, in both singlemode and multimode fiber. Available in simplex, duplex, 4cores, 12core, 24cores and other multicores.
LC optical fiber patch cords are with 1.25mm diameter ferrules for compact multiple optical connectors and self-retentive mechanism for backplane applications. It’s application is for high-speed data communications, voice networks, telecommunications and high-density DWDM applications. All Fiber Patch Cords can be ordered in various custom lengths in addition to the standard lengths displayed.
When high density is required, recommends the duplex LC based products. Optical fiber choices include singlemode and multimode in both 62.5/125 and the new 50/125 core sizes.
Our LC optical fiber cord are compliant to IEC and EIA/TIA standards, they are compatible to use with equipment from other companies. We supply the LC fiber optic connectors, jumper cables, adapters, LC attenuators and related LC fiber optic components.
Features
1.IEC Compliant
2.Telcordia compliant
3.Low insertion loss
4.High return loss
5.Excellent repeatability
6.Compact and anti-pull design
7.Precision fiber optic ferrule
8.High precision exact alignment
Applications
1.Telecommunication Networks
2.Fiber to the home
3.Local area networks, wide area networks
4.Optical Switch interface connections
5.Gigabit Ethernet
6.CATV and WAN
7.Testing Instrument, active device connection
8.Premise Installations
SPECIFICATIONS
|
Connector |
FC, SC, ST, LC |
|
|
UPC |
APC |
|
|
Insertion Loss |
≤0.3dB |
|
|
Return Loss |
≥50dB |
≥60dB |
|
Cable Outer Diameter(mm) |
￠0.9, ￠2.0, ￠3.0 |
|
|
Durability |
≤0.3dB(1000 matings) |
|
|
Interchangeability |
≤0.2dB |
|
|
Operating Temperature |
-40℃～+80℃ |
|
Or
