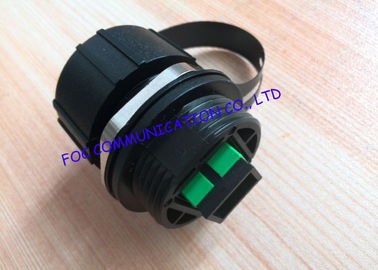

ODVA Socket IP67 Waterproof SC / APC Cable Fiber Optic FTTA Use UV Resistent
ODVA fiber optic cables are IP67-rated rugged cables, they are used in FTTA, industrial, military, and many similar indoor/ outdoor harsh environments. ODVA SC fiber patch cables are duplex type cables, the connector features its spring loaded metal protection shutter and high precision fiber ferrules, ODVA SC is available in both single mode and multimode versions with custom cables.
environmental sealing ratings and are the ideal choice for a low cost, easy to use solution in Industrial, Fiber to the Antenna (FTTA), or any other harsh environmental applications. Our offering includes SC/Simplex (1-fiber), LC/Duplex (2-fiber) and MPO male or female (1 to 12-fibers).
The ODVA-SC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The ODVA-SC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense.
Features
Rugged IP67 rated enclosure
Exceptional optical performance in a high density LC standard compliant connector. Integrated caps on the connectors and shutters in the couplers provide both laser eye safety and end face protection during mating/demating
Bayonet-style self-aligning, keyed housing
Ease of use in all mating situations
Standards
IEC 50516-2-1 "Industrial connector sets and interconnect components to be used in optical fiber control and communication systems".
Avilability Types
Terminated connector
Connector set, (to be terminated with Diamond special equipment)
- IP67 rated to ensure protection from dust and water immersion
- LC connector qualified to Telcordia GR-326 and TIA/EIA 568B.3
- Temperature range of -40°C to +85°C
- Bayonet-style mechanical lock
- Flame retardant materials per UL 94 V-0
Applications
- Harsh environments where chemicals, corrosive gases and liquids are
commonplace
- Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
- Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
- Mobile routers and internet hardware
Connector Parameters
| Item | Type | Parameter |
| Insertion Loss | SM | ≤0.30dB |
| MM | ≤0.30dB | |
| Return Loss | SM | ≥50dB |
| MM | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB | |
| Temperature Stability(-40℃～85℃) | Additional Loss≤0.2dB, | |
| Free fall resistance | 500 falls onto concrete from 1.2M height | |
| Bump resistance | 4000 bumps @ 40g acceleration | |
| Tensile Strength | Tensile of 1500N, cable dependent | |
| Operating temperature | -40 to +70°C | |
| Storage temperature | -55 to +85°C | |
Technical Test Data
|
Test item |
Test condition |
|
Wet-resistance |
Temperature:85ºC/relative humidity 85％/14days/insertion loss≤0.1dB |
|
Temperature change |
Temperature: -40ºC~+75ºC/relative humidity 10％-80％ /42 repetitions/14days/ insertion loss≤0.1dB |
|
Water resistance |
Temperature: 43ºC, /PH5.5,/ 7days /insertion loss≤0.1dB |
|
Vibrancy |
Swing 1.52mm/frequency 10Hz～55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB |
|
Load bend |
0.454kg load/100circles insertion loss≤0.1dB |
|
Load torsion |
0.454kg load/10 circles insertion loss ≤0.1dB |
|
Tensility resistance |
0.23kg pull (nakedness fiber),1.0kg(with shell ) insertion≤0.1dB |
|
Strike |
High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB |
|
Reference standard |
Bellcore TA-NWT-001209 insertion loss≤0.1dB |
Rema Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.
Order Ordering information
|
Interface |
Connector |
Length |
OD |
Color of jacket |
Jacket |
Fiber Type |
Cores |
|
P-PC |
FC-FC |
1M |
0.9mm |
B-Black |
P-PVC |
SM |
Simplex |
|
U-UPC |
SC-SC |
3M |
1.6mm |
Y-Yellow |
L-LSZH |
MM 50/125um |
Duplex |
|
A-APC |
LC-LC |
5M |
1.8mm |
W-White |
OFNR |
MM 62.5/125um |
4cores |
|
|
ST-ST |
10M |
2.0mm |
Customized |
OFNP |
MM OM3 |
6cores |
|
|
MU-MU |
Customized |
3.0mm |
|
Customized |
MM OM4 |
8cores |
|
|
MTRJ-MTRJ |
|
Customized |
|
|
|
12cores |
|
|
E2000-E2000 |
|
|
|
|
|
24cores |
|
|
DIN |
|
|
|
|
|
Customized |
|
|
Customized |
|
|
|
|
|
|
