LGX Type Fiber PLC Splitter Rack Mount Cassette Box Type SC / UPC Low Insertion

China LGX Type Fiber PLC Splitter Rack Mount Cassette Box Type SC / UPC Low Insertion supplier
LGX Type Fiber PLC Splitter Rack Mount Cassette Box Type SC / UPC Low Insertion supplier LGX Type Fiber PLC Splitter Rack Mount Cassette Box Type SC / UPC Low Insertion supplier

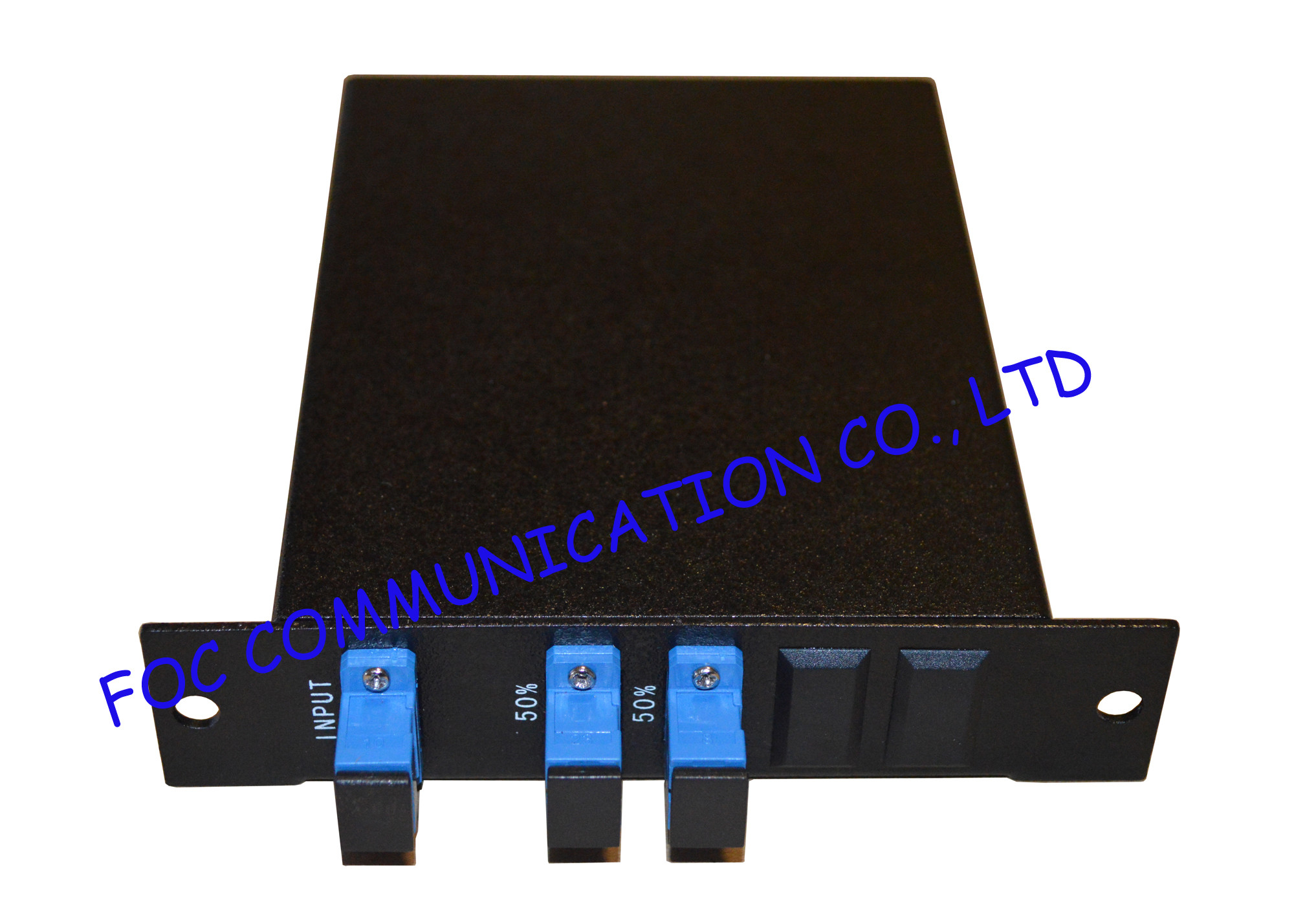

Large Image :  LGX Type Fiber PLC Splitter Rack Mount Cassette Box Type SC / UPC Low Insertion

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO Certification and RoHS Compliant
Model Number: 1*2 LGX Type PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1pcs/carton box
Payment Terms: Western Union, T/T
Supply Ability: 90000PCS/MONTH
Contact Now
Detailed Product Description
Port: 1*2, 1*4, 1*8 Connector Type: SC/UPC,SC/APC,FC/UPC,FC/APC,LC/UPC
Cable Material: PVC, LSZH Fiber Type: G.652D, G.657A

LGX Type Fiber PLC Splitter Rack Mount Cassette Box Type SC / UPC Low Insertion



LGX splitter is design in a LGX module which is used for LGX chassis application. It is also terminated with adapters and according to different requirements, LGX modules can be inserted into the chassis. In addition, LGX splitter can also installed in rack mount chassis.



Planar lightwave circuit splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the advantages of small volume, wide bandwidth, high reliability, excellent uniformity. Optical fiber splitter is especially suitable for passive optical networks (EPON, BPON, GPON) which is connected with the terminal equipment and realize the optical power distribution.



As one of the most important components of PON (Passive Optical Network) systems, the market of PLC (Planar Lightwave Circuit) splitters has grown rapidly. If you are the first time to buy PLC splitters, you might be curious about the package type of it. Actually, it is not as complex as you think.



FOC COMMUNICATION CO., LTD provides 1*N and 2*N fiber optic splitters. And these PLC splitters can be made as per customer request.



We can produce many serials of PLC splitters including
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare Fiber PLC Splitters
Blockless Fiber Optical PLC Splitter
ABS box Fiber Optic PLC Splitter
LGX Box Optical PLC Splitters
Cassette Box PLC Splitter
Pallet Type Optical Fiber PLC Splitter
Rack Mount PLC Splitter for PON application
Wall Mount PLC Splitters



Features

Low Insertion loss
Low Polarization Dependent Loss
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209



Applications

FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Optical Signal Distribution
Test Equipments


Optical Specifications

Parameter

Unit

Specification (P Grade)

Channel Number



1X2

1X4

1X8

1X16

1X32

1X64

Operation Wavelength

nm

1260~1650

Insertion Loss (Max.)

dB

4.3

7.4

10.7

13.9

17.2

21.5

Uniformity (Max.)

dB

0.5

0.8

1.0

1.4

1.6

2.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity

dB

≥50

Operating Temperature

-40~+85

Storage Temperature

-40~+85



Parameter

Unit

Specification (P Grade)

Channel Number



2X2

2X4

2X8

2X16

2X32

2X64

Operation Wavelength

nm

1260~1650

Insertion Loss (Max.)

dB

4.3

7.6

11.0

14.8

17.9

21.5

Uniformity (Max.)

dB

0.8

1.0

1.2

1.5

1.8

2.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity

dB

≥50

Operating Temperature

-40~+85

Storage Temperature

-40~+85

Note: All the data above does not include connectors.

Ordering Information

PLC















Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5--2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others
