CATV LAN LSZH Fiber PLC Splitter Patch Panel SC APC Rack Mount
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | ISO Certification and RoHS Compliant |
| Model Number: | Rack Mount 1*32 PLC Splitter Patch Panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1pcs/carton box |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 90000PCS/MONTH |
|
Detail Information |
|||
| Fiber Type: | G.657A | Cable Material: | LSZH |
|---|---|---|---|
| Tube: | Bare Fiber, 0.9mm, 2.0mm, 3.0mm | Connector Type: | SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC |
| Port: | 1*2, 2*2, 1*4, 2*4, 1*8, 2*8, 1*16, 2*16, 1*32, 2*32, 1*64, 2*64 | Pigtail Length: | 0.5M, 1.0M, 1.5M |
| High Light: | LSZH Fiber PLC Splitter,CATV LAN Fiber PLC Splitter,SC APC Rack Mount PLC Splitter |
||
Product Description

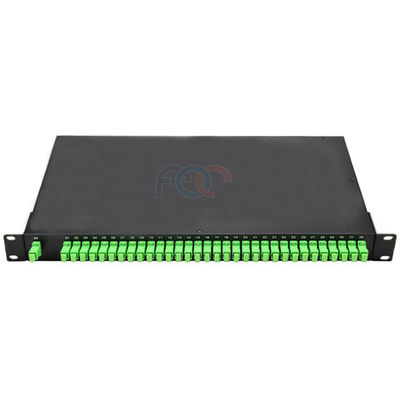

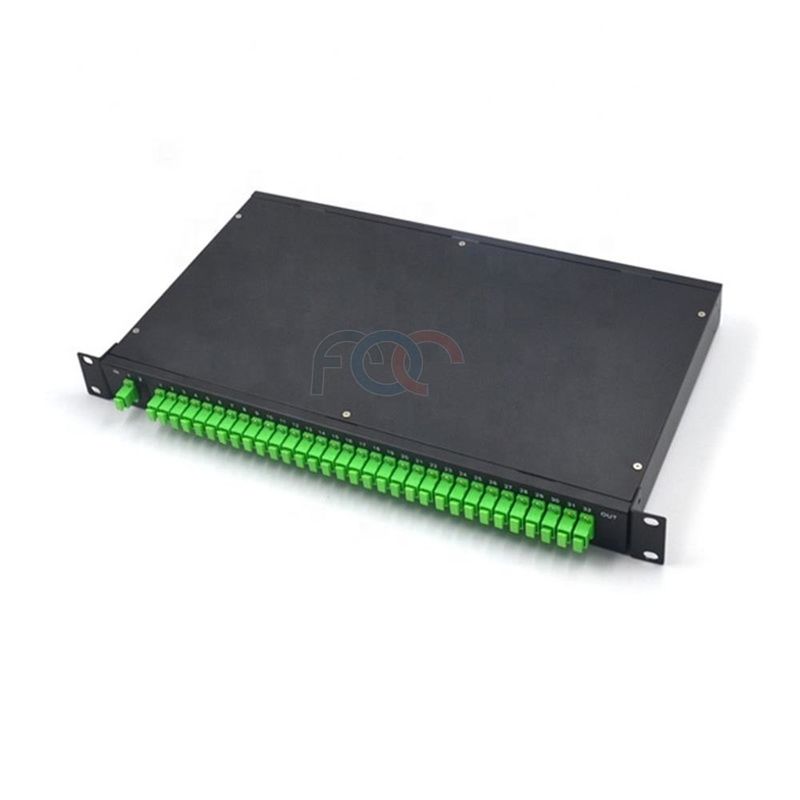

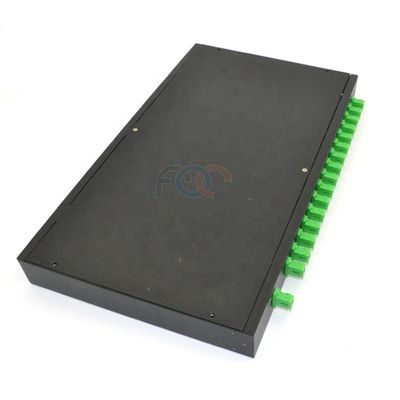

Rack Mount Fiber PLC Splitter Patch Panel SC / APC With 1pcs of 1 * 32 Splitter
PLC (Planar Lightwave Circuit) splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
Rack Mount PLC Splitter is the splitter which is packed in the rack mount fiber optic patch panel. It storages the additional cable, dustproof and it is easy to mount and mainteinance.
1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Our PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
This PLC type allows to be equipped in 19'' standard integrated distribution cabinet or network cabinet with opening rack. PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
Features
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
Central office/headend
Network monitoring and testing
Passive Optical Networks
CATV, LAN, WAN
Test Instrument
Optical Specifications
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|||||
Note: All the data above does not include connectors.
Ordering Information
|
PLC |
|
|
|
|
|
|
|
|
Port |
Fiber Type |
Input |
Output |
Pigtail Length |
Connector |
|
|
0102=1x2 |
1=G652D, 2=G657A |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter |
05-20=0.5--2.0m, 0=Adapter, X=Others |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
