1x16 Rack Mount PLC Splitter FC UPC Single Mode G657A Optical Fiber Splitter

1x16 Rack Mount PLC Splitter FC UPC Single Mode G657A Optical Fiber Splitter

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO Certification and RoHS Compliant
Model Number: 1*16 PLC Splitter Rack Mount Type

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1pcs/blister box
Payment Terms: Western Union, T/T
Supply Ability: 90000PCS/MONTH
Get Best Price Contact Now

Detail Information

Fiber Type: G657A Type: Rack Mount Type
Application: FTTH FTTB FTTX Network Operating Temperature: -40℃ To 85℃
Connector: SC/LC/FC/ST Name: Rack Mount PLC Splitter
High Light:

1x16 Rack Mount PLC Splitter

,

FC UPC Rack Mount PLC Splitter

,

G657A Optical Fiber Splitter

Product Description

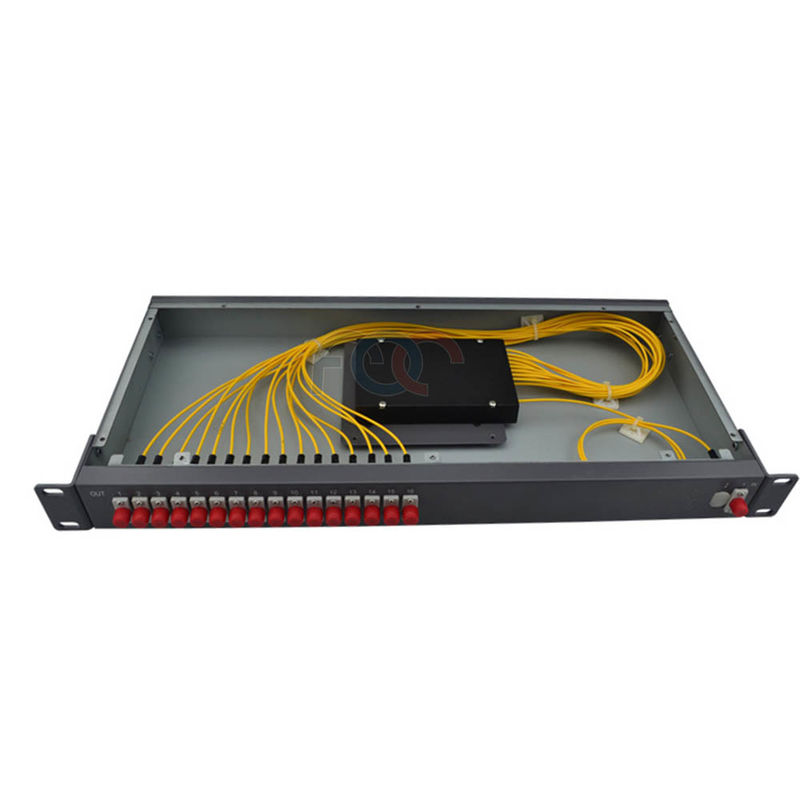

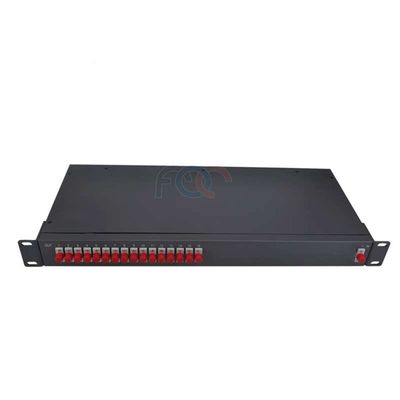

1 x 16 Rack Mount PLC Single-Mode Optical Fiber Splitter FC / UPC



Planar light-wave circuit (PLC) splitter is an optical power management device fabricated by using silica optical waveguide technology. It features a compact size, high reliability and wide operating wavelength range with good channel-to-channel uniformity. These PLC units are widely used in PON networks for optical signal power splitting. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


FOC COMMUNICATION CO., LTD provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.



Features

Package Style Rack Mount
Configuration Type 1x32
Fiber Type Single Mode G.657A1
Connector Type FC/UPC

Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209



Applications

FTTX Systems
CATV Networks
Analog/Digital Passive Optical Networks
Other Applications in Fiber Optic Systems
Indoor Use Only


Optical Specifications

Parameter

Unit

Specification (P Grade)

Channel Number



1X2

1X4

1X8

1X16

1X32

1X64

Operation Wavelength

nm

1260~1650

Insertion Loss (Max.)

dB

4.3

7.4

10.7

13.9

17.2

21.5

Uniformity (Max.)

dB

0.5

0.8

1.0

1.4

1.6

2.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity

dB

≥50

Operating Temperature

-40~+85

Storage Temperature

-40~+85



Parameter

Unit

Specification (P Grade)

Channel Number



2X2

2X4

2X8

2X16

2X32

2X64

Operation Wavelength

nm

1260~1650

Insertion Loss (Max.)

dB

4.3

7.6

11.0

14.8

17.9

21.5

Uniformity (Max.)

dB

0.8

1.0

1.2

1.5

1.8

2.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity

dB

≥50

Operating Temperature

-40~+85

Storage Temperature

-40~+85

Note: All the data above does not include connectors.

Ordering Information

PLC















Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5--2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others



We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
