Duplex SM G.655 optical fiber patch cord FC / UPC - LC / UPC For Telecoms

China Duplex SM G.655 optical fiber patch cord FC / UPC - LC / UPC For Telecoms supplier
Duplex SM G.655 optical fiber patch cord FC / UPC - LC / UPC For Telecoms supplier Duplex SM G.655 optical fiber patch cord FC / UPC - LC / UPC For Telecoms supplier

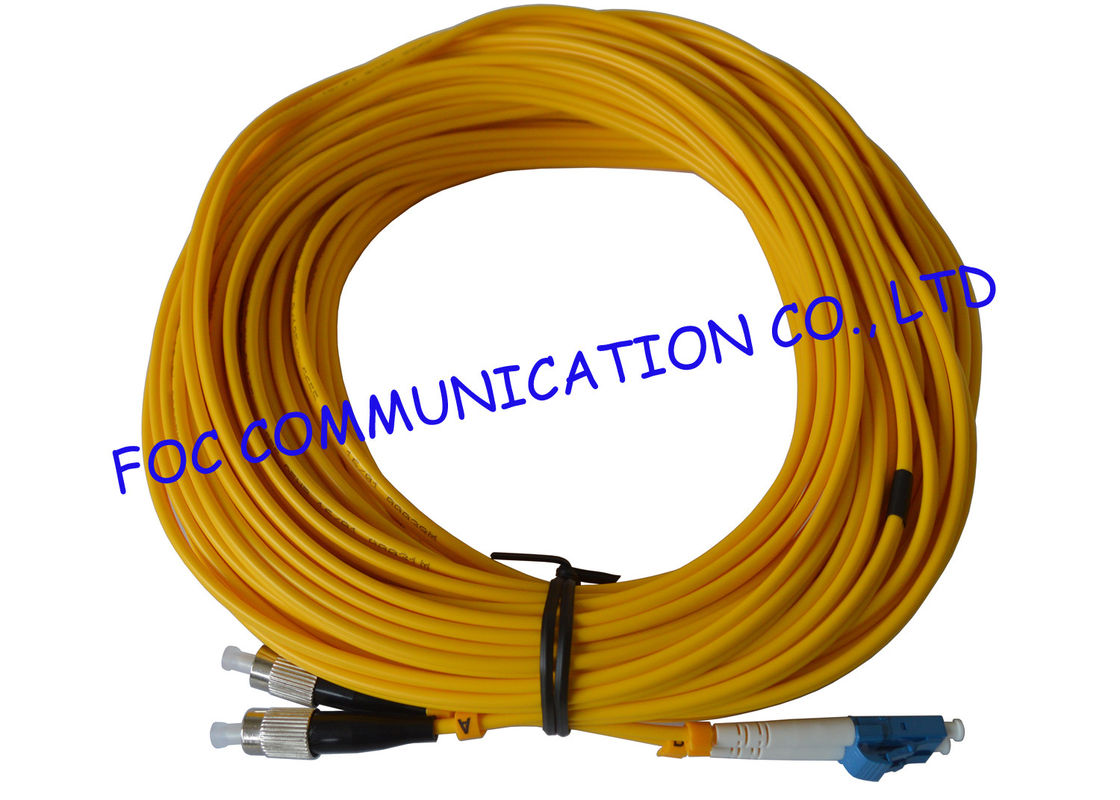

Large Image :  Duplex SM G.655 optical fiber patch cord FC / UPC - LC / UPC For Telecoms

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: FC - LC Fiber Optic Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Contact Now
Detailed Product Description
Fiber Type: SM G.655 Fiber Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 3.0mm Connector: FC/UPC, LC/UPC
Cores: Duplex Length: 1M, 2M, 3M, 5M Or As Per Customer Request

Duplex SM G.655 optical fiber patch cord FC / UPC - LC / UPC For Telecoms

LC Connectors, Adapters and Cable Assemblies meet the growing demand for small form factor, high-density fiber optic connectivity with simplex, duplex, single mode and multimode options.



LC connectors reduce space requirements by 50%, over 2.50mm ferrule connectors, without sacrificing performance. LC connectors are available in industry standard beige (multimode), blue (single mode) and green (angle polish) colors, and will accommodate 900μm buffered fiber, 1.60mm, 2.00mm, or 3.00mm jacketed cable.



With its six-position tuning feature, the connector may be used to achieve unprecedented insertion loss performance by optimizing the alignment of the fiber cores. Additionally, 45° and 90° boot options are available for 1.60mm and 2.00mm jacketed cable.



Eight-port, quad, duplex and simplex LC mating adapters are available in blue, beige, green and aqua colors. The adapters are available in snap-mount or screw-mount configurations, ceramic or metal alignment sleeves, and can also be provided with safety shutters on one or both sides to help prevent eye injuries.



Loopback adapters are also available for testing SFF and SFP devices in numerous applications.



Tight-jacketed cable LC connectors are designed with an elongated internal ferrule plug, which allows the fiber to move in tandem with the internal plug, thereby reducing potential for micro bends, increased insertion loss and fiber breakage.



Features

Low insertion loss and back reflection loss

Ferrule end surface pre-domed

UL-rated plastic housing

Free-floating ceramic ferrule

Zirconia sleeves or Phosphor bronze sleeves

LC Quad slot, can save space

CE RoHS FCC compliant

100% test before shipment

Serialized & Individual Test Records

Meets ROHS and Bell core GR 326-core standards

Custom Configurations Available at No Extra Charge

Available in fiber bunch, ribbon fan-out, pigtail available



Our Advantage

Manufacturer

1pc MOQ

Zero-Defects QA Program
High Quality Materials
Advanced Equipment &Tooling
In-house Engineering
Expert Technical Support
100% Product Testing
100% Product Guarantee
Fast Turn Around
Same-Day Manufacturing Available



We supply all type fiber optic adapter, pigtail and patch cord with telecom standard:

FC / LC / SC / ST / E2000 / MU / DIN



Specifications

Alignment Sleeve Ceramic
Housing Material Zn-Alloy or Cu-Ni (metal) & Engineering Plastic Blue
Insertion Loss 0.2dB
Durability 500 matings, 0.2dB max. increase
Retention Force 200~600grams
Operating Temperature -40~+80°C



Ordering Information

Fiber Type Single mode
9/125um-G652D
9/125um-G655, 9/125um-G657A,G657A2,G657B2,G657B3
Multimode
50/125um-OM2
62.5/125um-OM1
50/125um-OM3
50/125um-OM4
Fiber Brand YOFC, Corning, OFS...
Connector type SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN
Cord type Simplex, Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter 0.9mm, 2.0mm, 3.0mm....
Cable jacket PVC, LSZH, OFNR, OFNP
Length(M) 0.3m,1m,2m,5m,10m,25m,50m,100m



Duplex SM G.655 optical fiber patch cord FC / UPC - LC / UPC For Telecoms





 Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
