MU Optical Fiber Patch Cord LSZH High Strength Aramid Yarn Low Insertion Loss
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | MU SM Simplex Fiber Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM, OM1, OM2, OM3, OM4 | Cable Material: | PVC, LSZH, OFNP, OFNR, Hytrel |
|---|---|---|---|
| Cable Diameter: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm | Connector: | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ |
| Cores: | Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | simplex fiber patch cord,fiber optic jumper |
||
Product Description

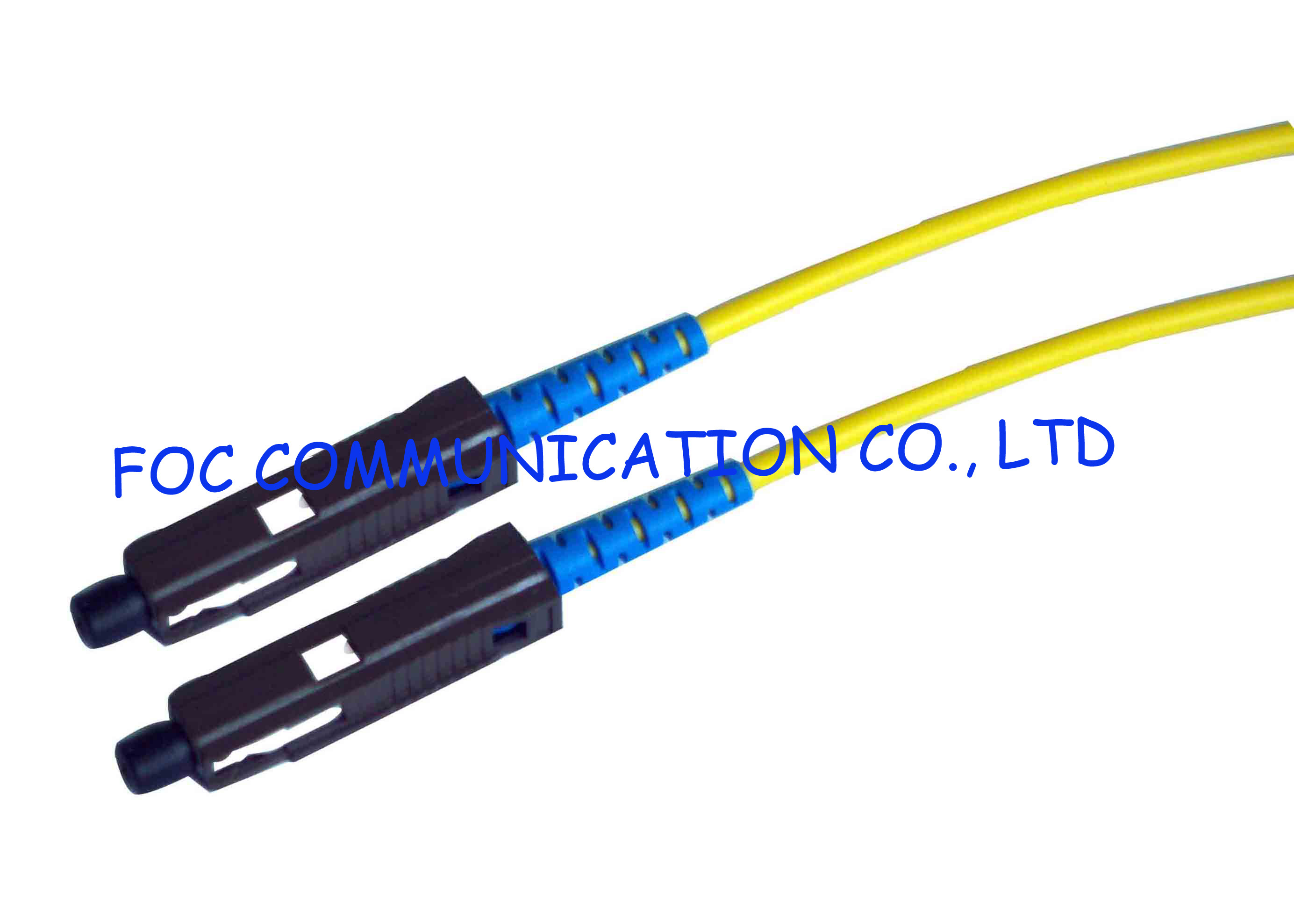

MU Optical Fiber Patch Cord LSZH High Strength Aramid Yarn Low Insertion Loss
The MU SM simplex fiber optic patch cord, these cables are with 9/125 single mode fiber, and connector types are PC, UPC or APC optional. The MU simplex single mode optical fiber patch cord are fully compatible with industrial standards; they are good prices, fast delivery and good looking and packing.
MU is the fiber optic connector invented by Lucent and it is small form factor connector suit for dense installations. MU has single mode and multimode versions, simplex or duplex, PC, UPC or APC. MU features compact, pull-proof design and RJ-45 style interface. Our MU optical fiber cord are compliant to IEC and EIA/TIA standards, they are compatible to use with equipment from other companies. We supply the MU fiber optic connectors, jumper cables, adapters, MU attenuators and related MU fiber optic components.
MU optical fiber patch cords are widely used in fiber optic systems; especially MU single mode products are very popular. MU standard fiber optic connectors are used for telecommunications, CATV, LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors. MU fiber optic connectors comply with IEC 61754-13 & CECC 86 115-801 standards. They are well known for general, average applications. We supply single mode and multimode version MU fiber jumper cables and MU fiber optic components.
Features
Low insertion loss(≤0.20dB)and high return loss(≥55 dB)
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment connector
Applications
Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV,FTTH,FTTB,FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation
SPECIFICATIONS
| Single mode | Multimode | |
| Insertion Loss | Typical <=0.2dB, Maximum<=0.3dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) ≥60 dB (APC) |
|
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -20 to + 70°C | -20 to + 70°C |
ORDERING OPTIONS
| Connector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
| Beige | 0.9mm | Beige | 9/125μm (SM) | Simplex | PC | Customized |
| Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC | |
| Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out (4f) | ||
| Green | Fan-out (6f) | |||||
| Gray | Fan-out (8f) | |||||
| Red | Fan-out (12f) | |||||
| White |
