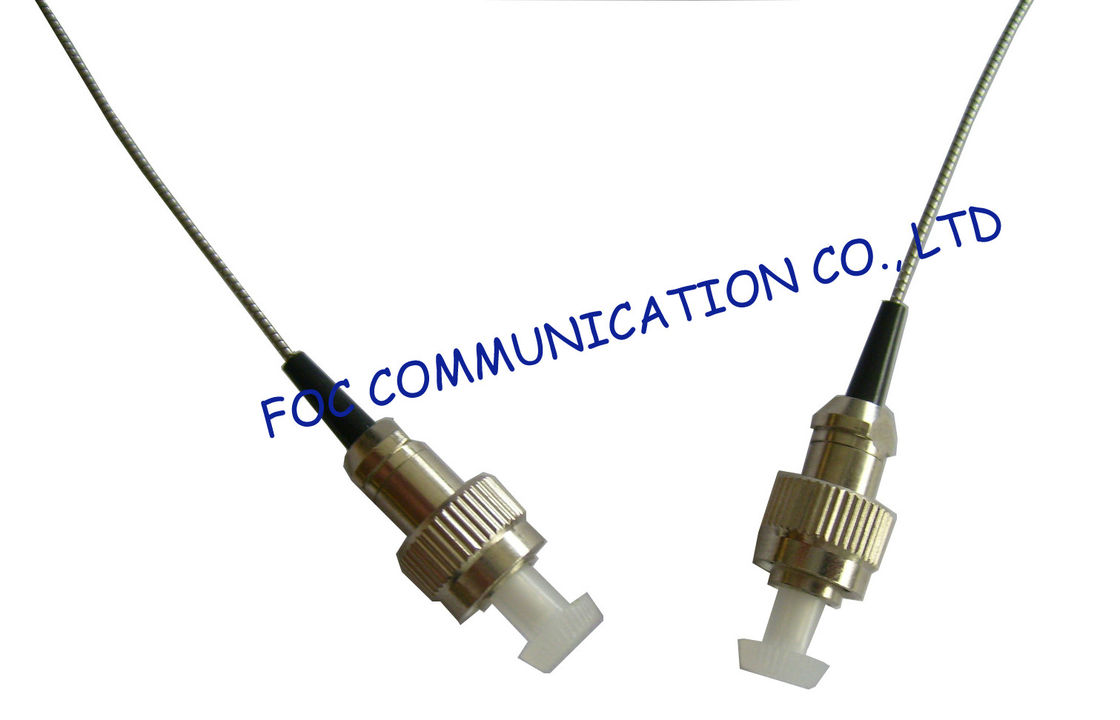

FC / UPC 0.9mm Fiber Optic Patch Cord , Stainless Steel Tube Soft Armored Patch Cord
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Armored FC/UPC SM Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM | Cable Material: | LSZH |
|---|---|---|---|
| Cable Diameter: | 0.9mm | Connector: | FC/UPC |
| Cores: | Simplex | Length: | 3M |
| High Light: | simplex fiber patch cord,multimode fiber optic cable |
||
Product Description
FC / UPC 0.9mm Fiber Optic Patch Cord , Stainless Steel Tube Soft Armored Patch Cord
With stainless steel tube prevents optic fiber from damage, which improves security and stability of the system, the fiber optic armored patch cord can be deployed directly in different harsh environment, without additional tube for protection, save space, reduce construction cost, and make the maintenance more conveniently.
FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.
Features
Soft, easy to bend, convenient for connection
Various fiber optic connectors available
Micro diameter stainless steel tube for protection
High resistance of tensile strength, pressure, rodent bite
Without damage by construction
Ensure transmission power and avoid additional attenuation
Prevent optic fiber from destroy by harsh environment and improper operation
Application
Fiber optic communication system
Optical active component and equipment
Test equipment, Military industry,
Measuring equipments
CATV
FTTH
LAN
Specifications
Connector Type | FC,SC,ST,LC,MTRJ | ||
Endface Type(nm) | PC | UPC | APC |
Insertion Loss(dB) | ≤0.20 | ≤0.20 | ≤0.30 |
Repeatability(dB) | ≤0.10 | ||
Exchangeability(dB) | ≤0.20 | ||
Return Loss(dB) | ≥45 | ≥50 | ≥60 |
Fiber Type | SM, MM | ||
Operation Temperature(℃) | -25℃~ +70℃ | ||
Storage Temperature(℃) | -40℃~ +85℃ | ||
Durability(time) | >1000 times | ||
Industry Standard | Telcordia GR-326-CORE | ||
Order Ordering information
Interface | Connector | Length | OD | Color of jacket | Jacket | Fiber Type | Cores |
P-PC | FC-FC | 1M | 0.9mm | B-Black | P-PVC | SM | Simplex |
U-UPC | SC-SC | 3M | 1.6mm | Y-Yellow | L-LSZH | MM 50/125um | Duplex |
A-APC | LC-LC | 5M | 1.8mm | W-White | OFNR | MM 62.5/125um | 4cores |
| ST-ST | 10M | 2.0mm | Customized | OFNP | MM OM3 | 6cores |
| MU-MU | Customized | 3.0mm |
| Customized | MM OM4 | 8cores |
| MTRJ-MTRJ |
| Customized |
|
|
| 12cores |
| E2000-E2000 |
|
|
|
|
| 24cores |
| DIN |
|
|
|
|
| Customized |
| Customized |
|
|
|
|
|
|
