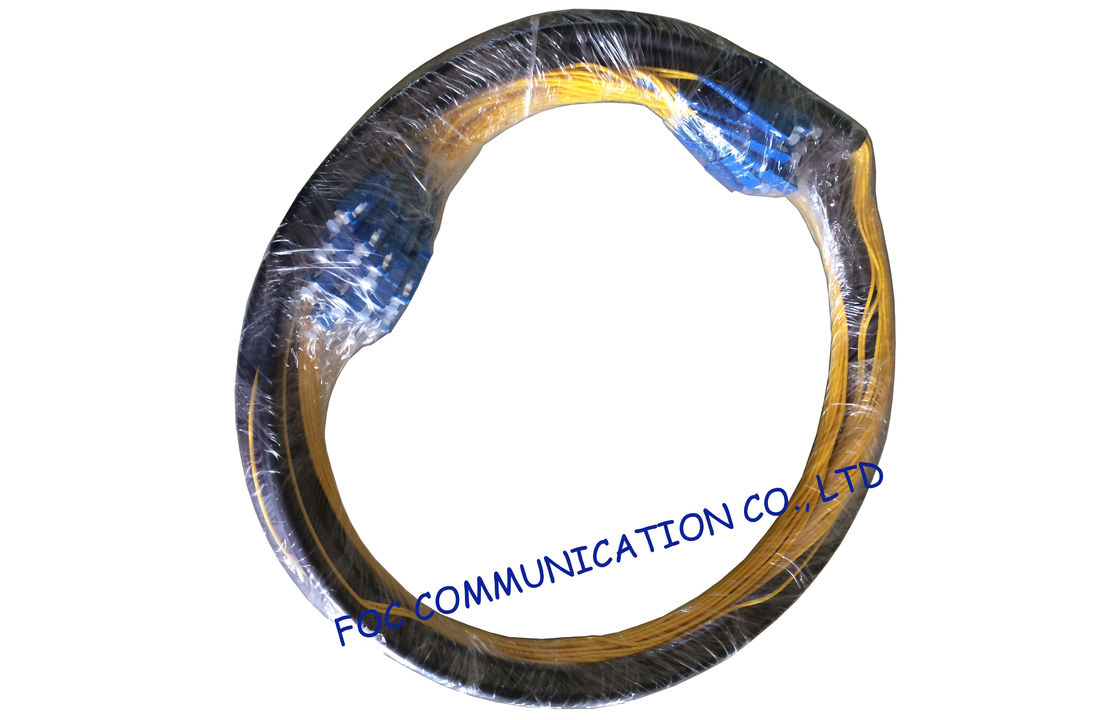

12Core Armored Fiber Optic Jumpers Outdoor Type SC SM UV Resistant
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Armored Patch Cord SC/UPC SM 12Core |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM | Cable Material: | PE Sheath |
|---|---|---|---|
| Cable Diameter: | 3.0mm Breakout Cable | Connector: | SC/UPC |
| Cores: | 12Core | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | multimode fiber optic cable,fiber optic jumper |
||
Product Description
12Core Armored Fiber Optic Jumpers Outdoor Type SC SM UV Resistant
12Core outdoor armored fiber optic jumpers can be deployed directly in different harsh environment, without additional tube for protection, save space, reduce construction cost and make the maintenance more conveniently. Furthermore, the outdoor armored cable has the coated steel tape inside and parallel reinforcing steel wire to prevent optical fiber from damage, which improves security and stability of the system. The jacket of outdoor cable is PE sheath.
Features
Prevent optical fiber from destroy by harsh environment
Prevent optical fiber from destroy by improper operation
Coated steel tape and steel wire for protection
High resistance of tensile strength, pressure and rodent bite
Without damage by construction
Ensure transmission power and avoid additional attenuation
Applications
Fiber Optic Communication System
LAN, WAN
Military Industry
CATV, FTTH
Optical Active Component and Equipment
Specifications
|
Connector Type |
FC, ST, SC,LC,MTRJ, SMA |
||
|
Endface Type(nm) |
PC |
UPC |
APC |
|
Insertion Loss(dB) |
≤0.20 |
≤0.20 |
≤0.30 |
|
Repeatability(dB) |
≤0.10 |
||
|
Exchangeability(dB) |
≤0.20 |
||
|
Return Loss(dB) |
≥45 |
≥50 |
≥60 |
|
Fiber Type |
SM, MM |
||
|
Operation Temperature(℃) |
-25℃~ +70℃ |
||
|
Storage Temperature(℃) |
-40℃~ +85℃ |
||
|
Durability(time) |
>1000 times |
||
|
Industry Standard |
Telcordia GR-326-CORE |
||
Ordering information
|
Interface |
Connector |
Length |
Color of jacket |
Type of jacket |
Fiber Type |
Cores |
|
P-PC |
SC-SC |
1M |
B-Black |
P-PVC |
SM |
1 |
|
U-UPC |
LC-LC |
2M |
Y-Yellow |
L-LSZH |
MM 50/125um |
2 |
|
A-APC |
MTRJ-MTRJ |
Customized |
W-White |
PE |
MM 62.5/125um |
4 |
|
|
FC-FC |
|
X-Customized |
X-Customized |
MM OM3 |
6 |
|
|
ST-ST |
|
|
|
|
8 |
|
|
SMA-SMA |
|
|
|
|
12 |
