• Low insertion Loss Breakout Fiber Patch Cable 6 Core With FC Connectors
Low insertion Loss Breakout Fiber Patch Cable 6 Core With FC Connectors

Low insertion Loss Breakout Fiber Patch Cable 6 Core With FC Connectors

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: Breakout Fiber Patch Cable 6Core With FC Connectors

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Get Best Price Contact Now

Detail Information

Fiber Type: SM, OM1, OM2, OM3, OM4 Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request
High Light:

simplex fiber patch cord


multimode fiber optic cable

Product Description

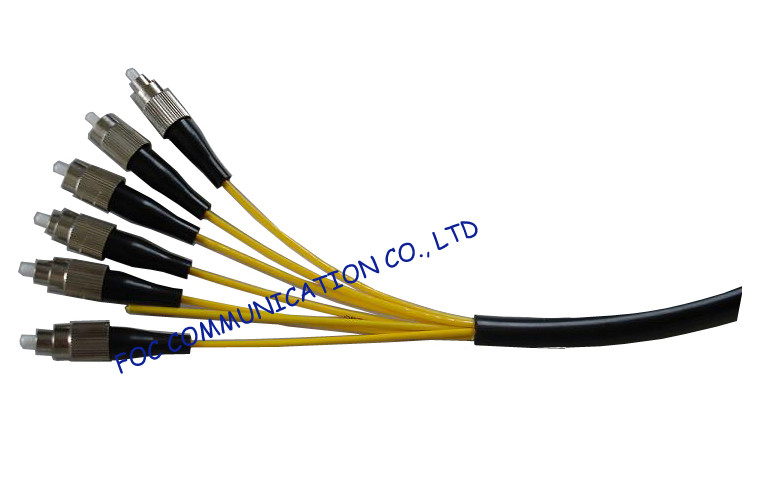

Low insertion Loss Breakout Fiber Patch Cable 6 Core With FC Connectors

Breakout fiber optic cable is the cable each simplex with buffer design, independent strength member and sheath to prevent damage from environment and mechanical stress.
Breakout fiber optic patch cord is terminated connectors on this type of breakout cable. The inner diameter is usually 2.0mm or 3.0mm and the connectors can be chosen SC, FC, ST, LC, E2000 and so on.

FOC COMMUNICATION CO., LTD  is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.

1.Low insertion loss and high return loss

2.Good duplication and interchangeability



1. Long distance trunk network

2. Metro area network

3. Access network

4. DWDM system

5. CATV optical fiber data network

6. Optical active device



1 The min bending radius: 3.8 cm

2 Operating temperature range: - 40 ~ 85 °C

3 Connector materials: Ceramic ferrule

4 Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm

5 Repeat plug: < 0.2 dB, each 500 times plug

6 Min reflection loss: 20 db

7 Max return loss:-50dB


Technical Test Data

Test item

Test condition


Temperature:85ºC/relative humidity 85%/14days/insertion loss≤0.1dB

Temperature change

Temperature: -40ºC~+75ºC/relative humidity 10%-80% /42 repetitions/14days/ insertion loss≤0.1dB

Water resistance

Temperature: 43ºC, /PH5.5,/ 7days  /insertion loss≤0.1dB


Swing 1.52mm/frequency 10Hz~55Hz,/ X,Y,Z three directions:2 hours /insertion loss≤0.1dB

Load bend

0.454kg load/100circles   insertion loss≤0.1dB

Load torsion

0.454kg load/10 circles   insertion loss ≤0.1dB

Tensility resistance

0.23kg pull (nakedness fiber),1.0kg(with shell )  insertion≤0.1dB


High 1.8m,three directions ,8 in each direction/insertion loss≤0.1dB

Reference standard

Bellcore TA-NWT-001209    insertion loss≤0.1dB

Rema   Remark: The load bend and load torsion not suitable for 0.9mm patch cord or pigtail.


Ordering Information

1 Connector types: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA

2 Ferrule End-face: PC, APC

3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4 Cable Quantity: simplex, 6core, 12core, 24core

5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm

6 Length:1, 2, 3 meter or customized length

7 Cable type: PVC, LSZH, OM3, OFNR, OFNP
