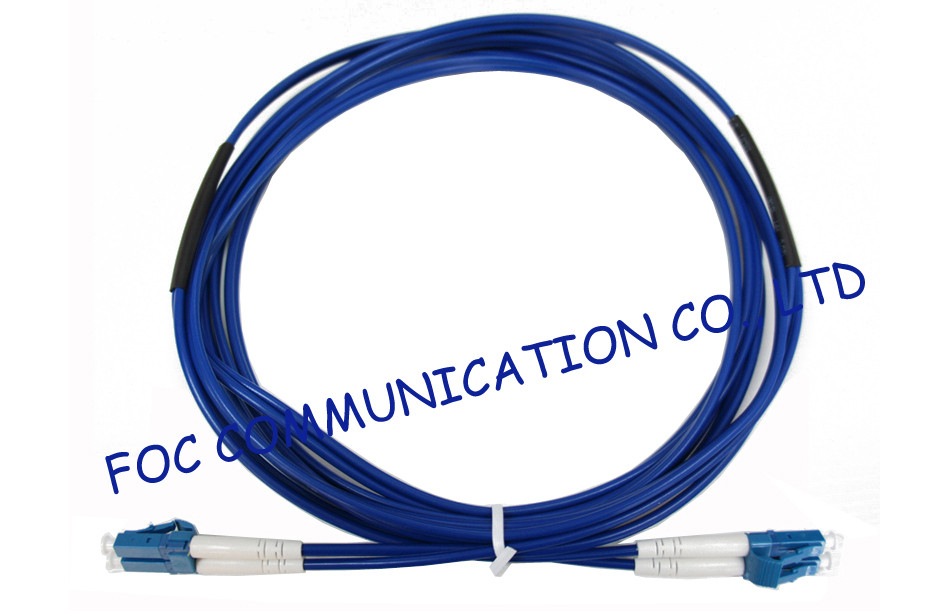

Armored Fiber Optic Patch Cord SM Duplex LSZH LC RoHS Compliant Military
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Armored LC/UPC-LC/UPC SM Duplex Armored Fiber Optical Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM, OM1, OM2, OM3, OM4 | Cable Material: | PVC, LSZH, OFNP, OFNR, Hytrel |
|---|---|---|---|
| Cable Diameter: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm | Connector: | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ |
| Cores: | Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | simplex fiber patch cord,fiber optic jumper |
||
Product Description
Armored Fiber Optic Patch Cord SM Duplex LSZH LC RoHS Compliant Military
Armored fiber optic patch cord are used in indoor applications in customer premises, central offices and in harsh environments. The patch cord provide flexible interconnection to active equipment, passive optical devices and cross-connects. Armored patch cord are constructed with a stainless steel tube over a standard patch cord surrounded by a stainless steel mesh with an outer jacket. They are terminated with standard range of connectors, all quality tested to international standards.
FOC COMMUNICATION CO., LTD is the professional manufacture of fiber optic components. We produce the whole series fiber optic patc cord, including breakout cable patch cord, ribbon fan out patch cord, indoor armored patch cord, outdoor armored patch cord, waterproof patch cord, OM3 and OM4 patch cord.
Features
Small diameter stainless steel casing pipeprotection
Against improper torsional damage
High tensile, compressive, high anti- rat bite
convenient construction, ensure the safety
No need to worry about construction, fiber damage
Conform to IEC, IEA-TIA, and Telecordia performance requirements
Easy installation
Available in different fiber types
Available in standard and custom length
RoHS compliant
Applications
Telecommunication Networks
CATV
LAN and WAN
FTTX
Broadband network
Military application
Specifications
|
Connector |
FC, SC, ST, LC |
|
|
UPC |
APC |
|
|
Insertion Loss |
≤0.3dB |
|
|
Return Loss |
≥50dB |
≥60dB |
|
Cable Outer Diameter(mm) |
￠0.9, ￠2.0, ￠3.0 |
|
|
Durability |
≤0.3dB(1000 matings) |
|
|
Interchangeability |
≤0.2dB |
|
|
Operating Temperature |
-40℃～+80℃ |
|
Ordering information
|
Interface |
Connector |
Length |
OD |
Color of jacket |
Jacket |
Fiber Type |
Cores |
|
P-PC |
FC-FC |
1M |
0.9mm |
B-Black |
P-PVC |
SM |
Simplex |
|
U-UPC |
SC-SC |
3M |
1.6mm |
Y-Yellow |
L-LSZH |
MM 50/125um |
Duplex |
|
A-APC |
LC-LC |
5M |
1.8mm |
W-White |
OFNR |
MM 62.5/125um |
4cores |
|
|
ST-ST |
10M |
2.0mm |
Customized |
OFNP |
MM OM3 |
6cores |
|
|
MU-MU |
Customized |
3.0mm |
|
Customized |
MM OM4 |
8cores |
|
|
MTRJ-MTRJ |
|
Customized |
|
|
|
12cores |
|
|
E2000-E2000 |
|
|
|
|
|
24cores |
|
|
DIN |
|
|
|
|
|
Customized |
|
|
Customized |
|
|
|
|
|
|
