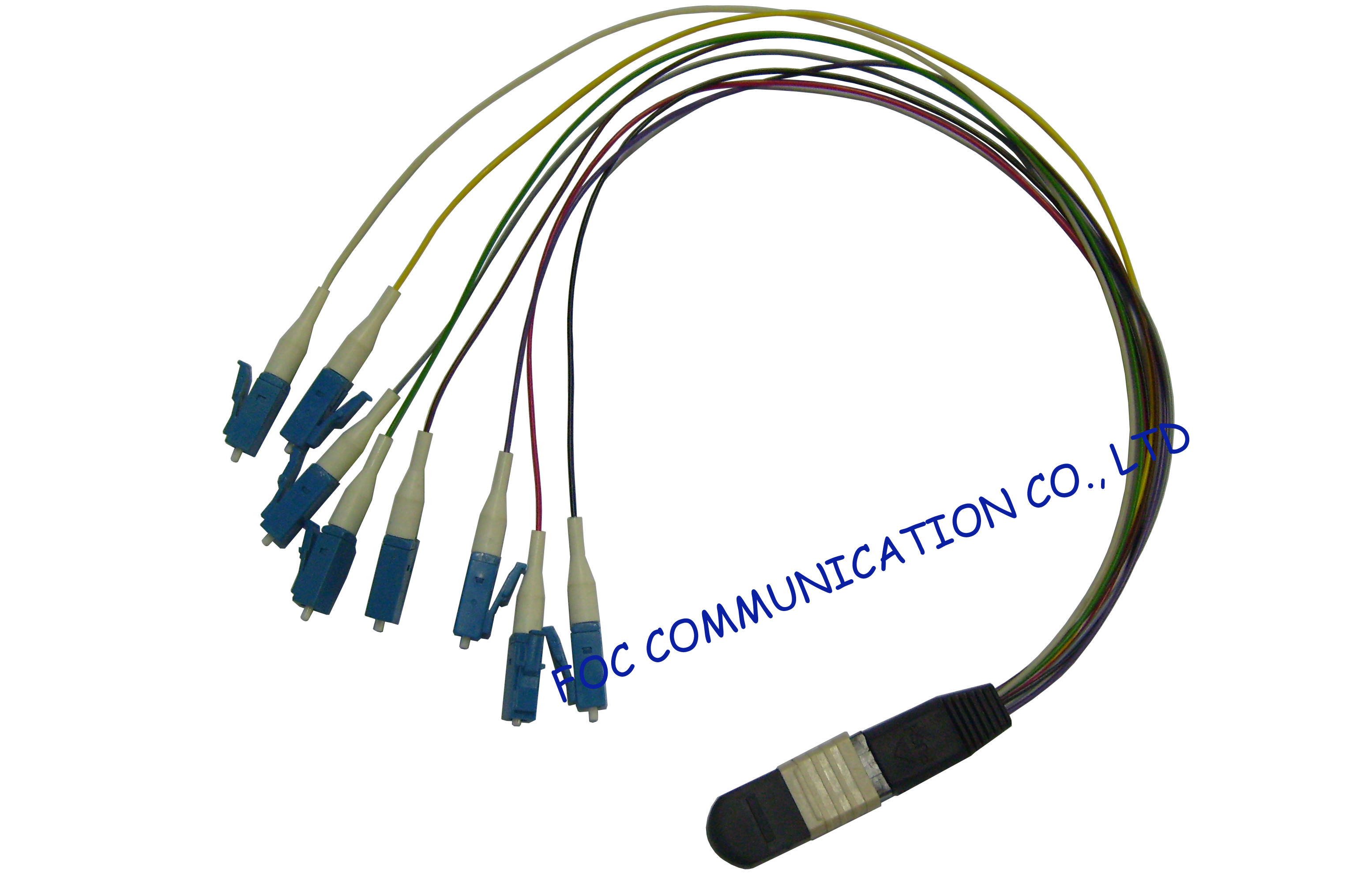

Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | MPO-LC 8Core Fiber Optic Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM, OM1, OM2, OM3, OM4 | Cable Material: | PVC, LSZH, OFNP, OFNR, Hytrel |
|---|---|---|---|
| Cable Diameter: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm | Connector: | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ |
| Cores: | Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | multimode fiber optic cable,fiber optic jumper |
||
Product Description
Multi Core Duplex Optical Fiber Patch Cord , Passive / Active Optic Fiber Optic Cable
We supply fiber optic patch cord, fiber optic patch cable, LC,SC/APC,ST, E2000/APC, MU, VF45, FC, MT-RJ, SC, MPO, Volition, MTP, FC/APC, ST/APC, LC/APC, E2000, DIN, D4, SMA, Escon, FDDI, RoHS compliant, LSZH, Riser, Plenum, OFNR, OFNP, simplex, duplex, single mode, 9/125, SM, multimode, MM, 50/125, 62.5/125.
Features
Low insertion Loss and low return loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-1435-CORE compliant
Applications
CATV, Multimedia
Telecommunication Networks
Data processing networks
Premise installations
Optical switch interframe connection
Specifications
|
|
Single Mode |
Multimode |
|
Insertion Loss |
Typical≤0.5dB,Maximum≤0.75dB |
Typical≤0.5dB,Maximum≤0.75dB |
|
Return Loss |
≥50dB |
≥30dB |
|
Operating Temperature |
-20℃～70℃ |
|
|
Durability |
≤0.2dB typical changes, 1000matings |
|
|
Interchangeability |
≤0.2dB |
|
|
Tensile strength |
>70N |
|
|
Repeatability |
≤0.1dB |
|
Ordering Information
|
Connector Type |
Housing Color |
Boot Type |
Cores |
Fiber Type |
Length |
|
Male |
Beige |
Bare fiber short boot |
4cores |
9/125um(SM) |
Customized |
|
Female |
Black |
Ribbon Cable |
8cores |
50/125um(MM) |
|
|
|
Green |
Bare fiber long boot |
12cores |
62.5/125um(MM) |
|
|
|
Yellow |
90 degree boot |
16cores |
OM3 |
|
|
|
|
|
24cores |
|
|
Advantages
1. Guaranteed high quality products
2. Fast delivery speed
3. Safety Shipping
4. Quick Response within 24hours
