High Presion Ferrule Fiber Optical Patch Cord , SM Simplex SC-SC

China High Presion Ferrule Fiber Optical Patch Cord , SM Simplex SC-SC supplier

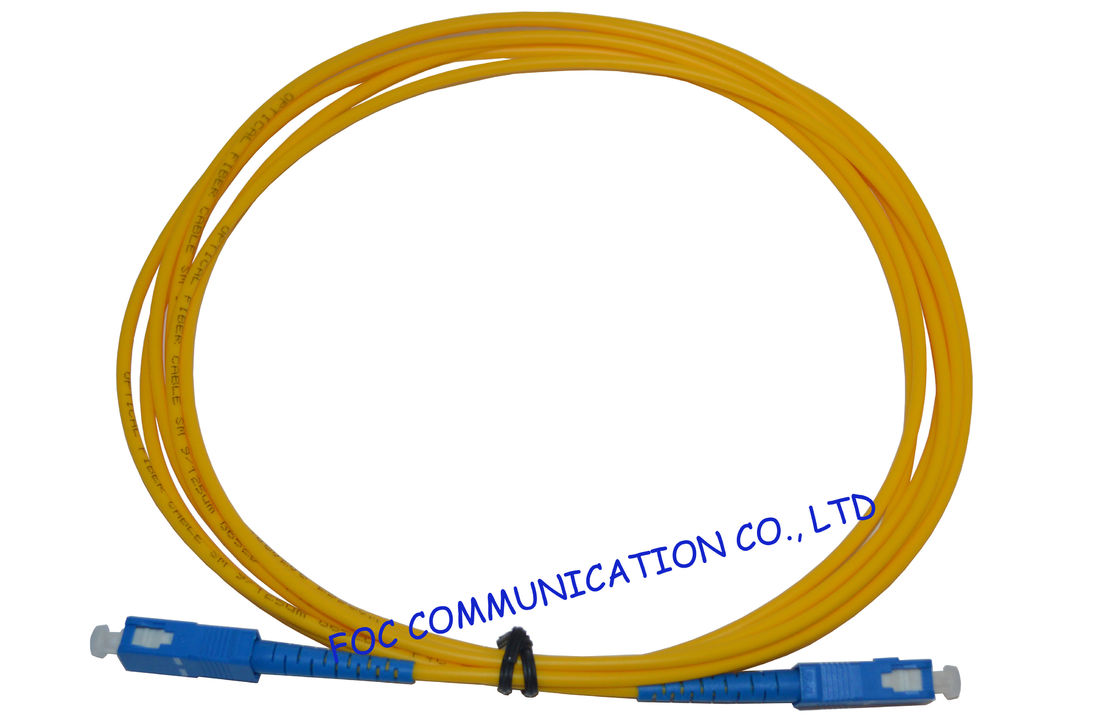

Large Image :  High Presion Ferrule Fiber Optical Patch Cord , SM Simplex SC-SC

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: SC/UPC-SC/UPC SM Simplex Fiber Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Contact Now
Detailed Product Description
Fiber Type: SM, OM1, OM2, OM3, OM4 Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request

High Presion Ferrule Fiber Optical Patch Cord , SM Simplex SC-SC

SC Fiber Optic Patch Cords can be provided SC/UPC type, SC/APC type and other hybrid types.

The SC connector is becoming increasingly popular in single mode fiber optic telecom and analog CATV, field deployed links. The high precision, ceramic ferrule construction is optimal for aligning single9mode optical fibers. The connectors’ outer square profile combined with its push pull coupling mechanism, allow for greater connector packaging density in instruments and patch panels. The keyed outer body prevents rotational sensitivity and fiber endface damage. Multimode versions of this connector are also available. The typical insertion loss of the SC connector is around 0.3 dB.



Technical parameter

Characteristic SM, MM
Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm) 0.9,2.0,3.0
Polishing grade SM PC MM PC UPC APC
Insertion loss ≤0.3dB ≤0.4dB ≤0.2dB ≤0.3dB
Return loss ≥40dB ≥50dB ≥65dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Operation temperature -40°C~+85°C



Our advantages

Grade A ceramic ferrule. Use error smaller of grade A ceramic ferrule, provide additional of insertion loss and return loss. Avoid falling transmission performance and the damage of the light emitter.
Large scale production. Enough production capacity, 5 standardization management, promise the quality and soonest delivery, guarantee the customers' request.

Advanced grinding equipment. Advanced grinding equipment make sure the concentricity of the fiber, fiber convex concave, ceramic surface curvature radius and other technical parameters meet the prescribed standards.

We provide best pre-sales and after sales service.



Product packing details

Products Packing
Inner packing 1piece per plastic bag
Min order 100 pieces
100 pieces weight 2-3kg
Outer packing Carton box


Payment terms
Accepted small order,OEM,etc.
Ordinary delivery time: 3-7 days, according to order quantity.
Ready to shipping by sea ,DHL , Fedex, EMS, as soon as we receive payment
Accept T/T 100% advance. Western Union, PayPal.
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility
