Gigabit Ethernet Single mode Fiber Optic Patch Cord LC / APC For FTTH Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | LC/APC-LC/APC SM Simplex Fiber Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM, OM1, OM2, OM3, OM4 | Cable Material: | PVC, LSZH, OFNP, OFNR, Hytrel |
|---|---|---|---|
| Cable Diameter: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm | Connector: | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ |
| Cores: | Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | simplex fiber patch cord,multimode fiber optic cable |
||
Product Description

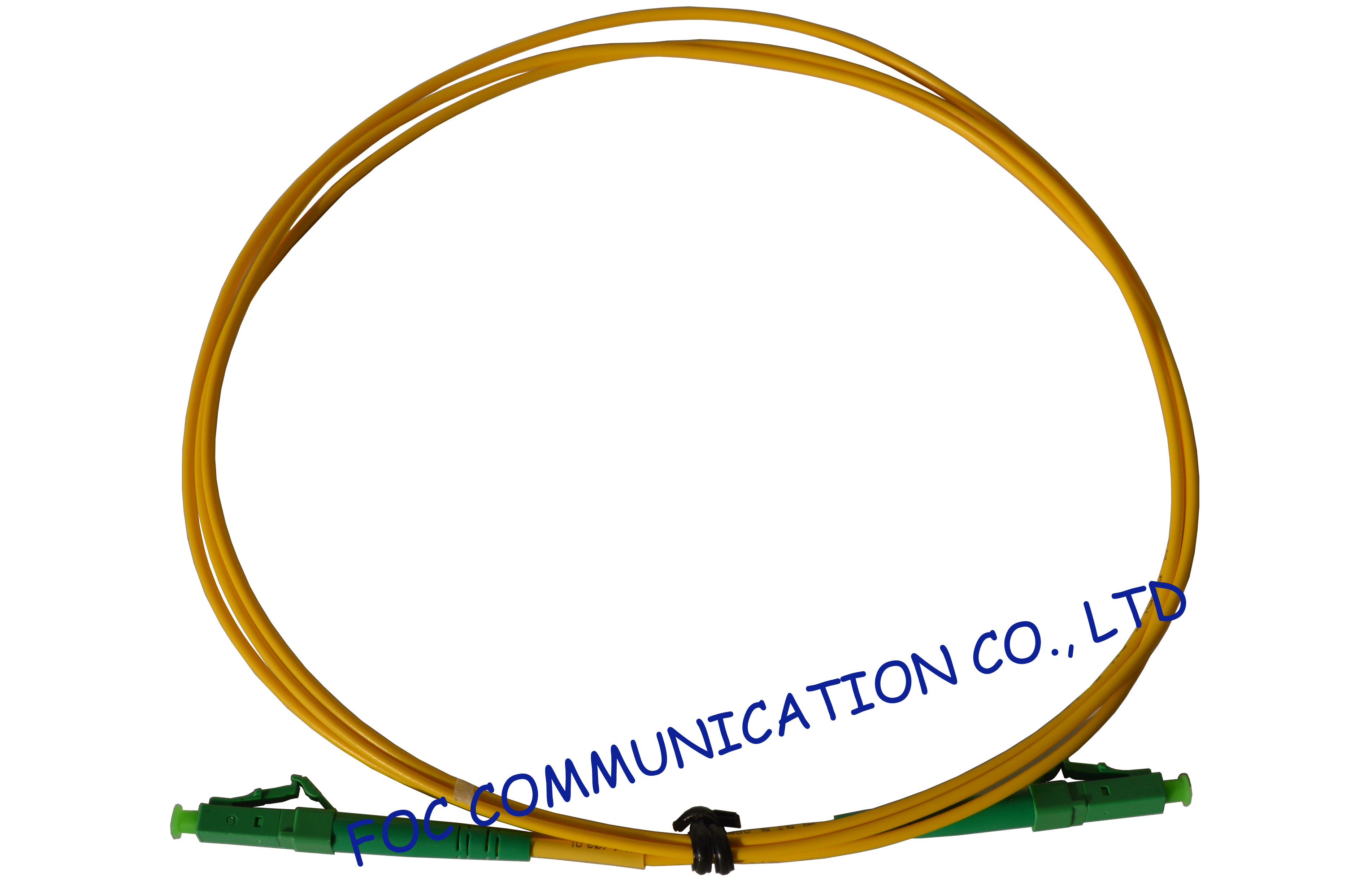

Gigabit Ethernet Singlemode Fiber Optic Patch Cord LC / APC For FTTH Systems
LC is the fiber optic connector invented by Lucent and it is small form factor connector suit for dense installations. LC has single mode and multimode versions, simplex or duplex, PC, UPC or APC. LC features compact, pull-proof design and RJ-45 style interface.
The LC-LC optical fiber patch cord are fully compatible with industrial standards; they are good prices, fast delivery and good looking and packing.
Our LC optical fiber cord are compliant to IEC and EIA/TIA standards, they are compatible to use with equipment from other companies. We supply the LC fiber optic connectors, jumper cables, adapters, LC attenuators and related LC fiber optic components.
Feature
Small diameter stainless steel casing pipeprotection
Against improper torsional damage
High tensile, compressive, high anti- rat bite
convenient construction, ensure the safety
No need to worry about construction, fiber damage
Application
FTTH application
Premise installations
Data processing networks
Wide Area Networks (WANs)
Telecommunication networks
Industrial ,mechanical and military
Our Advantages
Professional manufacturer: Small MOQ, free samples are available.
Quality assurance: Stable high quality
Customers solutions: Quick
Win-Win Price: Save much costs, bring more benefits for customers
OEM order is welcome, Customized Logo is available.
The goods will be sent by International express, such as DHL/Fedex. It takes 3~7 days
Specification
| Model NO. | Fiber Optic Patch Cord |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Simplex/Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) |
| Return Loss (For Singlemode) | UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) |
| Repeatability | ±0.1dB |
| Operating Temperature | -40°C~+85°C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm |
Rema
Ord
Tag: Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
