Chemical Resistant Fiber Optic Patch Cable ODVA - MPO 2 Cores Outdoor FTTA Usage
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | ODVA Patch Cord MPO Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | G.652D, G.657A, G.655, SM Or MM | Cable Material: | PVC, LSZH, OFNP, OFNR, TPU |
|---|---|---|---|
| Cable Diameter: | 2.0mm, 0.9mm | Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO |
| Cores: | 12 Core | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| Armored: | Non-armored, Armored | Quality Control: | 100% Test Before Shipping |
| High Light: | fiber optic jumper,multimode fiber optic cable |
||
Product Description

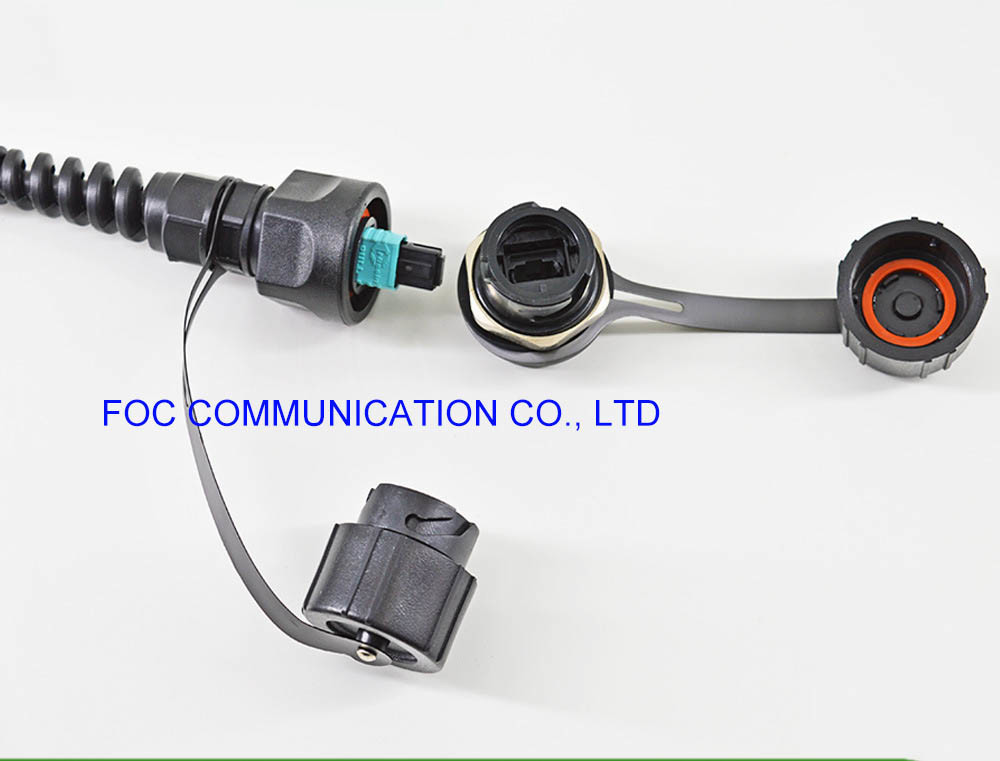

ODVA - MPO Fiber Optic Patch Cable 2 Cores Outdoor For FTTA Use
ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling these patch cables are always sealed with rugged fiber terminal junction boxes to meet the requirements of more antennas on a wireless tower. With the development of distributed antenna ODVA systems(DAS), connectors have became a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
Outdoor fiber optic assemblies ODVA BBU RRU is for CPRI application , that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE), and Remote Radio Units to the FTTA connectivity.
FOC COMMUNICATION CO., LTD offers ODVA-LC patch cords, ODVA-SC patch cord, ODVA-MPO patch cords as per customer requests, length from 1Meter to 500Meters.
Specifications
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for harsh environment
Wide range of operational temperature for outside plant -40oC/+70
Wide range of cables to be used, 5-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits
Chemical Resistance
Intermatable to other Industrial LC adaptor per IEC 61076-3-106
Simple assembly requiring no special tools
Durable mechanical mating, minimum of 500 matings
Technical Data
| Connector | End A | DLC (duplex LC), or SC, MPO, MTP | |||
| End B | DLC (duplex LC), or SC, MPO, MTP | ||||
| Fiber Core | 2, 4…12 | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 0.2 | 0.3 | |||
| Return Loss(Min.dB) | 55 | 60 | 35 | ||
| Mating times | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
