2 Cores FTTA Armored Fiber Optic Cable Patch Cord Assemblies ODVA / SC- ODVA / SC
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | ODVA Patc Cord SC Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Quality Control: | 100% Test Before Shipping | Fiber Type: | G.652D, G.657A, G.655, SM Or MM |
|---|---|---|---|
| Cable Material: | PVC, LSZH, OFNP, OFNR, TPU | Armored: | Non-armored, Armored |
| Cable Diameter: | 2.0mm, 0.9mm | Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO |
| Cores: | Simplex, Duplex | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | fiber optic jumper,multimode fiber optic cable |
||
Product Description

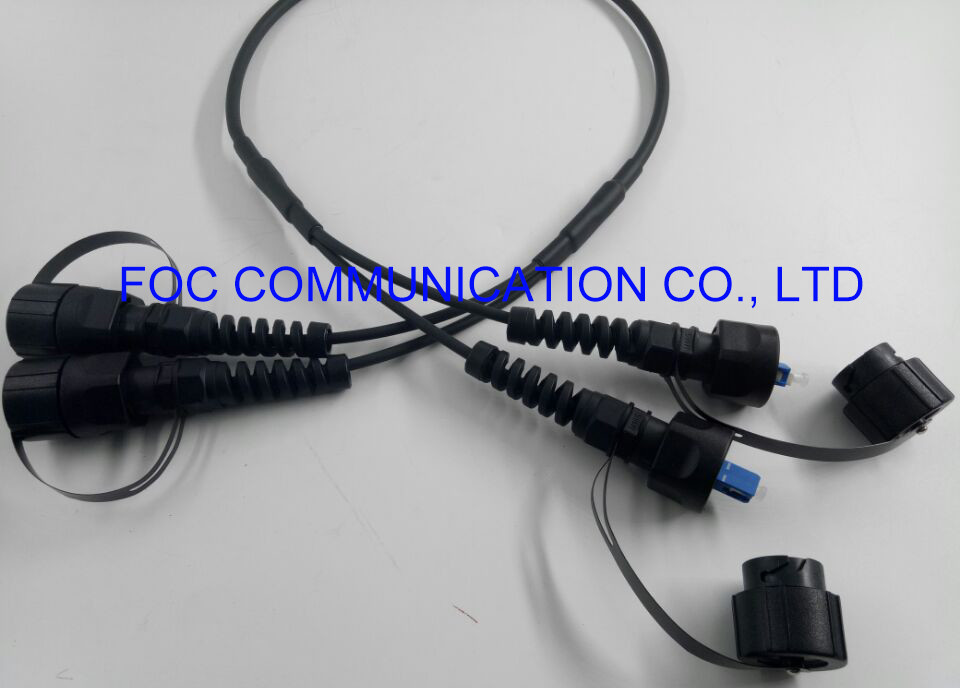

Armored Cable Assemblies ODVA / SC- ODVA / SC 2 Core For FTTA Use
ODVA connector is next generation connectors for wireless base station application (WCDMA/TD-SCDMA/CDMA200/Wi-MAX/GSM) that can meet the requirements of FTTA (fiber to the antenna). We developed ODVA connector's base on special connectors craft, our ODVA connector's interface can be compatible with the mainstream of the current global supplier of ODVA connector.
ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling these patch cables are always sealed with rugged fiber terminal junction boxes to meet the requirements of more antennas on a wireless tower. With the development of distributed antenna ODVA systems(DAS), connectors have became a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
FOC COMMUNICATION CO., LTD offers ODVA-LC patch cords, ODVA-SC patch cord, ODVA-MPO patch cords as per customer requests, length from 1Meter to 500Meters.
Features
Low insertion loss.
IP67 water, dustproof and corrosion resistant
The material of the jumper cables are all-weather and UV-resistant.
Cost effective solution for in house termination.
Wide range of operational temperature for outside plant -40 to +85°C
Different cable diameter can be available
Mechanical performance:IEC61754-20
RoHS and REACH materials compliant.
Specifications
| Item | Type | Parameter |
| Insertion Loss | SM | ≤0.30dB |
| MM | ≤0.30dB | |
| Return Loss | SM | ≥50dB |
| MM | ≥35dB | |
| Repetition Test | Additional Loss≤0.1dB | |
| Temperature Stability(-40℃～85℃) | Additional Loss≤0.2dB, | |
| Free fall resistance | 500 falls onto concrete from 1.2M height | |
| Bump resistance | 4000 bumps @ 40g acceleration | |
| Tensile Strength | Tensile of 1500N, cable dependent | |
| Operating temperature | -40 to +70°C | |
| Storage temperature | -55 to +85°C | |
Optical fiber assemblies, outdoor cable assemblies, optical fiber patch cords, FTTX patch cord, FTTA patch cords
