Outdoor Multimode Fiber Patch Cord 2 Cores ODVA - LC Fiber Optic Assemblies
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | ODVA Patc Cord LC Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | G.652D, G.657A, G.655, SM Or MM | Cable Material: | PVC, LSZH, OFNP, OFNR, TPU |
|---|---|---|---|
| Cable Diameter: | 2.0mm, 0.9mm | Connector: | SC/APC, SC/UPC, LC/APC, LC/UPC, MPO |
| Cores: | Simplex, Duplex | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| Armored: | Non-armored, Armored | Quality Control: | 100% Test Before Shipping |
| Highlight: | fiber optic jumper,multimode fiber optic cable |
||
Product Description

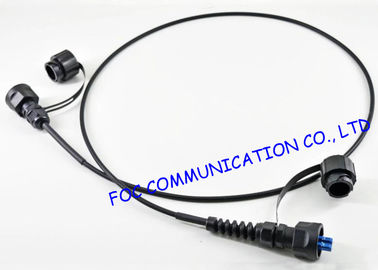

ODVA - LC Fiber Optic Assemblies 2 Cores Outdoor For FTTA Use
FOC COMMUNICATION CO., LTD offers ODVA-LC patch cords, ODVA-SC patch cord, ODVA-MPO patch cords as per customer requests, length from 1Meter to 500Meters.
Outdoor fiber optic assemblies ODVA BBU RRU is for CPRI application , that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE), and Remote Radio Units to the FTTA connectivity.
ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling these patch cables are always sealed with rugged fiber terminal junction boxes to meet the requirements of more antennas on a wireless tower. With the development of distributed antenna ODVA systems(DAS), connectors have became a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
Specifications
Meet IP67 Standards
No tools required
Bayonet style locking mechanical
Designed for harsh environment applications
All fiber types and cable types are available
Exceptional optical performance in a high density LC standard compliant connector.
Integrated caps on the connectors and shutters in the couplers provide both laser eye safety and end face protection during mating/demating
Ease of use in all mating situations
Technical Data
| Connector | End A | DLC (duplex LC), or SC, MPO, MTP | |||
| End B | DLC (duplex LC), or SC, MPO, MTP | ||||
| Fiber Core | 2, 4…12 | ||||
| Mode | Singlemode | Multimode | |||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | |||
| Polishment | UPC | APC | UPC | ||
| Insertion Loss(Max.dB) | 0.2 | 0.3 | |||
| Return Loss(Min.dB) | 55 | 60 | 35 | ||
| Mating times | 500 Min | ||||
| Durability(Max.dB) | 0.2 | ||||
| Reaptability(Max.dB) | 0.5 | ||||
| Operating Temperature(℃) | -40~+85 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
