G.652D SM Fiber Optic Patch Cord With OFNP Cable SC FC ST LC
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
Model Number: | SM Fiber Patch Cord SC LC ST FC |
Payment & Shipping Terms:
Minimum Order Quantity: | 10PCS |
---|---|
Packaging Details: | 1PCS/PE Bag |
Delivery Time: | 3-5days |
Detail Information |
|||
Fiber Type: | SM | Cable Material: | LSZH |
---|---|---|---|
Cable Diameter: | 3.0mm | Connector: | SC/APC, LC/UPC |
Cores: | Duplex | Length: | 5M |
High Light: | simplex fiber patch cord,multimode fiber optic cable |
Product Description

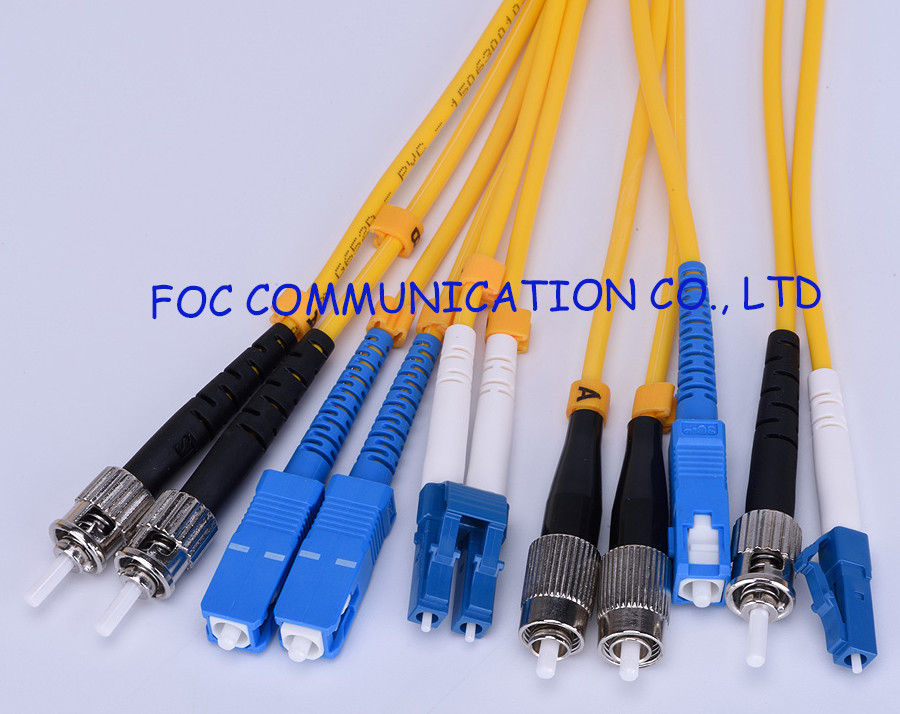

G.652D SM Fiber Optic Patch Cord With OFNP Cable SC FC ST LC
G.652D SM patch cable with OFNP cable is used to connect the device to another for signal routing. It is composed of a fiber optic cable assembled with various connectors on both ends. We FOC COMMUNICATION CO., LTD provide all types of fiber optic patch cords including single mode, multimode, simplex, duplex, multi core patch cords, armored patch cords and waterproof patch cords. The main connectors are FC, SC, LC, ST, MU, MTRJ, E2000, MPO, MTP and so on.
Key Features
SC/SC/ST/LC Connectors
Single mode duplex fiber optic cable
Micron: 9/125um
High precision ceramic fiber optic ferrule
100% optically tested to ensure high performance
Cable color yellow
Specifications
Item |
Specifications |
IL(insertion loss) |
<0.3dB |
RL(return loss) |
PC≥50dB, APC≥60dB |
Interchangeability |
≤0.2dB |
Repeatability |
≤0.1dB(1000times) |
Vibration |
≤0.1dB(550Hz, 1.5mm) |
Operating Temperature |
-40~80℃ |
Ordering information
1.Connector one, LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO,
Connector two LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2.Ferrule interface type: UPC,APC
3.Fiber type; singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4.Fiber cable diameter(mm):Φ0.9, Φ2.0 ,Φ3.0
5.Cable length: Customized length
Fiber Optic Patchkabel, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
