ODVA / SC Fiber Optic Adapter IP67 Waterproof FTTA Use UV Resistent

China ODVA / SC Fiber Optic Adapter IP67 Waterproof FTTA Use UV Resistent supplier

Large Image :  ODVA / SC Fiber Optic Adapter IP67 Waterproof FTTA Use UV Resistent

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: ODVA / SC Adapter

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Contact Now
Detailed Product Description
Fiber Type: G.652D, G.657A Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 2.0mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request

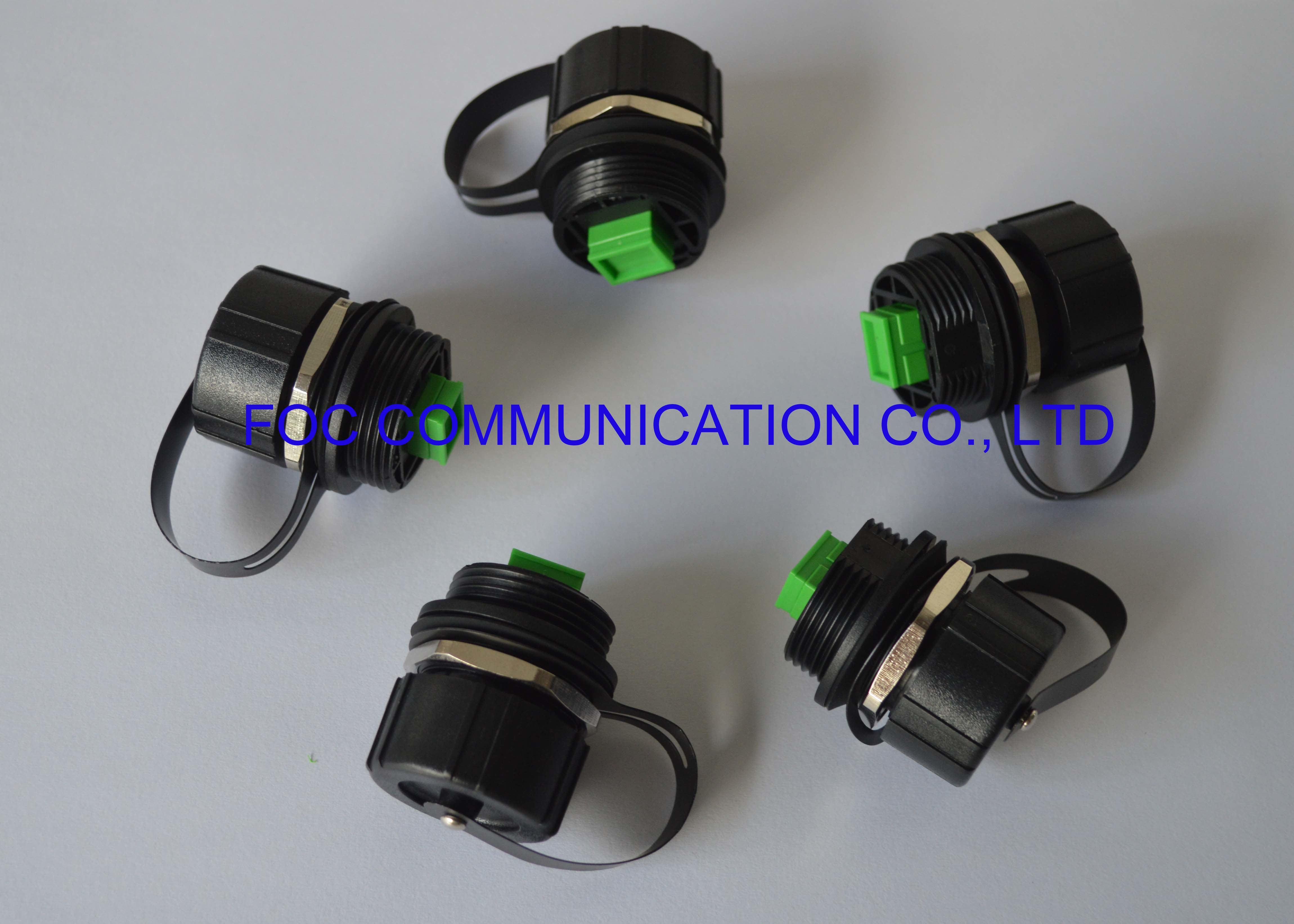

ODVA / SC Fiber Optic Adapter IP67 Waterproof FTTA Use UV Resistent



The ODVA-SC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications. The ODVA-SC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense.



ODVA fiber optic cables are IP67-rated rugged cables, they are used in FTTA, industrial, military, and many similar indoor/ outdoor harsh environments. ODVA SC fiber patch cables are duplex type cables, the connector features its spring loaded metal protection shutter and high precision fiber ferrules, ODVA SC is available in both single mode and multimode versions with custom cables.


Features
- Rugged IP67 rated enclosure
- Exceptional optical performance in a high density LC standard compliant connector.

- Bayonet-style self-aligning, keyed housing
​- Ease of use in all mating situations​

- Integrated caps on the connectors and shutters in the couplers provide both laser eye safety and end face protection during mating/demating

Applications
- Harsh environments where chemicals, corrosive gases and liquids are and common places
- Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
- Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
- Mobile routers and internet hardware



Connector Parameters

Item Type Parameter
Insertion Loss SM ≤0.30dB
MM ≤0.30dB
Return Loss SM ≥50dB
MM ≥35dB
Repetition Test Additional Loss≤0.1dB
Temperature Stability(-40℃~85℃) Additional Loss≤0.2dB,
Free fall resistance 500 falls onto concrete from 1.2M height
Bump resistance 4000 bumps @ 40g acceleration
Tensile Strength Tensile of 1500N, cable dependent
Operating temperature -40 to +70°C
Storage temperature -55 to +85°C


ODVA / SC Fiber Optic Adapter IP67 Waterproof FTTA Use UV Resistent

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers, ODVA, IP67
