Rugged Optical Fiber Patch Cord SC - SC G.657A Fiber Optic Jumper Cables
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Armored SC/UPC-SC/UPC SM Duplex Fiber Optical Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM, G.657A | Cable Material: | LSZH |
|---|---|---|---|
| Cable Diameter: | 3.0mm | Connector: | LC/UPC |
| Cores: | Duplex | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | multimode fiber optic cable,fiber optic jumper |
||
Product Description

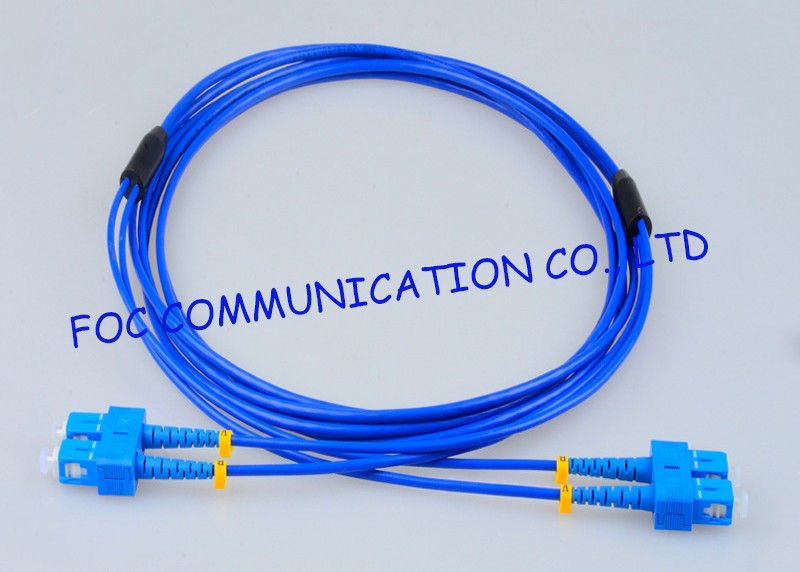

Rugged Optical Fiber Patch Cable SC - SC G.657A Bending Insensitive
The armored cables feature an exclusive mechanism comprised of a steel metal tube that is locked into position by overlapping links. This composition results in an unmatched rugged, but light weight cable that provides maximum flexibility.
Armored fiber optic assemblies available in a variety of configurations including OS2, OM1, OM2, OM3, and OM4 along with common connectors such as the LC, SC, FC, and ST these fiber cables are the perfect addition to any fiber network in hazardous environments. MTP, MTP Elite, and MPO also available in straight and breakout permutations.
These rugged fiber optic assemblies allow for optical fiber to be installed even in the most hazardous of areas including environments with excessive dust, oil, gas, moisture, or even damage causing rodents. These steel jackets provide unparalleled protection against physical damage without sacrificing flexibility or functionality within fiber networks.
Features
Prevent optic fiber from destroy by harsh environment and improper operation
SC-SC armored fiber optic patch cord
Ideal for 10G/100G networks
Without damage by construction
High resistance of tensile strength, pressure, rodent bite
Ensure transmission power and avoid additional attenuation
Application
Harsh environments, where a traditional fiber optic patch cable may fail
Applications requiring moisture, weather resistance
Telecommunications and data trunk
Long haul networking
Building interconnections
Specifications
| Connector Type | SC, LC, FC, ST, MTRJ | ||
| Endface Type(nm) | PC | UPC | APC |
| Insertion Loss(dB) | ≤0.30 | ≤0.30 | ≤0.30 |
| Repeatability(dB) | ≤0.10 | ||
| Exchangeability(dB) | ≤0.20 | ||
| Return Loss(dB) | ≥45 | ≥50 | ≥60 |
| Fiber Type | SM, MM | ||
| Operation Temperature(℃) | -25℃~ +70℃ | ||
| Storage Temperature(℃) | -40℃~ +85℃ | ||
| Durability(time) | >1000 times | ||
| Industry Standard | Telcordia GR-326-CORE | ||
