High Resistance Fiber Optic Patch Cord Armored LC - LC Duplex G.657A
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
| Model Number: | Armored LC/UPC-LC/UPC SM Duplex Armored Fiber Optical Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
|
Detail Information |
|||
| Fiber Type: | SM, G.657A | Cable Material: | LSZH |
|---|---|---|---|
| Cable Diameter: | 3.0mm | Connector: | LC/UPC |
| Cores: | Duplex | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
| High Light: | simplex fiber patch cord,multimode fiber optic cable |
||
Product Description

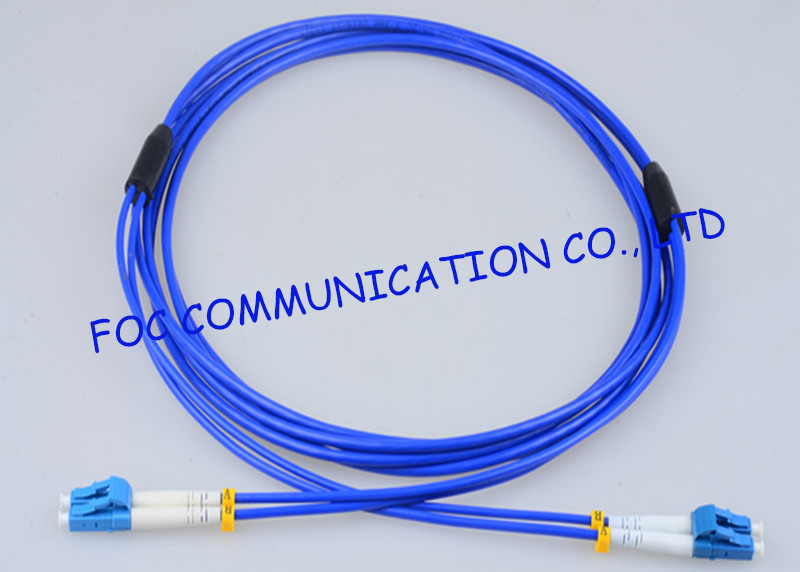

Fiber Optic Patch Cord Armored LC - LC Duplex G.657A High Resistance
Manufactured using Premium OS2 fiber, Light duty Armored Fiber Patch Cable is specifically designed for light to medium duty indoor applications. Its rugged shell with steel and kevlar is 10 times stronger than regular Fiber Optic Cable and has a 40% higher rated range of operating temperature. Custom configurations available. It is ROHS compliant according to ROHS2011/65/EU and come with a 10 year warranty.
Armored patch cables have a metal sheathing housed in a robust outer jacket. Providing greater protection for sensitive optical fiber than standard cables, it enables installation in hazardous areas including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Features
LC-LC armored fiber optic patch cord
Ideal for 10G/100G networks
Ensure transmission power and avoid additional attenuation
Prevent optic fiber from destroy by harsh environment and improper operation
Without damage by construction
High resistance of tensile strength, pressure, rodent bite
Application
Telecommunications and data trunk
Long haul networking
Applications requiring moisture, weather resistance
Building interconnections
Harsh environments, where a traditional fiber optic patch cable may fail
Specifications
| Connector Type | SC, LC, FC, ST, MTRJ | ||
| Endface Type(nm) | PC | UPC | APC |
| Insertion Loss(dB) | ≤0.30 | ≤0.30 | ≤0.30 |
| Repeatability(dB) | ≤0.10 | ||
| Exchangeability(dB) | ≤0.20 | ||
| Return Loss(dB) | ≥45 | ≥50 | ≥60 |
| Fiber Type | SM, MM | ||
| Operation Temperature(℃) | -25℃~ +70℃ | ||
| Storage Temperature(℃) | -40℃~ +85℃ | ||
| Durability(time) | >1000 times | ||
| Industry Standard | Telcordia GR-326-CORE | ||
