LC multimode fiber optic cable , optical fiber patch cord For Harsh Environment

China LC multimode fiber optic cable , optical fiber patch cord For Harsh Environment supplier

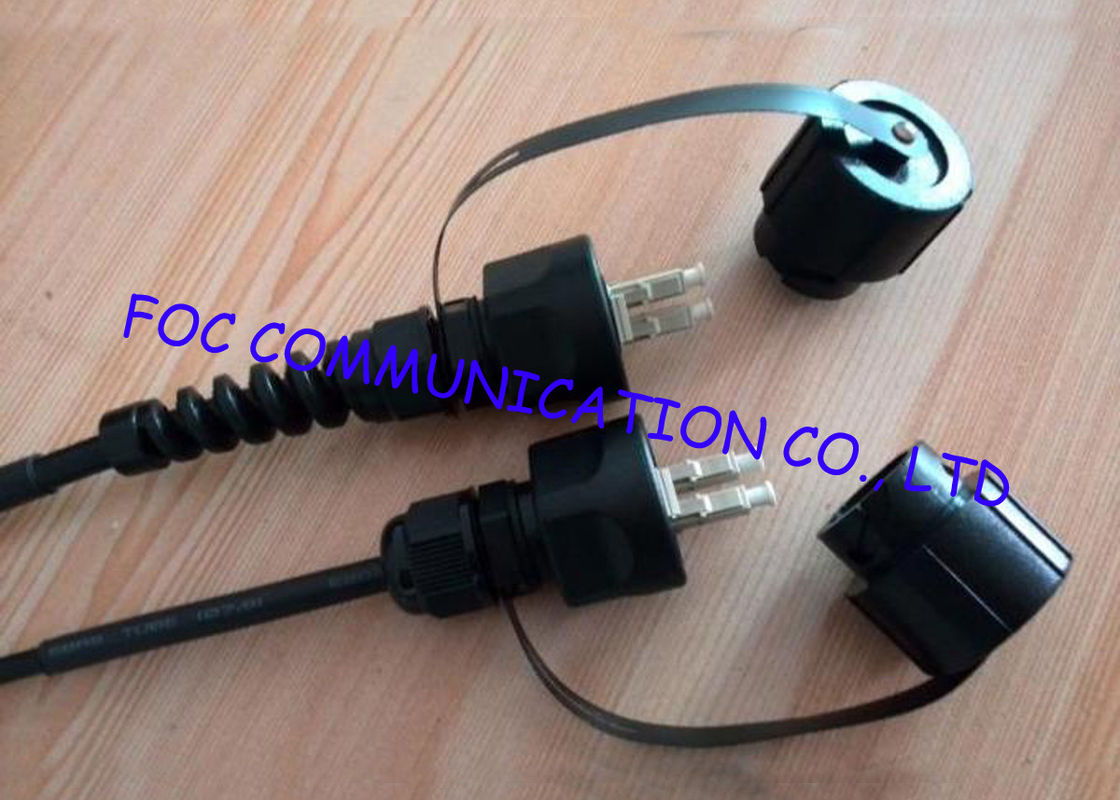

Large Image :  LC multimode fiber optic cable , optical fiber patch cord For Harsh Environment

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: ODVA Connector LC Type

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Contact Now
Detailed Product Description
Fiber Type: G.652D, G.657A Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 2.0mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request



LC multimode fiber optic cable , optical fiber patch cord For Harsh Environment



FOC COMMUNICATION CO., LTD provides ODVA SC patch cords and ODVA LC duplex fiber optic jumpers.



IP67 LC Duplex Fiber Optic Connectors ensure a continuously secure connection and are dustproof and weatherproof, with a silicone ring seal that makes a watertight connection to the panel. IP67 LC Duplex Fiber Optic Connectors are ideal for communications, security, and surveillance equipment applications, as well as being ODVA-compliant for harsh environment applications such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber to the Antenna (FTTA) connectivity.



Features

IP67 rated to ensure protection from dust and water immersion
LC connector qualified to Telcordia GR-326 and TIA/EIA 568B.3

Easy, reliable and cost-effective installation

The connector of side-A is duplex LC, and side-B can be LC, SC or FC

Thread structure guarantees the trusted connection
Temperature range of -40°C to +85°C
Bayonet-style mechanical lock
Flame retardant materials per UL 94 V-0



Applications

3G commercial trial network, high-speed local area networks

3G, 4G, and WIMAX base stations

Fiber optic distributed zoom technology
Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
Mobile routers and internet hardware
